Platform

Platform in satellite scenario

Since R2024a

expand all in page

    Description

    A Platform object defines a platform in a satellite scenario. A platform can be a moving site, aircraft, or a ship.

    Creation

    You can create Platform objects using the platform function of the satelliteScenario object.

    Properties

    expand all

    You can set this property only when calling the platform function. After you call platform function, this property is read-only.

    Platform name, specified as a comma-separated pair consisting of 'Name' and a string scalar, string vector, character vector, or a cell array of character vectors.

    • String scalar or character vector when you add only one platform.

    • String scalar or character vector when you add multiple platforms and all platforms have the same name.

    • String vector or cell array of character vectors when you add multiple platforms and each platform has a unique name. The number of elements in the string vector or cell array of character vectors must equal the number of platforms.

    Data Types: string

    This property is set internally by the simulator and is read-only.

    Platform ID assigned by the simulator, specified as a positive scalar.

    You can set this property only when calling the conicalSensor. After you call the conicalSensor function, this property is read-only.

    Conical sensors attached to the Platform, specified as a row vector of conical sensors.

    You can set this property only when calling gimbal. After you call gimbal, this property is read-only.

    Gimbals attached to the Platform, specified as the comma-separated pair consisting of 'Gimbals' and a row vector of Gimbal objects.

    You can set this property only when calling access. After you call access, this property is read-only.

    Access analysis objects, specified as a row vector of Access objects.

    You can set this property only when calling eclipse. After you call access, this property is read-only.

    Eclipse analysis object, specified as an empty or a scalar Eclipse object.

    You can set this property only when calling coordinateAxes. After you call coordinateAxes, this property is read-only.

    Coordinate axes triad graphic object, specified as CoordinateAxes object.

    Path visualization for a platform, specified as a Path (Satellite Communications Toolbox) object. Only these object properties are relevant for this function.

    Color of the path, specified as an RGB triplet, hexadecimal color code, a color name, or a short name.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    "red""r"[1 0 0]"#FF0000"

    Sample of the color red

    "green""g"[0 1 0]"#00FF00"

    Sample of the color green

    "blue""b"[0 0 1]"#0000FF"

    Sample of the color blue

    "cyan" "c"[0 1 1]"#00FFFF"

    Sample of the color cyan

    "magenta""m"[1 0 1]"#FF00FF"

    Sample of the color magenta

    "yellow""y"[1 1 0]"#FFFF00"

    Sample of the color yellow

    "black""k"[0 0 0]"#000000"

    Sample of the color black

    "white""w"[1 1 1]"#FFFFFF"

    Sample of the color white

    "none"Not applicableNot applicableNot applicableNo color

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410]"#0072BD"

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980]"#D95319"

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250]"#EDB120"

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560]"#7E2F8E"

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880]"#77AC30"

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330]"#4DBEEE"

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840]"#A2142F"

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Example: 'blue'

    Example: [0 0 1]

    Example: '#0000FF'

    Visual width of the path in pixels, specified as a scalar in the range (0, 10).

    The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

    Visibility mode of the path graphic in the satellite scenario viewer, specified as one of these values.

    • 'inherit' — Visibility of the path graphic matches that of the parent platform.

    • 'manual' — Visibility of the path graphic is not inherited and is independent of the parent platform.

    Note

    Path graphic is always invisible in 2-D viewers.

    Data Types: char | string

    Color of the marker, specified as a comma-separated pair consisting of 'MarkerColor' and either an RGB triplet or a string or character vector of a color name.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    "red" "r" [1 0 0] "#FF0000"

    Sample of the color red

    "green" "g" [0 1 0] "#00FF00"

    Sample of the color green

    "blue" "b" [0 0 1] "#0000FF"

    Sample of the color blue

    "cyan" "c" [0 1 1] "#00FFFF"

    Sample of the color cyan

    "magenta" "m" [1 0 1] "#FF00FF"

    Sample of the color magenta

    "yellow" "y" [1 1 0] "#FFFF00"

    Sample of the color yellow

    "black" "k" [0 0 0] "#000000"

    Sample of the color black

    "white" "w" [1 1 1] "#FFFFFF"

    Sample of the color white

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410] "#0072BD"

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980] "#D95319"

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250] "#EDB120"

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560] "#7E2F8E"

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880] "#77AC30"

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330] "#4DBEEE"

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840] "#A2142F"

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Size of the marker, specified as a comma-separated pair consisting of 'MarkerSize' and a real positive scalar less than 30. The unit is in pixels.

    State of Platform label visibility, specified as a comma-separated pair consisting of 'ShowLabel' and numerical or logical value of 1 (true) or 0 (false).

    Data Types: logical

    Font color of the Platformlabel, specified as a comma-separated pair consisting of 'LabelFontColor' and either an RGB triplet or a string or character vector of a color name.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    "red" "r" [1 0 0] "#FF0000"

    Sample of the color red

    "green" "g" [0 1 0] "#00FF00"

    Sample of the color green

    "blue" "b" [0 0 1] "#0000FF"

    Sample of the color blue

    "cyan" "c" [0 1 1] "#00FFFF"

    Sample of the color cyan

    "magenta" "m" [1 0 1] "#FF00FF"

    Sample of the color magenta

    "yellow" "y" [1 1 0] "#FFFF00"

    Sample of the color yellow

    "black" "k" [0 0 0] "#000000"

    Sample of the color black

    "white" "w" [1 1 1] "#FFFFFF"

    Sample of the color white

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410] "#0072BD"

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980] "#D95319"

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250] "#EDB120"

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560] "#7E2F8E"

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880] "#77AC30"

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330] "#4DBEEE"

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840] "#A2142F"

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Font size of the Platform label, specified as a comma-separated pair consisting of 'LabelFontSize' and a positive scalar in the range [6 30].

    Name of the visual 3-D model file that you want to render in the viewer, specified as a string with .GLTF, .GLB, or .STL extension. For GLB and GLTF models, gITF uses a right-hand coordinate system. gITF defines +Y as up, and +Z as forward, and -X as right. A gITF asset faces +Z. For more information, see https://registry.khronos.org/glTF/specs/2.0/glTF-2.0.html#coordinate-system-and-units. The mesh of the GLB is in meters.

    Note

    You can set this property NarrowBodyAirliner.glb to add a 3-D model of an aircraft to satellite scenario viewer.

    3-D Model of an aircraft

    Data Types: string

    Linear scaling of the visual 3-D model rendered in the viewer, specified as a nonnegative integer. The scaling assumes that the GLB model is in meters.

    Data Types: double

    Object Functions

    accessAdd access analysis objects to satellite scenario
    aerCalculate azimuth angle, elevation angle, and range of another satellite or ground station in NED frame
    conicalSensorAdd conical sensor to satellite scenario
    eclipseAdd eclipse analysis object to satellite or ground station
    gimbalAdd gimbal to satellite, platform, or ground station
    groundTrackAdd ground track object to satellite or platform in scenario
    coordinateAxesVisualize coordinate axes triad of satellite scenario assets
    statesObtain position and velocity of satellite or platform
    pathVisualize platform path in satellite scenario
    showShow object in satellite scenario viewer
    hideHide satellite scenario entity from viewer

    Examples

    collapse all

    This example uses:

    Open Live Script

    Create a scenario using satelliteScenario.

    sc = satelliteScenario();
viewer = satelliteScenarioViewer(sc);

    Consider an aircraft taking off from Delhi International Airport, flying over Bangalore, and then landing in Dubai. The total flying time is three hours. Create a trajectory using geoTrajectory.

    trajectory = geoTrajectory([28.5567,77.1006,10600;13.1989,77.7068,30600;25.2566,55.3641,5600],[0,3600,3*3600],AutoPitch=true,AutoBank=true);

    Add a platform to the satellite scenario based on the trajectory.

    pltf = platform(sc,trajectory)
    pltf =
  Platform with properties:

                  Name:  Platform 1
                    ID:  1
        ConicalSensors:  [1x0 matlabshared.satellitescenario.ConicalSensor]
               Gimbals:  [1x0 matlabshared.satellitescenario.Gimbal]
          Transmitters:  [1x0 satcom.satellitescenario.Transmitter]
             Receivers:  [1x0 satcom.satellitescenario.Receiver]
              Accesses:  [1x0 matlabshared.satellitescenario.Access]
               Eclipse:  [1x0 Aero.satellitescenario.Eclipse]
           GroundTrack:  [1x1 matlabshared.satellitescenario.GroundTrack]
                  Path:  [1x1 matlabshared.satellitescenario.Path]
        CoordinateAxes:  [1x1 matlabshared.satellitescenario.CoordinateAxes]
           MarkerColor:  [0.7176 0.2745 1]
            MarkerSize:  6
             ShowLabel:  true
        LabelFontColor:  [1 1 1]
         LabelFontSize:  15
         Visual3DModel:
    Visual3DModelScale:  1


    hide(pltf.Path);
show(pltf.GroundTrack);

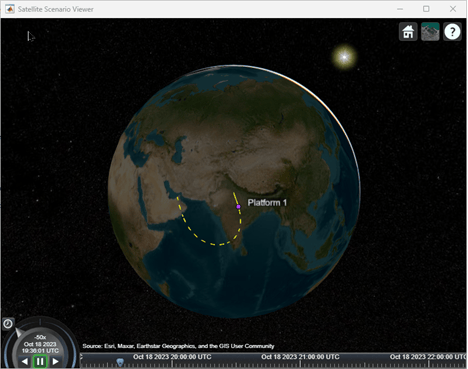

    Play viewer.

    play(sc);


    References

    [1] Hoots, Felix R., and Ronald L. Roehrich. Models for propagation of NORAD element sets. Aerospace Defense Command Peterson AFB CO Office of Astrodynamics, 1980.

    Version History

    Introduced in R2024a
