Visualize Trajectory and Attitude

View vehicle dynamics in 3-D flight paths and trajectories; create Apps with flight instruments

Visualize vehicle flight dynamics using either the MATLAB^® graphics-based functions or the third-party FlightGear flight simulator (Aerospace Toolbox Animation Objects). FlightGear is open source software available through a GNU General Public License (GPL).

You can define geometries using MATLAB variables, MAT files, AC3D files, or custom formats.

Featured Examples

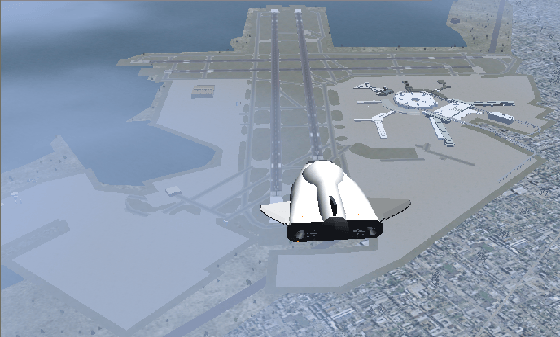

Create a Flight Animation from Trajectory Data

Create a flight animation for a trajectory using a FlightGear Animation object.

Open Live Script

Overlaying Simulated and Actual Flight Data

Visualize simulated versus actual flight trajectories with the animation object (Aero.Animation).

Open Live Script

Visualize Aircraft Takeoff via Virtual Reality Animation Object

Follow this example to visualize aircraft takeoff with the virtual reality animation object.

Open Live Script

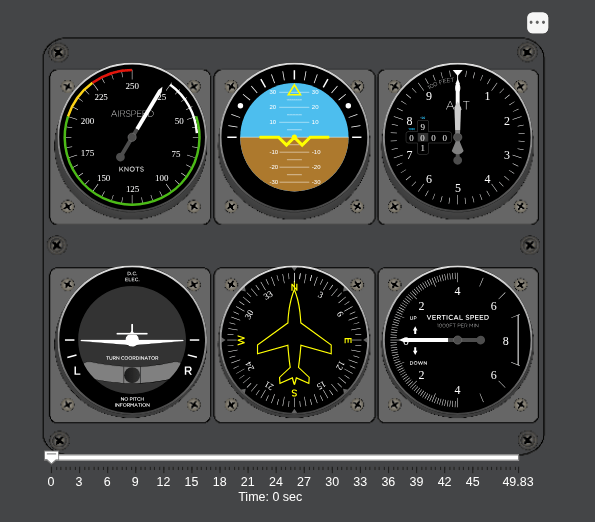

Display Flight Trajectory Data Using Flight Instruments and Flight Animation

Visualize flight trajectories in a UI figure window using flight instrument components.

Open Live Script

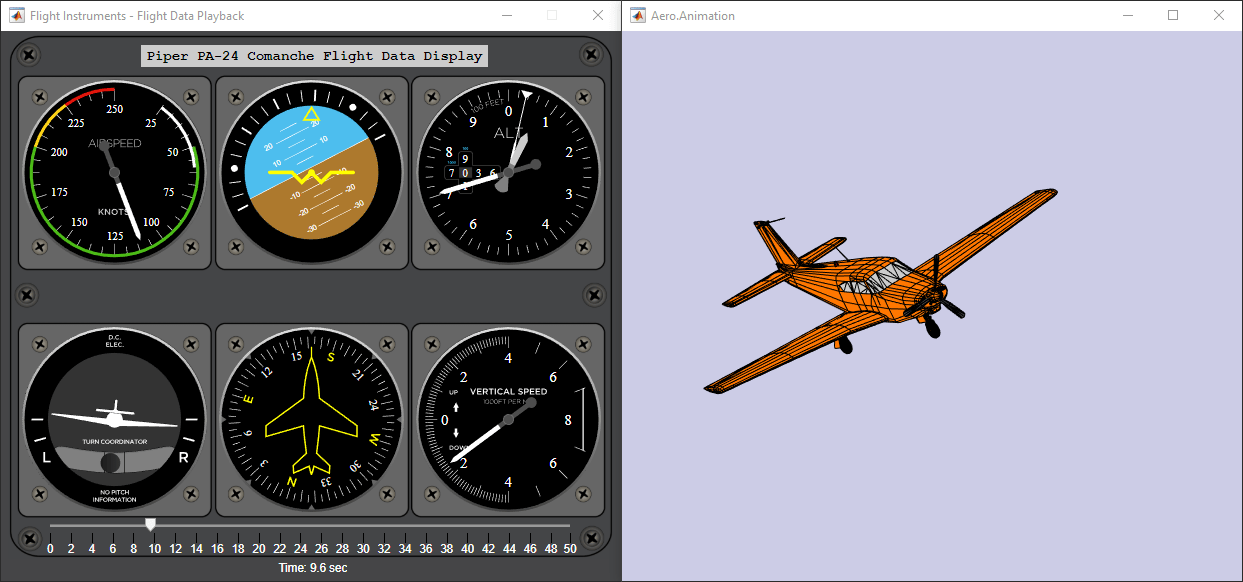

Aerospace Flight Instruments in App Designer

Display flight status information with standard cockpit instrumentation using Aerospace Toolbox flight instruments in App Designer.

Open App
