Dem Status Inject

Inject an event failure to test recovery

Since R2022a

Libraries:
AUTOSAR Blockset / Classic Platform / Basic Software / Diagnostic Event Manager (Dem)

Description

The Dem Status Inject block can be configured to instantaneously set the diagnostic status for an AUTOSAR event simulated in the Diagnostic Service Component block. This status value can be configured according to the Unified Diagnostic Services (UDS) standard. Specifically, you can use this block to inject a transient failure into a system to test its ability to recover. This block simulates and responds to other blocks affecting its status to show system recovery.

Examples

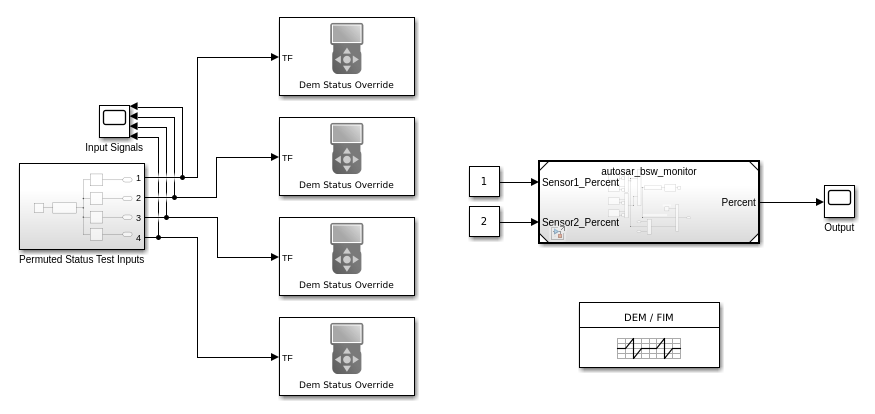

Simulate and Verify AUTOSAR Component Behavior by Using Diagnostic Fault Injection

Simulate and verify the behavior of AUTOSAR components modeled in Simulink® that contain calls into the AUTOSAR Diagnostic Event Manager (Dem). You can gain quick testing coverage by overriding the diagnostic status of specific events or verify component recovery by injecting transient event failures.

Open Live Script

Parameters

expand all

EventID — Specify the event
0 (default) | integer

Specify the AUTOSAR event that you want to override by using this block.

Programmatic Use

Block Parameter: EventId

Type: integer

Values: 0 | integer

Default: 0

Fault type — Specify the type of fault
`Event Fail` (default) | `Event Pass` | `Operation Cycle Start` | `Operation Cycle End` | `Fault Record Overwritten` | `Fault Maturation` | `Clear Diagnostic` | `Aging` | `Healing` | `Indicator Conditions Met`

Specify the type of diagnostic event that you want to inject into the system.

Programmatic Use

Block Parameter: FaultType

Type: character vector

Values:

'Event Fail' | 'Event Pass' | 'Operation Cycle Start' | 'Operation Cycle
                  End' | 'Fault Record Overwritten' | 'Fault Maturation' | 'Clear Diagnostic' |
                  'Aging' | 'Healing' | 'Indicator Conditions Met'

Default: 'Event Fail'

Trigger type — Specify the inject condition
`rising` (default) | `falling` | `either` | `function-call`

Specify when to inject the diagnostic event into the system.

Programmatic Use

Block Parameter: InjectTriggerType

Type: character vector

Values: 'rising' | 'falling' | 'either' | 'function-call'

Default: 'rising'
