ZigBee
此处的示例演示 ZigBee 通信链路。ZigBee 标准为低速率无线个域网 (LR-WPAN) 指定网络 (NET) 层和应用 (APP) 层，并基于 IEEE® 802.15.4 的 PHY 和 MAC 设定构建。
App
| 无线波形发生器 | Create, impair, visualize, and export modulated waveforms |
函数
lrwpanWaveformGenerator | Generate low-rate wireless personal area waveform (自 R2023a 起) |
对象
lrwpanOQPSKConfig | Configure O-QPSK IEEE 802.15.4 transmission (自 R2023a 起) |
精选示例

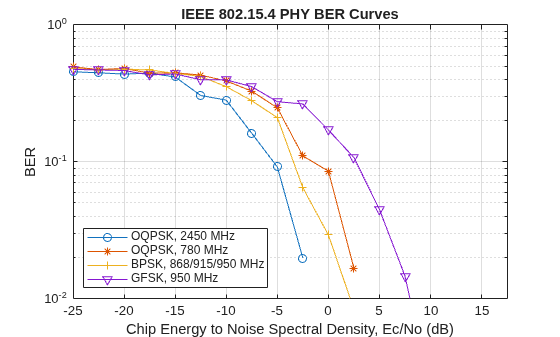

End-to-End IEEE 802.15.4 PHY Simulation
Generate waveforms, decode waveforms and compute BER curves for different PHY specifications of the IEEE 802.15.4™ standard.
Recovery of IEEE 802.15.4 OQPSK Signals
Implement a practical IEEE 802.15.4™ PHY receiver decoding OQPSK waveforms that may have been received from wireless radios.
IEEE 802.15.4 - MAC Frame Generation and Decoding
Generate and decode MAC frames of the IEEE 802.15.4™ standard.

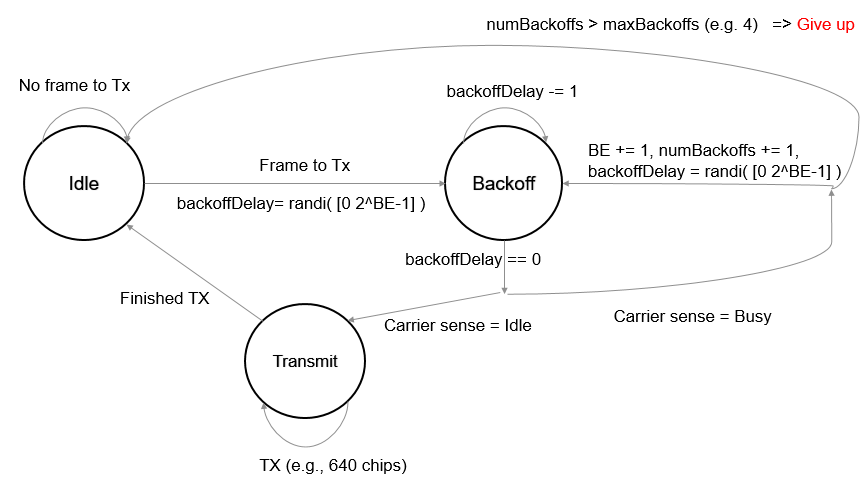

IEEE 802.15.4 - Asynchronous CSMA MAC
Simulate the IEEE 802.15.4™ asynchronous CSMA MAC.
ZigBee NET Frame Generation and Decoding
Generate and decode NET frames of the ZigBee specification.

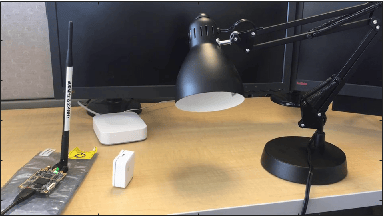

ZigBee Home Automation Frame Generation and Decoding
Generate and decode application-layer frames for the Home Automation application profile of the ZigBee specification.
ZigBee Light Link Frame Generation and Decoding
Generate and decode frames of the ZigBee Light Link application profile.
ZigBee Frame Generation and Decoding for General Commands
Generate and decode General Command frames of the ZigBee specification.
ZigBee Smart Energy Frame Generation and Decoding
Generate and decode ZigBee Smart Energy frames.
Measure EVM for 802.15.4 (ZigBee) System
Measure EVM of simulated IEEE 802.15.4 transmitter.
