Discretizing and Resampling Models
This example shows how to use the commands for continuous/discrete, discrete/continuous, and discrete/discrete conversions.

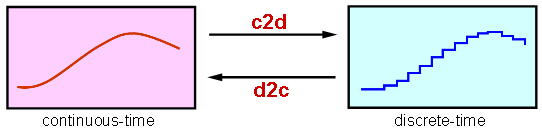

Control System Toolbox™ offers extensive support for discretization and resampling of linear systems including:
c2ddiscretizes continuous-time models
d2ccompute continuous-time extensions of discrete-time models
d2dresamples discrete-time models.
Several algorithms are available to perform these operations, including:
For example, consider the second-order system with delay:
To compute its zero-order hold (ZOH) discretization with sampling rate of 10 Hz, type
G = tf([1 -2],[1 3 20],'inputdelay',1); Ts = 0.1; % sampling interval Gd = c2d(G,Ts)
Gd = 0.07462 z - 0.09162 z^(-10) * ---------------------- z^2 - 1.571 z + 0.7408 Sample time: 0.1 seconds Discrete-time transfer function.

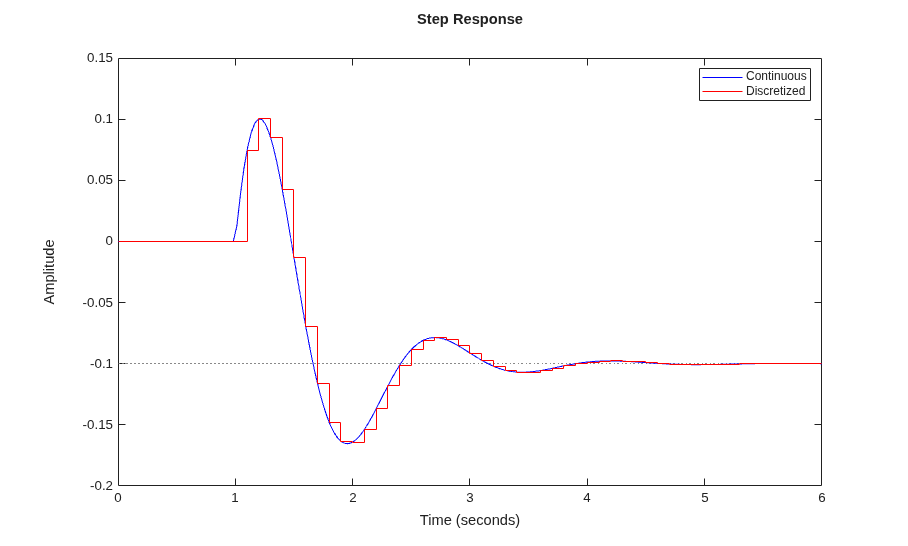

Compare the continuous and discrete step responses:
Conversely, you can use

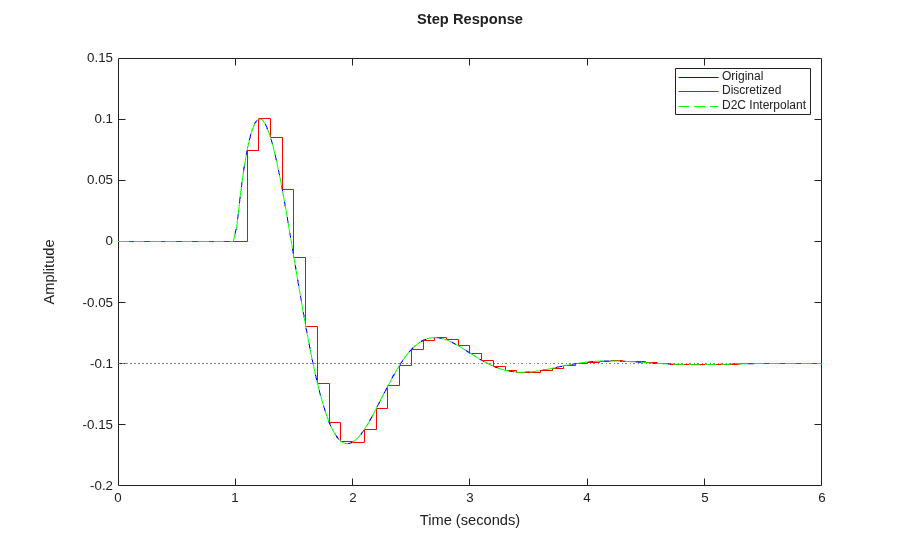

d2c to compute a continuous-time "interpolant" for a given discrete-time system. Starting with the discretization
Gd computed above, convert it back to continuous and compare with the original model
Gc = d2c(Gd); step(G,'b',Gd,'r',Gc,'g--') legend('Original','Discretized','D2C Interpolant')

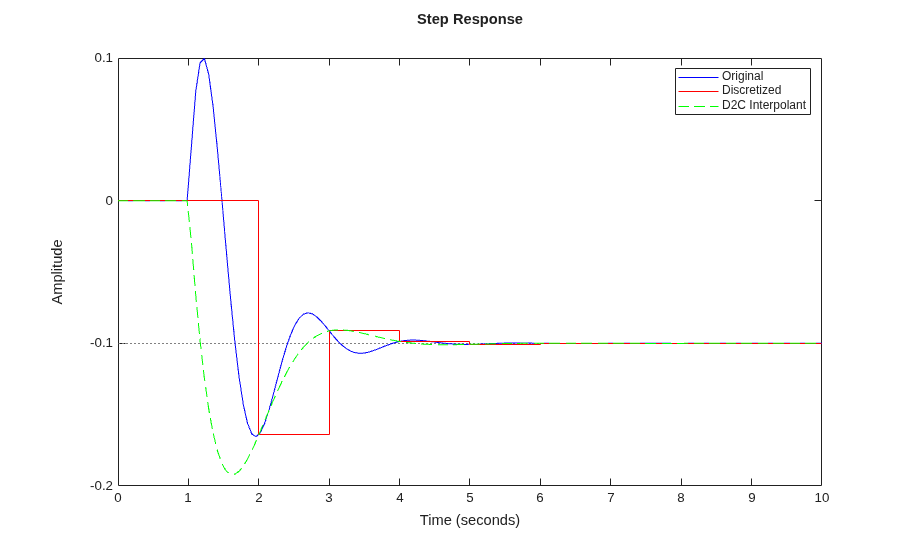

The two continuous-time responses match perfectly. You may not always obtain a perfect match especially when your sampling interval
Ts is too large and aliasing occurs during discretization:
Ts = 1; % 10 times larger than previously Hd = c2d(G,Ts); Hc = d2c(Hd); step(G,'b',Hd,'r',Hc,'g--',10) legend('Original','Discretized','D2C Interpolant')
Resampling of Discrete-Time Systems
Resampling consists of changing the sampling interval of a discrete-time system. This operation is performed with
d2d. For example, consider the 10 Hz discretization
Gd of our original continuous-time model
G. You can resample it at 40 Hz using:
Gr = d2d(Gd,0.025)
Gr = 0.02343 z - 0.02463 z^(-40) * ---------------------- z^2 - 1.916 z + 0.9277 Sample time: 0.025 seconds Discrete-time transfer function.

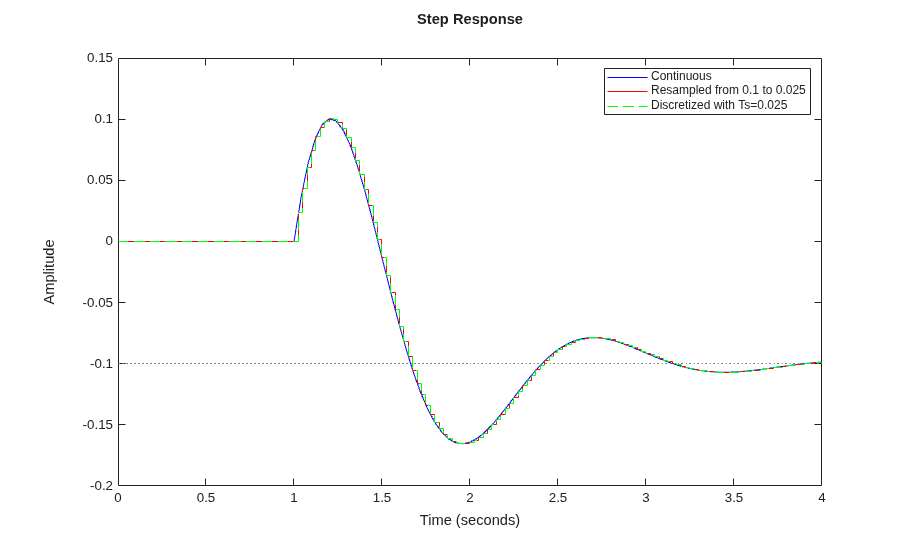

Compare this with a direct discretization at 40 Hz:
step(G,'b',Gr,'r',c2d(G,0.025),'g--',4) legend('Continuous','Resampled from 0.1 to 0.025','Discretized with Ts=0.025')
Notice that both approaches lead to the same answer.
Which Algorithm and Sampling Rate to Choose?
See the example entitled Discretizing a Notch Filter for more details on how the choice of algorithm and sampling rate affect the discretization accuracy.
