Measure Frequency Using NI Devices

Create a Counter Input Channel

Use daq to create a DataAcquisition and addinput to add a counter input channel with Frequency measurement type. For this example, use CompactDAQ chassis NI c9178 and module NI 9402 with ID cDAQ1Mod5.

dq = daq("ni");
ch = addinput(dq,"cDAQ1Mod5", "ctr0", "Frequency");
ch

ch =

    Index    Type      Device       Channel    Measurement Type    Range          Name
    _____    ____    ___________    _______    ________________    _____    ________________

      1      "ci"    "cDAQ1Mod5"    "ctr0"       "Frequency"       "n/a"    "cDAQ1Mod5_ctr0"

Determine the Terminal of the Counter Input Channel

To connect the input signal to the correct terminal, examine the Terminal property of the channel. The terminal is determined by the hardware.

ch.Terminal

ans =

    'PFI1'

Measure Frequency

To determine if the counter is operational, input a single scan while the motor is rotating.

read(dq)

ans =

  timetable

    Time     cDAQ1Mod5_ctr0
    _____    ______________

    0 sec         100

Monitor Frequency over Time

Use the hardware clock to acquire multiple counter measurements over time. NI counter devices require an external clock. By adding an analog input channel for a module on the same chassis, the session shares an internal clock with both modules.

dq = daq("ni");
dq.Rate = 1;
addinput(dq,"cDAQ1Mod1", "ai0", "Voltage");
addinput(dq,"cDAQ1Mod5", "ctr0", "Frequency");

data = read(dq, seconds(10));

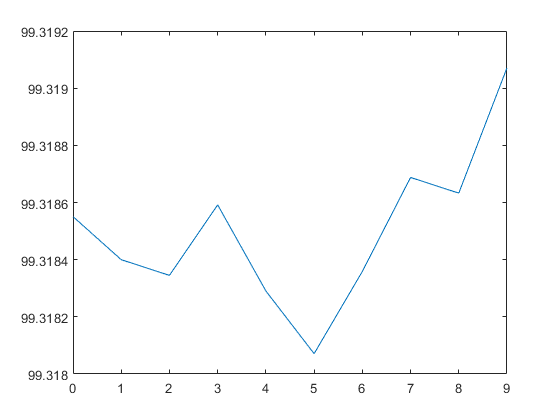

plot(data.Time, data.cDAQ1Mod5_ctr0);
