Compute the Maximum

This example uses:

Open Script

Compute the maximum of a 3-by-2 matrix input, dsp_examples_u, using the Maximum block.

Open the model.

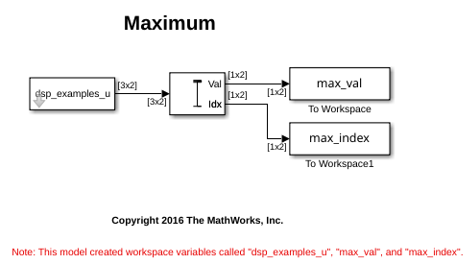

model = 'ex_maximum_ref';
open_system(model)

The Mode parameter of the Maximum block is set to Value and Index. The block processes the input as a two-channel signal with a frame size of three.

Run the model.

sim(model)

Display the input and output values.

disp('Data Input')
disp(dsp_examples_u)
disp('Maximum Values')
disp(max_val)
disp('Max Index Array')
disp(max_index)

Data Input
     6     1
     1     3
     3     9
    -7     2
     2     4
     5     1
     8     6
     0     2
    -1     5
    -3     0
     2     4
     1    17

Maximum Values
     6     9
     5     4
     8     6
     2    17
     0     0
     0     0

Max Index Array
     1     3
     3     2
     1     1
     2     3
     1     1
     1     1

In the Value and Index mode, the block outputs:

  • The maximum value over each frame of data along the channel.

  • The index of the maximum value in the respective frame.

Close the model.

close_system(model)
