针对 ARM Cortex-A 处理器的 Ne10 支持
注意
GCC ARM Cortex-A 代码替换库不再显示在代码替换库选择器中。要使用此代码替换库中的优化，请将参数代码替换库设置为 ARM Cortex-A CMSIS。
Embedded Coder® Support Package for ARM Cortex-A Processors 支持针对函数、System object 和 Simulink® 模块的优化 C 代码生成。要生成此优化代码，您必须安装 Embedded Coder。
使用此支持包，您可以生成能够与 Ne10 库函数链接的 C 代码。您可以编译这些生成的代码，以提供在具有 Neon 扩展的 ARM Cortex-A 处理器上运行的经过优化的可执行文件。
要安装 Embedded Coder Support Package for ARM Cortex-A Processors，请参阅安装 ARM Cortex-A 处理器的支持程序。
主题
MATLAB 和 Simulink
- Supported Ne10 Library Functions for ARM Cortex-A Processors
Supported Ne10 library functions. - Ne10 Conditions for MATLAB Functions to Support ARM Cortex-A Processors
Ne10 CRL conditions for MATLAB® functions to support ARM Cortex-A.
DSP System Toolbox
- Supported DSP System Toolbox Blocks and MATLAB System Objects for Ne10 Library
Deployable blocks supporting the Ne10 library. - Supported DSP System Toolbox System Objects with Ne10 Library for ARM Cortex-A Processors
Ne10 CRL conditions for DSP System objects to support ARM Cortex-A. - Supported DSP System Toolbox Blocks with Ne10 Library for ARM Cortex-A Processors
Ne10 CRL Conditions for DSP blocks to support ARM Cortex-A.
精选示例

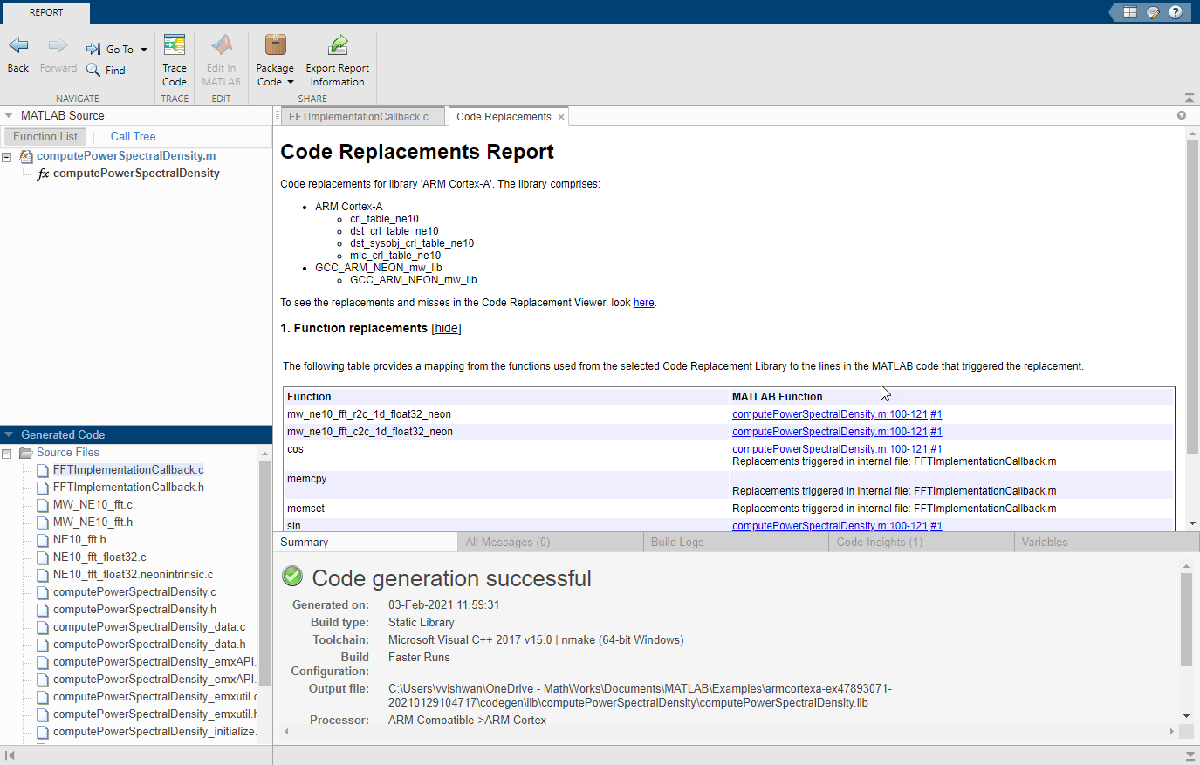

FFT for Spectral Analysis on ARM Cortex-A Processor
Use Embedded Coder® Support Package for ARM® Cortex®-A processors to generate optimized C code for the FFT function for spectral analysis with the NE10 library. This example also shows how to use the QEMU ARM Cortex-A9 emulator to verify the generated code. For more details on the fft function for spectral analysis, see the 傅里叶变换.

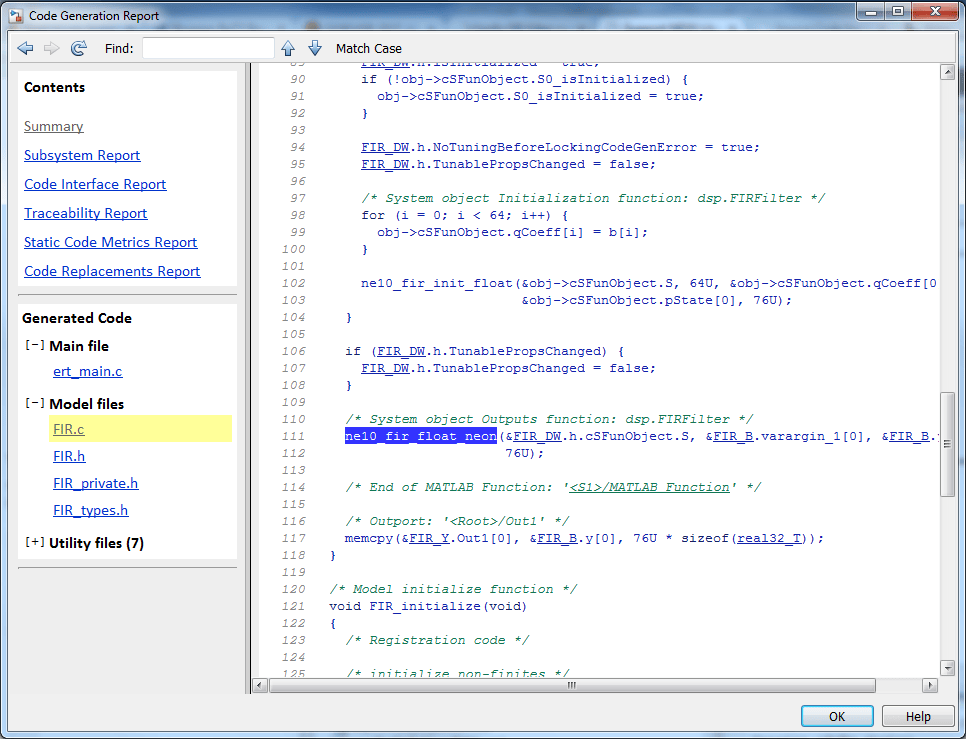

Support NE10 Library C Code Generation of dsp.FIRFilter in MATLAB Function Block
Use the Code Replacement Library (CRL) for ARM® processor with DSP System object™. The model uses a MATLAB Function that contains a dsp.FIRFilter System object to filter two sine waves of different frequencies.
