Compare Simulation Smoother to Smoothed States

Open Live Script

This example shows how the results of the state-space model simulation smoother (simsmooth) compare to the smoothed states (smooth).

Suppose that the relationship between the change in the unemployment rate ( $x_{1, t}$ ) and the nominal gross national product (nGNP) growth rate ( $x_{3, t}$ ) can be expressed in the following, state-space model form.

$[\begin{array}{cccccccccccccccccccc} x_{1, t} \\ x_{2, t} \\ x_{3, t} \\ x_{4, t} \end{array}] = [\begin{array}{cccccccccccccccccccc} ϕ_{1} & θ_{1} & γ_{1} & 0 \\ 0 & 0 & 0 & 0 \\ γ_{2} & 0 & ϕ_{2} & θ_{2} \\ 0 & 0 & 0 & 0 \end{array}] [\begin{array}{cccccccccccccccccccc} x_{1, t - 1} \\ x_{2, t - 1} \\ x_{3, t - 1} \\ x_{4, t - 1} \end{array}] + [\begin{array}{cccccccccccccccccccc} 1 & 0 \\ 1 & 0 \\ 0 & 1 \\ 0 & 1 \end{array}] [\begin{array}{cccccccccccccccccccc} u_{1, t} \\ u_{2, t} \end{array}]$

$[\begin{array}{cccccccccccccccccccc} y_{1, t} \\ y_{2, t} \end{array}] = [\begin{array}{cccccccccccccccccccc} 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 \end{array}] [\begin{array}{cccccccccccccccccccc} x_{1, t} \\ x_{2, t} \\ x_{3, t} \\ x_{4, t} \end{array}] + [\begin{array}{cccccccccccccccccccc} σ_{1} & 0 \\ 0 & σ_{2} \end{array}] [\begin{array}{cccccccccccccccccccc} ε_{1, t} \\ ε_{2, t} \end{array}],$

where:

$x_{1, t}$ is the change in the unemployment rate at time t.
$x_{2, t}$ is a dummy state for the MA(1) effect on $x_{1, t}$ .
$x_{3, t}$ is the nGNP growth rate at time t.
$x_{4, t}$ is a dummy state for the MA(1) effect on $x_{3, t}$ .
$y_{1, t}$ is the observed change in the unemployment rate.
$y_{2, t}$ is the observed nGNP growth rate.
$u_{1, t}$ and $u_{2, t}$ are Gaussian series of state disturbances having mean 0 and standard deviation 1.
$ε_{1, t}$ is the Gaussian series of observation innovations having mean 0 and standard deviation $σ_{1}$ .
$ε_{2, t}$ is the Gaussian series of observation innovations having mean 0 and standard deviation $σ_{2}$ .

Load the Nelson-Plosser data set, which contains the unemployment rate and nGNP series, among other things.

load Data_NelsonPlosser

Preprocess the data by taking the natural logarithm of the nGNP series, and the first difference of each. Also, remove the starting NaN values from each series.

isNaN = any(ismissing(DataTable),2);       % Flag periods containing NaNs
gnpn = DataTable.GNPN(~isNaN);
u = DataTable.UR(~isNaN);
T = size(gnpn,1);                          % Sample size
y = zeros(T-1,2);                          % Preallocate
y(:,1) = diff(u);
y(:,2) = diff(log(gnpn));

This example proceeds using series without NaN values. However, using the Kalman filter framework, the software can accommodate series containing missing values.

Specify the coefficient matrices.

A = [NaN NaN NaN 0; 0 0 0 0; NaN 0 NaN NaN; 0 0 0 0];
B = [1 0;1 0 ; 0 1; 0 1];
C = [1 0 0 0; 0 0 1 0];
D = [NaN 0; 0 NaN];

Specify the state-space model using ssm. Verify that the model specification is consistent with the state-space model.

Mdl = ssm(A,B,C,D)

Mdl =
State-space model type: ssm

State vector length: 4
Observation vector length: 2
State disturbance vector length: 2
Observation innovation vector length: 2
Sample size supported by model: Unlimited
Unknown parameters for estimation: 8

State variables: x1, x2,...
State disturbances: u1, u2,...
Observation series: y1, y2,...
Observation innovations: e1, e2,...
Unknown parameters: c1, c2,...

State equations:
x1(t) = (c1)x1(t-1) + (c3)x2(t-1) + (c4)x3(t-1) + u1(t)
x2(t) = u1(t)
x3(t) = (c2)x1(t-1) + (c5)x3(t-1) + (c6)x4(t-1) + u2(t)
x4(t) = u2(t)

Observation equations:
y1(t) = x1(t) + (c7)e1(t)
y2(t) = x3(t) + (c8)e2(t)

Initial state distribution:

Initial state means are not specified.
Initial state covariance matrix is not specified.
State types are not specified.

Estimate the model parameters, and use a random set of initial parameter values for optimization. Restrict the estimate of $σ_{1}$ and $σ_{2}$ to all positive, real numbers using the 'lb' name-value pair argument. For numerical stability, specify the Hessian when the software computes the parameter covariance matrix, using the 'CovMethod' name-value pair argument.

rng(1);
params0 = rand(8,1);
[EstMdl,estParams] = estimate(Mdl,y,params0,...
    'lb',[-Inf -Inf -Inf -Inf -Inf -Inf 0 0],'CovMethod','hessian');

Method: Maximum likelihood (fmincon)
Sample size: 61
Logarithmic  likelihood:     -199.397
Akaike   info criterion:      414.793
Bayesian info criterion:       431.68
      |     Coeff       Std Err    t Stat     Prob
----------------------------------------------------
 c(1) |  0.03387       0.15213     0.22262  0.82383
 c(2) | -0.01258       0.05749    -0.21876  0.82684
 c(3) |  2.49856       0.22759    10.97827   0
 c(4) |  0.77438       2.58647     0.29939  0.76464
 c(5) |  0.13994       2.64372     0.05293  0.95779
 c(6) |  0.00367       2.45485     0.00150  0.99881
 c(7) |  0.00239       2.11325     0.00113  0.99910
 c(8) |  0.00014       0.12685     0.00113  0.99910
      |
      |   Final State   Std Dev     t Stat    Prob
 x(1) |  1.40000       0.00239   586.54223   0
 x(2) |  0.21778       0.91641     0.23765  0.81216
 x(3) |  0.04730       0.00014   329.59915   0
 x(4) |  0.03568       0.00015   240.99028   0

EstMdl is an ssm model, and you can access its properties using dot notation.

Simulate 1e4 paths of observations from the fitted, state-space model EstMdl using the simulation smoother. Specify to simulate observations for each period.

numPaths = 1e4;
SimX = simsmooth(EstMdl,y,'NumPaths',numPaths);

SimX is a T - 1-by- 4-by- numPaths matrix containing the simulated states. The rows of SimX correspond to periods, the columns correspond to a state in the model, and the pages correspond to paths.

Estimate the smoothed state means, standard deviations, and 95% confidence intervals.

SmoothBar = mean(SimX,3);
SmoothSTD = std(SimX,0,3);
SmoothCIL = SmoothBar - 1.96*SmoothSTD;
SmoothCIU = SmoothBar + 1.96*SmoothSTD;

Estimate smooth states using smooth.

SmoothX = smooth(EstMdl,y);

Plot the smoothed states, and the means of the simulated states and their 95% confidence intervals.

figure
h = plot(dates(2:T),SmoothBar(:,1),'-r',...
    dates(2:T),SmoothCIL(:,1),':b',...
    dates(2:T),SmoothCIU(:,1),':b',...
    dates(2:T),SmoothX(:,1),':k',...
    'LineWidth',3);
xlabel 'Period';
ylabel 'Unemployment rate';
legend(h([1,2,4]),{'Simulated, smoothed state mean','95% confidence interval',...
    'Smoothed states'},'Location','Best');
title 'Smoothed Unemployment Rate';
axis tight

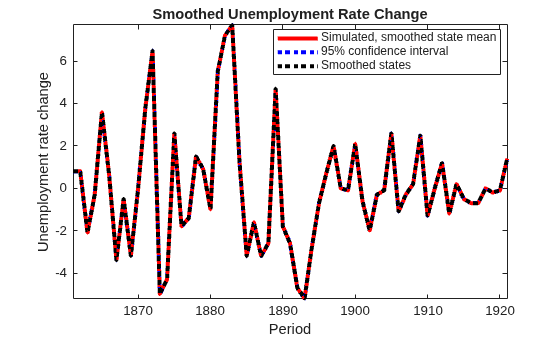

Figure contains an axes object. The axes object with title Smoothed Unemployment Rate, xlabel Period, ylabel Unemployment rate contains 4 objects of type line. These objects represent Simulated, smoothed state mean, 95% confidence interval, Smoothed states.

figure
h = plot(dates(2:T),SmoothBar(:,3),'-r',...
    dates(2:T),SmoothCIL(:,3),':b',...
    dates(2:T),SmoothCIU(:,3),':b',...
    dates(2:T),SmoothX(:,3),':k',...
    'LineWidth',3);
xlabel 'Period';
ylabel 'nGNP';
legend(h([1,2,4]),{'Simulated, smoothed state mean','95% confidence interval',...
    'Smoothed states'},'Location','Best');
title 'Smoothed nGNP';
axis tight

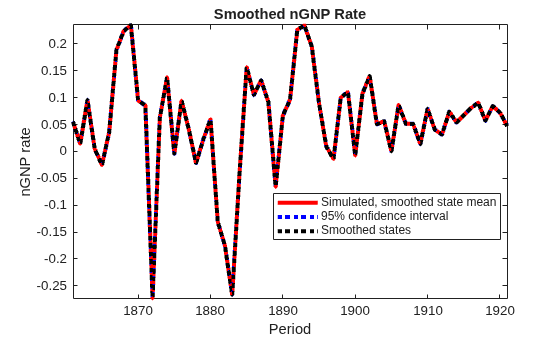

Figure contains an axes object. The axes object with title Smoothed nGNP, xlabel Period, ylabel nGNP contains 4 objects of type line. These objects represent Simulated, smoothed state mean, 95% confidence interval, Smoothed states.

The simulated state means are practically identical to the smoothed states.
