How the Software Computes Nonlinear ARX Model Output

This topic describes how the software evaluates the output of nonlinearity estimators and uses this output to compute the response of a nonlinear ARX model.

Evaluating Nonlinearities

Evaluating the predicted output of a nonlinearity for a specific regressor value x requires that you first extract the nonlinearity F and regressors from the model:

F = m.OutputFcn;
x = getreg(m,'all',data) % computes regressors

Evaluate F(x):

y = evaluate(F,x)

where x is a row vector of regressor values.

You can also evaluate predicted output values at multiple time instants by evaluating F for several regressor vectors simultaneously:

y = evaluate(F,[x1;x2;x3])

Simulation and Prediction of Sigmoid Network

Open Live Script

This example shows how the software computes the simulated and predicted output of a nonlinear ARX model as a result of evaluating the output of its nonlinearity estimator for given regressor values.

Estimate nonlinear ARX model with sigmoid network nonlinearity.

load twotankdata
estData = iddata(y,u,0.2,'Tstart',0);
M = nlarx(estData,[1 1 0],'idSigmoidNetwork');

Explore Nonlinear ARX Model

Inspect the model properties and estimation result.

present(M)

M =

Nonlinear ARX model with 1 output and 1 input
  Inputs: u1
  Outputs: y1

Regressors:
  Linear regressors in variables y1, u1

Output function: Sigmoid network with 10 units
Sample time: 0.2 seconds

Status:
Termination condition: Maximum number of iterations reached..
Number of iterations: 20, Number of function evaluations: 243

Estimated using NLARX on time domain data "estData".
Fit to estimation data: 96.31% (prediction focus)
FPE: 4.804e-05, MSE: 4.666e-05
More information in model's "Report" property.

This command provides information about input and output variables, regressors, and nonlinearity estimator.

Inspect the nonlinearity estimator.

NL = M.OutputFcn;
class(NL)   % nonlinearity class

ans =
'idSigmoidNetwork'

NL

NL =
Sigmoid Network
Inputs: y1(t-1), u1(t)
Output: y1(t)

 Nonlinear Function: Sigmoid network with 10 units
 Linear Function: initialized to [-0.161 -0.105]
 Output Offset: initialized to 0.00119

    NonlinearFcn: '<Sigmoid units and their parameters>'
       LinearFcn: '<Linear function parameters>'
          Offset: '<Offset parameters>'

Inspect the sigmoid network parameter values.

NL.Parameters;

Predict Output

The model output is:

y1(t)= f(y1(t-1),u1(t))

where f is the sigmoid network function. The model regressors y1(t-1) and u1(t) are inputs to the nonlinearity estimator. Time t is a discrete variable representing kT , where k = 0, 1, ... , and T is the sampling interval. In this example, T=0.2 second.

The output prediction equation is:

yp(t)=f(y1_meas(t-1),u1_meas(t))

where yp(t) is the predicted value of the response at time t. y1_meas(t-1) and u1_meas(t) are the measured output and input values at times t-1 and t, respectively.

Computing the predicted response includes:

Computing regressor values from input-output data.
Evaluating the nonlinearity for given regressor values.

Specify zero initial states.

x0 = 0;

The model has one state because there is only one delayed term y1(t-1). The number of states is equal to sum(getDelayInfo(M)).

Compute the predicted output at time t=0.

RegValue = [0,estData.u(1)]; % input to nonlinear function f
yp_0 = evaluate(NL,RegValue);

RegValue is the vector of regressors at t=0. The predicted output is yp(t=0)=f(y1_meas(t=-1),u1_meas(t=0)). In terms of MATLAB® variables, this output is f(0,estData.u(1)), where

y1_meas(t=0) is the measured output value at t=0, which is to estData.y(1).
u1_meas(t =1) is the second input data sample estData.u(2).

Perform one-step-ahead prediction at all time values for which data is available.

RegMat = getreg(M,[],estData,x0);
yp = evaluate(NL,RegMat.Variables);

This code obtains a matrix of regressors RegMat for all the time samples using getreg. RegMat has as many rows as there are time samples, and as many columns as there are regressors in the model - two, in this example.

These steps are equivalent to the predicted response computed in a single step using predict:

yp_direct = predict(M,estData,1,'InitialState',x0);
% compare
t = estData.SamplingInstants;
plot(t,yp, t,yp_direct.OutputData,'.')

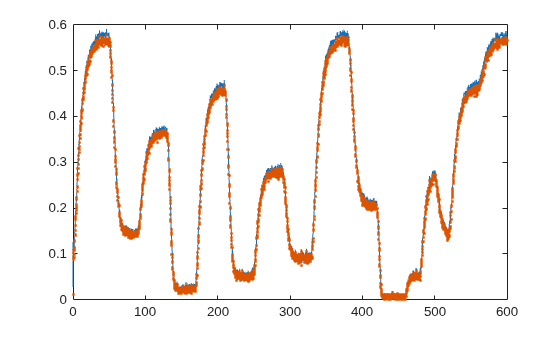

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Simulate Output

The model output is:

y1(t)=f(y1(t-1),u1(t))

where f is the sigmoid network function. The model regressors y1(t-1) and u1(t) are inputs to the nonlinearity estimator. Time t is a discrete variable representing kT , where k= 0, 1,.., and T is the sampling interval. In this example, T=0.2 second.

The simulated output is:

ys(t) = f(ys(t-1),u1_meas(t))

where ys(t) is the simulated value of the response at time t. The simulation equation is the same as the prediction equation, except that the past output value ys(t-1) results from the simulation at the previous time step, rather than the measured output value.

Computing the simulated response includes:

Computing regressor values from input-output data using simulated output values.
Evaluating the nonlinearity for given regressor values.

Specify zero initial states.

x0 = 0;

The model has one state because there is only one delayed term y1(t-1). The number of states is equal to sum(getDelayInfo(M)).

Compute the simulated output at time t =0, ys(t=0).

RegValue = [0,estData.u(1)];
ys_0 = evaluate(NL,RegValue);

RegValue is the vector of regressors at t=0. ys(t=0)=f(y1(t=-1),u1_meas(t=0)). In terms of MATLAB variables, this output is f(0,estData.u(1)), where

y1(t=-1) is the initial state x0 (=0).
u1_meas(t=0) is the value of the input at t =0, which is the first input data sample estData.u(1).

Compute the simulated output at time t=1, ys(t=1).

RegValue = [ys_0,estData.u(2)];
ys_1 = evaluate(NL,RegValue);

The simulated output ys(t=1)=f(ys(t=0),u1_meas(t=1)). In terms of MATLAB variables, this output is f(ys_0,estData.u(2)), where

ys(t=0) is the simulated value of the output at t=0.
u1_meas(t=1) is the second input data sample estData.u(2).

Compute the simulated output at time t=2.

RegValue = [ys_1,estData.u(3)];
ys_2 = evaluate(NL,RegValue);

Unlike for output prediction, you cannot use getreg to compute regressor values for all time values. You must compute regressors values at each time sample separately because the output samples required for forming the regressor vector are available iteratively, one sample at a time.

These steps are equivalent to the simulated response computed in a single step using sim(idnlarx).

ys = sim(M,estData,x0);

Perform Low-Level Computation

Perform a low-level computation of the nonlinearity response for the idSigmoidNetwork function:

$\begin{array}{l} F (x) = (x - r) P L + a_{1} f ((x - r) Q b_{1} + c_{1}) + \dots \\ + a_{n} f ((x - r) Q b_{n} + c_{n}) + d \end{array}$

where f is the sigmoid function, given by the following equation:

$f (z) = \frac{1}{e^{- z} + 1}$

In F(x), the input to the sigmoid function is x-r. x is the regressor value and r is regressor mean, computed from the estimation data. $a_{n}$ , $n_{n}$ , and $c_{n}$ are the network parameters stored in the model property M.nl.par, where M is an idnlarx object.

Compute the output value at time t=1, when the regressor values are x=[estData.y(1),estData.u(2)]:

Assign values to the parameters in the expression for F(x).

x = [estData.y(1),estData.u(2)]; % regressor values at t=1
r = NL.Input.Mean;
P = NL.LinearFcn.InputProjection;
L = NL.LinearFcn.Value';
d = NL.Offset.Value;
Q = NL.NonlinearFcn.Parameters.InputProjection;
aVec = NL.NonlinearFcn.Parameters.OutputCoefficient;   % [a_1; a_2; ...]
cVec = NL.NonlinearFcn.Parameters.Translation;  % [c_1; c_2; ...]
bMat = NL.NonlinearFcn.Parameters.Dilation;     % [b_1; b_2; ...]

Compute the linear portion of the response (plus offset).

yLinear = (x-r)*P*L+d;

Compute the nonlinear portion of the response.

f = @(z)1/(exp(-z)+1); % anonymous function for sigmoid unit
yNonlinear = 0;
for k = 1:length(aVec)
    fInput = (x-r)*Q* bMat(:,k)+cVec(k);
    yNonlinear = yNonlinear+aVec(k)*f(fInput);
end
