Resize Image and Preserve Aspect Ratio

This example shows how to resize an image while maintaining the ratio of width to height. This example covers two common situations:

  1. You want to resize the image and specify the exact height or width.

  2. You want to resize an image to be as large as possible without the width and height exceeding a maximum value.

Start by reading and displaying an image.

I = imread("lighthouse.png");
imshow(I)

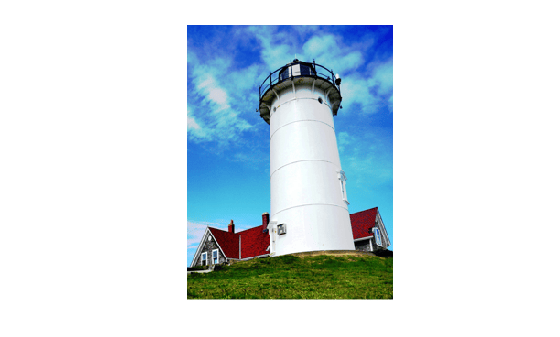

Figure contains an axes object. The hidden axes object contains an object of type image.

Get the size of the image. The aspect ratio of this image is 3:4, meaning that the width is 3/4 of the height.

[heightI,widthI,~] = size(I)
heightI =
640
widthI =
480

Resize Image to Specified Height

Specify the desired height of the image.

targetHeight = 300;

Resize the image, specifying the output size of the image. Because the second element of targetSize is NaN, imresize automatically calculates the number of rows needed to preserve the aspect ratio.

targetSize = [targetHeight NaN];
J = imresize(I,targetSize);
[h,w,~] = size(J)
h =
300
w =
225
imshow(J)

Figure contains an axes object. The hidden axes object contains an object of type image.

Resize Image to Specified Width

Specify the desired width of the image.

targetWidth = 300;

Resize the image, specifying the output size of the image. Because the first element of targetSize is NaN, imresize automatically calculates the number of columns needed to preserve the aspect ratio.

targetSize = [NaN targetWidth];
K = imresize(I,targetSize);
[h,w,~] = size(K)
h =
400
w =
300
imshow(K)

Figure contains an axes object. The hidden axes object contains an object of type image.

Resize Image Within Maximum Size

You can resize an image to be as large as possible without the width and height exceeding a maximum value.

Specify the maximum dimensions of the image.

maxHeight = 256;
maxWidth = 256;

Determine which dimension requires a larger scaling factor.

scaleWidth = widthI/maxWidth
scaleWidth =
1.8750
scaleHeight = heightI/maxHeight
scaleHeight =
2.5000

Select the output size based on whether the height or width requires a greater scale factor to fit within the maximum image dimensions. If the height requires a greater scale factor, then specify the target height as maxHeight. Conversely, if the width requires a greater scale factor, then specify the target width as maxWidth. Let imresize automatically calculate the size of the other dimension to preserve the aspect ratio.

if scaleHeight>scaleWidth
    targetSize = [maxHeight NaN];
else
    targetSize = [NaN maxWidth];
end

Resize the image, specifying the output size of the image.

L = imresize(I,targetSize);
[h,w,~] = size(L)
h =
256
w =
192
imshow(L)

Figure contains an axes object. The hidden axes object contains an object of type image.
