PRACH False Alarm Probability Conformance Test

Introduction

Measuring the probability of erroneous detection is defined in TS36.104, Section 8.4.1 [ 1 ]. The target defined for any bandwidth, all frame structures and for any number of receive antennas is a false alarm probability less than or equal to 0.1%.

The input to the PRACH detector is made up exclusively of a Gaussian noise signal. Detection is attempted with all possible cell preamble indices, and if a preamble is detected within the noise, a false detection is accumulated.

UE Configuration

A configuration structure for the User Equipment (UE) is created and set to use 6 resource blocks in Frequency Division Duplexing (FDD).

ue.NULRB = 6;                   % Number of resource blocks
ue.DuplexMode = 'FDD';          % FDD duplexing mode

PRACH Configuration

Setup the PRACH configuration structure. The standard documents do not specify any values since no PRACH is transmitted.

prach.Format = 0;               % Preamble format
prach.SeqIdx = 2;               % Logical root sequence index
prach.CyclicShiftIdx = 1;       % Cyclic shift configuration index
prach.HighSpeed = 0;            % High speed flag
prach.FreqOffset = 0;           % Use default frequency resource index
prach.PreambleIdx = [];         % Empty since no preamble is transmitted

Establish PRACH Generator Output Length for This Configuration

ltePRACHInfo returns PRACH dimensionality information given UE-specific settings and PRACH channel transmission configuration. From this information the PRACH output length can be calculated using the PRACH duration in subframes, the duration of one subframe in seconds (1ms) and the PRACH modulator sampling rate.

info = ltePRACHInfo(ue, prach);
nSamples = info.SamplingRate*info.TotSubframes*0.001;

Loop for Detection in Each Subframe

Initialize the false detection count and enter a loop to process multiple detection trials. For each detection trial a Gaussian noise signal (of length nSamples) is created and detection is performed on it for every possible cell preamble index using ltePRACHDetect. In the ideal case, no preambles should have been detected. In the case where a preamble has been detected, a false alarm for this trial is recorded.

numTrials = 1400;
falseCount = 0;         % Initialize false detection counter
rng('default');         % Random number generator to default state

runningP=zeros(1, numTrials);
runningDetected(numTrials)=struct('Detected',[],'Offset',[]);
for nt = 1:numTrials

    % Create noise
    noise = complex(randn(nSamples, 1), randn(nSamples, 1));

    % Attempt detection for all cell preamble indices (0...63)
    [detected,offset] = ltePRACHDetect(ue, prach, noise, 0:63);

    % Record false alarm
    if (~isempty(detected))
        falseCount = falseCount+1;
    end

    % Calculate running false alarm probability
    runningP(nt) = falseCount/nt*100;

    % Store information about false alarm (if applicable)
    if (~isempty(detected))
        runningDetected(nt).Detected = detected;
        runningDetected(nt).Offset = offset;
    end

end

Compute Final False Alarm Probability

Compute the final false alarm probability and plot the running false alarm probability across the simulation.

P = falseCount / numTrials;
fprintf('\nFalse alarm probability = %0.4f%%\n',P*100);

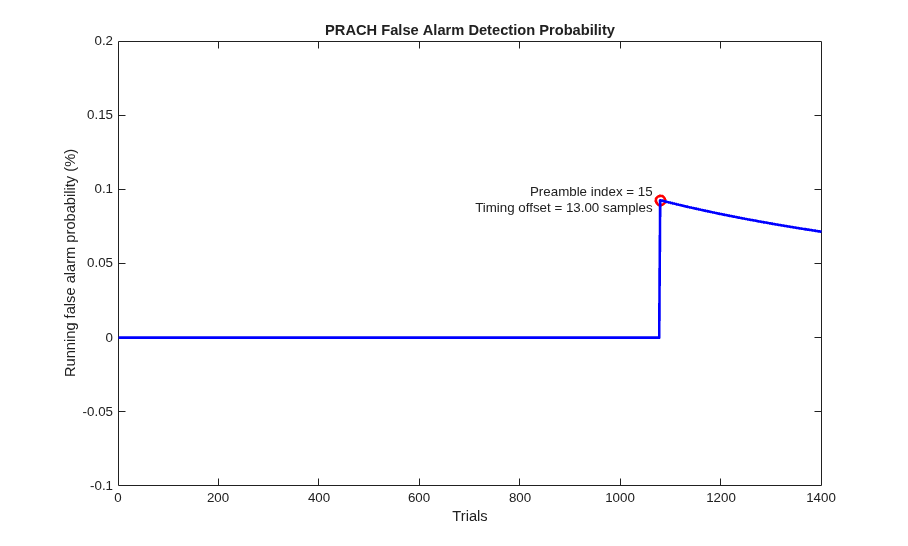

hPlotFalseAlarmProbability(runningP,runningDetected);

False alarm probability = 0.0714%
