Read Terrain Elevation Data

Search the WMS Database for a layer containing terrain elevation data from the WMS server hosted by MathWorks.

layers = wmsfind("mathworks","SearchField","serverurl");
elevation = refine(layers,"elevation");

Read the terrain elevation data from the server for a region surrounding Afghanistan. Specify the sampling interval as 1 minute and the image format as BIL.

latlim = [25 40];
lonlim = [55 80];
samplingInterval = dms2degrees([0 1 0]);
[ZA,R] = wmsread(elevation,"Latlim",latlim,"Lonlim",lonlim, ...
   "CellSize",samplingInterval,"ImageFormat","image/bil");

Note that ZA is an array of elevation data rather than an RGB image. Find the minimum and maximum elevations.

elevationLimits = [min(min(ZA)) max(max(ZA))]

elevationLimits = 1×2 int16 row vector

     -13    7350

Display Terrain Elevation Data

Prepare the data for plotting by converting the data type to double. To make the water areas appear blue on the plot, set elevations at sea level (ZA == 0) to a value below sea level.

ZA = double(ZA);
ZA(ZA == 0) = -1;

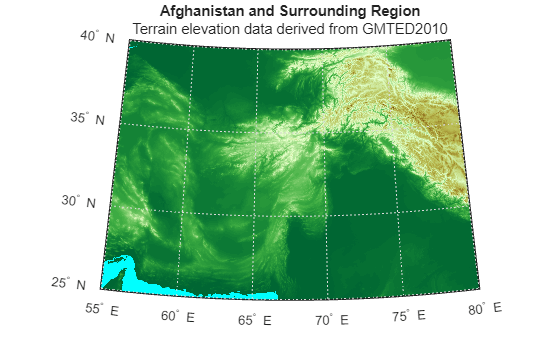

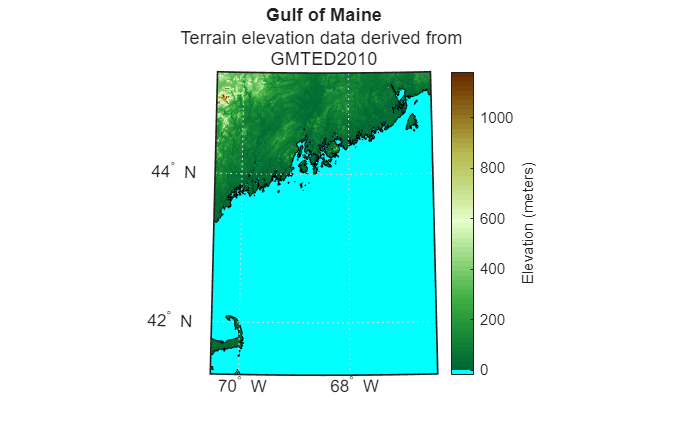

Display the elevation data as a texture map.

figure
worldmap("Afghanistan")
geoshow(ZA,R,"DisplayType","texturemap")
demcmap(ZA)
title("Afghanistan and Surrounding Region")
subtitle(elevation.LayerTitle)

Read Rasterized Vector Data

Get a layer containing boundaries data from the EOC Basemap Map Service server.

info = wmsinfo("https://geoservice.dlr.de/eoc/basemap/wms?");
layers = info.Layer;
boundaries = refine(layers,"ne_countries");

Read the boundaries as an RGB image. Dark values in the image represent the boundaries.

B = wmsread(boundaries,"Latlim",latlim,"Lonlim",lonlim,"CellSize",samplingInterval);

Merge Elevation and Rasterized Vector Data

To embed the boundaries into the elevation data, find the elements of the boundaries image that contain dark values. Then, replace the corresponding elements of the elevation array with a value slightly higher than the maximum elevation.

ZB = ZA;
idx = B(:,:,1) < 250;
ZB(idx) = max(ZA(:)) + 1;

Display Merged Data

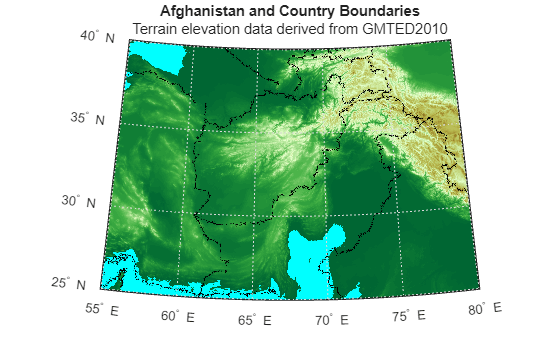

Display the updated data on a new map.

figure
worldmap("Afghanistan")
geoshow(ZB,R,"DisplayType","texturemap")
title("Afghanistan and Country Boundaries")
subtitle(elevation.LayerTitle)

Apply a colormap appropriate for elevation data. Use black for the boundaries.

cmap = demcmap(ZB);
cmap(end,:,:) = [0 0 0];
colormap(cmap)

Read Basemap Imagery

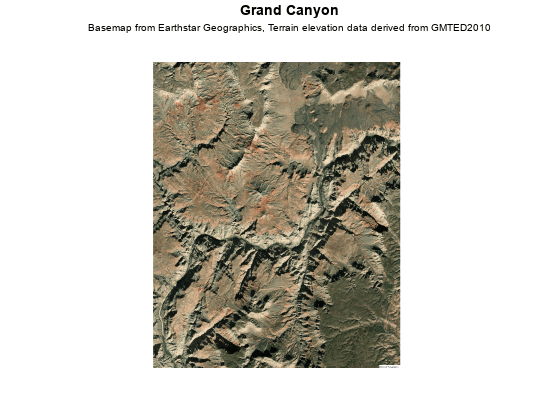

Specify the latitude and longitude limits for a region around the Grand Canyon. Read an image for the region from the "satellite" basemap as an array and as a map cells reference object in Web Mercator coordinates.

latlim = [36 36.23];
lonlim = [-113.36 -113.13];
[A,R,attrib] = readBasemapImage("satellite",latlim,lonlim);

Read Terrain Elevation Data

WMS servers typically provide data referenced to the World Geodetic System of 1984 (WGS84). If a layer provides data referenced to a different coordinate system, then you can specify the coordinate system by using a web map server object, a WMS map request object, and the getMap function.

Create a web map server object that communicates with the WMS server provided by MathWorks. Get the terrain elevation layer from the capabilities document.

serverURL = "https://wms.mathworks.com";
server = WebMapServer(serverURL);
info = getCapabilities(server);
elevation = refine(info.Layer,"elevation");

Verify the server provides data referenced to Web Mercator coordinates. The Web Mercator coordinate system has the EPSG code 3857.

elevation.CoordRefSysCodes

ans = 2×1 cell
    {'EPSG:3857'}
    {'EPSG:4326'}

Create a map request object for the layer.

mapRequest = WMSMapRequest(elevation);
mapRequest.CoordRefSysCode = "EPSG:3857";
mapRequest.ImageHeight = size(A,1);
mapRequest.ImageWidth = size(A,2);
mapRequest.XLim = R.XWorldLimits;
mapRequest.YLim = R.YWorldLimits;
mapRequest.ImageFormat = "image/bil";

Read the elevation data by using the getMap function.

Z = getMap(server,mapRequest.RequestURL);
Z = double(Z);

Display Imagery and Elevation Data

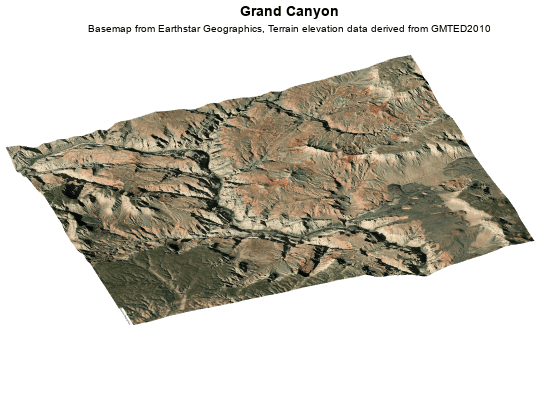

Drape the image over the elevation data.

figure
mapshow(Z,R,"DisplayType","surface","CData",A)
bmapAttrib = "Basemap from " + attrib;
wmsAttrib = string(elevation.LayerTitle);
title("Grand Canyon")
subtitle(bmapAttrib + ", " + wmsAttrib,"FontSize",8)
axis off

Adjust the camera view.

campos([-12400000 4240000 152000])
camva(5.4)
