Test Browser
Description
The Test Browser app enables you to run script-based, function-based, and class-based tests interactively.
You can use the test browser to:
Create a test suite from files and folders.
Run all or part of the specified tests.
Access diagnostics and debug test failures.
Customize a test run with options, such as running tests in parallel (requires Parallel Computing Toolbox™) or specifying a level of test output detail.
Generate an HTML code coverage report for MATLAB® source code.
More
Overview of Test Browser Toolbar
This table provides a summary of the buttons on the toolbar of the test browser.
Button | Description |
---|---|
| Add tests from files and folders. |
![]() | Run the tests in the test suite. |
![]() | Enable or disable parallel test execution. |
![]() | Specify code coverage settings. |
![]() | Customize the test run by specifying whether to apply strict checks, amount of output detail, and logging level. |
![]() | Display or hide the passed tests. |
![]() | Display or hide the failed tests. |
![]() | Display or hide the incomplete tests. |
![]() | Display or hide the tests that have not run. |
![]() | Perform additional actions. For example, clear the test status filters or remove the tests. |
![](test_browser_app.png)
Open the Test Browser App
MATLAB Toolstrip: On the Apps tab, under MATLAB, click the app icon.
MATLAB command prompt: Enter
testBrowser
.
You also can open the test browser if you run tests using either of these options. These options do not support script-based tests:
Right-click a test file in the Current Folder browser and then select Run.
Open a test file in the MATLAB Editor or Live Editor and then run the tests using the Run section in the Editor or Live Editor tab of the toolstrip.
Examples
Debug a Test Failure
Debug a test failure by using the test browser.
Create a function-based test file named sampleTest.m
in your
current folder. The file contains two tests that pass and one test that intentionally
fails.
function tests = sampleTest tests = functiontests(localfunctions); end function testA(testCase) verifyEqual(testCase,2+3,5) end function testB(testCase) verifyLessThan(testCase,-1.1,-1.2) end function testC(testCase) verifySubstring(testCase,"Hello World!","llo") end
Open the test browser.
testBrowser
Add the tests in the sampleTest.m
file to the test browser. To
add the tests, click the Add tests button
on the toolbar and then select the test file. The test
browser creates a test suite and displays the test names in a test tree.
Run the tests by clicking the Run current suite button
on the toolbar. Two tests pass and one test fails due
to a verification failure. If you click the node of
testB
in the test
tree, the Test Diagnostics Viewer section at the bottom of the
Test Browser panel displays the diagnostic information.
Click the line-number link provided for testB
in the test tree or
the hyperlinked path in the Test Diagnostics Viewer section to view
the code that resulted in the failure. To debug the test failure, set a breakpoint on
the highlighted line of code by clicking its line number. Then, run
testB
by right-clicking its node in the test tree and selecting
Run Test. MATLAB enters debug mode and enables debugging capabilities that you can use to
investigate the cause of the test failure.
If you rerun the failed test in the Command Window with an appropriate actual value, the test passes.
Running sampleTest 10 verifyLessThan(testCase,-1.1,-1.2) K>> verifyLessThan(testCase,-1.3,-1.2) K>>
Exit debug mode and clear the breakpoint. Update the actual value in the test file,
and save the file. Run the tests again by clicking the Run current suite button
. All the tests pass.
Run Parameterized Tests
Run parameterized tests by using the test browser.
In a file named cleanData.m
in your current folder, create the
cleanData
function. The function accepts a numeric array and
returns a cleaned and sorted version of the array. It vectorizes the array, removes the
NaN
, 0
, and Inf
entries, and
finally sorts the vector.
function y = cleanData(X) y = X(:); % Vectorize the array y = rmmissing(y); % Remove NaN entries % Remove 0 and Inf entries idx = (y == 0 | y == Inf); y = y(~idx); % If the vector is empty, set it to eps if isempty(y) y = eps; end y = sort(y); % Sort the vector end
To test the cleanData
function, create the parameterized
CleanDataTest
test class in a file named
CleanDataTest.m
in your current folder.
classdef CleanDataTest < matlab.unittest.TestCase properties (TestParameter) data = struct("empty",[],"scalar",0, ... "vector",[13 NaN 0],"matrix",[NaN 2 0; 1 Inf 3]); end methods (Test) function sortTest(testCase,data) actual = cleanData(data); testCase.verifyTrue(issorted(actual)) end function nonemptyTest(testCase,data) actual = cleanData(data); testCase.verifyNotEmpty(actual) end end end
Open the test browser.
testBrowser
Add the tests in CleanDataTest
to the test browser. To add the tests,
click the Add tests button
on the toolbar and then select the
CleanDataTest.m
file. The test browser creates a test suite and
displays the test names in a test tree. Each name includes information about
parameterization.
Run the tests that use the "matrix"
parameter name. To run the
tests, first select the two tests by pressing the Ctrl key while making
selections with the mouse. Then, right-click one of the selected nodes and select
Run Tests. In this example, both the tests pass.

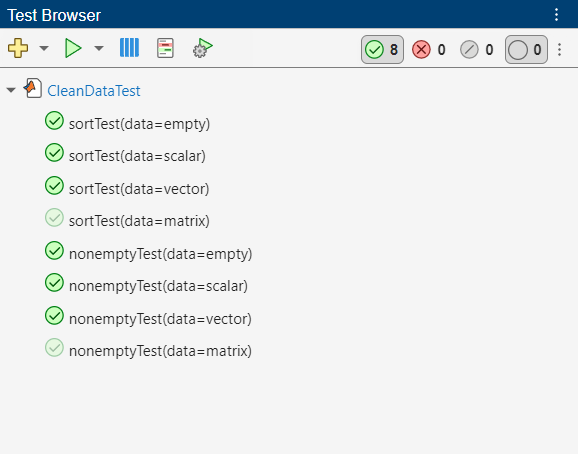

To run the remaining tests, click the Not Run button
on the toolbar. Then, click the Run current suite
button
. All the tests pass.
Run Tests in Parallel
You can customize a test run by selecting options in the Test Browser toolbar. Select an option to run your tests in parallel (requires Parallel Computing Toolbox).
In a file named TestRand.m
in your current folder, create the
parameterized TestRand
class. The class results in 175 tests.
classdef TestRand < matlab.unittest.TestCase properties (TestParameter) dim1 = createDimensionSizes; dim2 = createDimensionSizes; dim3 = createDimensionSizes; type = {'single','double'}; end methods (Test) function testRepeatable(testCase,dim1,dim2,dim3) state = rng; firstRun = rand(dim1,dim2,dim3); rng(state) secondRun = rand(dim1,dim2,dim3); testCase.verifyEqual(firstRun,secondRun) end function testClass(testCase,dim1,dim2,type) testCase.verifyClass(rand(dim1,dim2,type),type) end end end function sizes = createDimensionSizes % Create logarithmically spaced sizes up to 100 sizes = num2cell(round(logspace(0,2,5))); end
Open the test browser.
testBrowser
Add the tests in the TestRand
class to the test browser. To add the
tests, click the Add tests button
on the toolbar and then select the
TestRand.m
file. The test browser creates a test suite and displays
the test names in a test tree.
To run the tests in parallel, first click the Enable parallel test execution button
on the toolbar. Then, click the Run current suite
button
. The test browser divides the test suite into groups
and runs the groups on the available workers. You can see information about the groups
in the Command Window. The test browser might vary the order and number of groups or
which tests it includes in each group.
Split tests into 18 groups and running them on 6 workers. ---------------- Finished Group 1 ---------------- Running TestRand .......... .. Done TestRand __________ ---------------- Finished Group 3 ---------------- Running TestRand .......... . Done TestRand __________ ---------------- Finished Group 2 ---------------- Running TestRand .......... .. Done TestRand __________ ---------------- Finished Group 5 ---------------- Running TestRand .......... . Done TestRand __________ ---------------- Finished Group 4 ---------------- Running TestRand .......... . Done TestRand __________ ---------------- Finished Group 6 ---------------- Running TestRand .......... . Done TestRand __________ ---------------- Finished Group 7 ---------------- Running TestRand .......... Done TestRand __________ ---------------- Finished Group 9 ---------------- Running TestRand .......... Done TestRand __________ ---------------- Finished Group 8 ---------------- Running TestRand .......... Done TestRand __________ ----------------- Finished Group 11 ----------------- Running TestRand ......... Done TestRand __________ ----------------- Finished Group 10 ----------------- Running TestRand .......... Done TestRand __________ ----------------- Finished Group 12 ----------------- Running TestRand ......... Done TestRand __________ ----------------- Finished Group 13 ----------------- Running TestRand ......... Done TestRand __________ ----------------- Finished Group 15 ----------------- Running TestRand ........ Done TestRand __________ ----------------- Finished Group 14 ----------------- Running TestRand ......... Done TestRand __________ ----------------- Finished Group 16 ----------------- Running TestRand ........ Done TestRand __________ ----------------- Finished Group 17 ----------------- Running TestRand ........ Done TestRand __________ ----------------- Finished Group 18 ----------------- Running TestRand ....... Done TestRand __________
Generate Code Coverage Report
Collect code coverage information and generate an HTML code coverage report for your source code when you run tests using the test browser.
In a file named cleanData.m
in your current folder, create the
cleanData
function. The function accepts a numeric array and
returns a cleaned and sorted version of the array. It vectorizes the array, removes the
NaN
, 0
, and Inf
entries, and
finally sorts the vector.
function y = cleanData(X) y = X(:); % Vectorize the array y = rmmissing(y); % Remove NaN entries % Remove 0 and Inf entries idx = (y == 0 | y == Inf); y = y(~idx); % If the vector is empty, set it to eps if isempty(y) y = eps; end y = sort(y); % Sort the vector end
To test the cleanData
function, create the parameterized
CleanDataTest
test class in a file named
CleanDataTest.m
in your current folder.
classdef CleanDataTest < matlab.unittest.TestCase properties (TestParameter) data = struct("empty",[],"scalar",0, ... "vector",[13 NaN 0],"matrix",[NaN 2 0; 1 Inf 3]); end methods (Test) function sortTest(testCase,data) actual = cleanData(data); testCase.verifyTrue(issorted(actual)) end function nonemptyTest(testCase,data) actual = cleanData(data); testCase.verifyNotEmpty(actual) end end end
Open the test browser.
testBrowser
Add the tests in CleanDataTest
to the test browser. To add the tests,
click the Add tests button
on the toolbar, and then select the
CleanDataTest.m
file. The test browser creates a test suite and
displays the test names in a test tree.
To generate a code coverage report for your source code in
cleanData.m
:
Click the Open coverage settings button
on the toolbar, and then select Enable coverage reporting.
In the Coverage Settings section, under Source, click the Add Files button and select the
cleanData.m
file.In the Coverage Settings section, under Report, select Open coverage report after run if the check box is clear.
Run the tests by clicking the Run current suite button
on the toolbar. The test browser runs the tests,
generates an HTML code coverage report, and opens it after the test run. In this
example, all the tests pass and the source code receives full function and statement
coverage.
Related Examples
Version History
Introduced in R2023aR2024a: Run tests using Test Browser in MATLAB Online
You can run script-based, function-based, and class-based tests using the test browser in MATLAB Online™.
R2024a: Test Browser handles valid test files differently in the presence of invalid test files
The behavior of the test browser has changed when a group of files includes both valid and invalid test files:
If you add tests to the test browser by selecting multiple test files, then the test browser imports the tests in the valid test files. In previous releases, the test browser does not import any tests if the group of selected files includes invalid test files.
If you run a group of both valid and invalid test files, then the test browser runs the tests in the valid test files. In previous releases, the test browser does not run any tests if the group includes invalid test files.
An invalid test file is a test file that the testing framework cannot run. Examples
include a test file that contains syntax errors, a function-based test file that is missing
local functions, and a file with a Test
method that is passed an
undefined parameterization property.
