Read and Plot Navigation Data Using MATLAB Support Package for Ryze Tello Drones

This example uses:

Open Script

This example shows how to use the MATLAB® Support Package for Ryze® Tello Drones to acquire and plot the real-time navigation data of the Ryze drone.

Introduction

The MATLAB Support Package for Ryze Tello Drones enables you to control and read the in-flight navigation data of the drone.

In this example, you will learn to read navigation data of the Ryze drone such as the speed, orientation, and height using MATLAB commands.

Required Hardware

To run this example you need the following:

  • A fully charged Ryze Tello drone

  • A computer with a Wi-Fi® connection

Task 1 - Hardware Setup

  • Power on the Ryze drone.

  • Connect your computer to the drone's Wi-Fi network.

Task 2 - Create a Ryze Object

Create a ryze object.

   r = ryze();

Task 3 - Take-off the Drone

Start the Ryze drone flight from a level surface.

Execute the following command at the MATLAB command prompt the takeoff of the drone.

   takeoff(r);

Task 3 - Initialize MATLAB animatedline and figure Window Properties

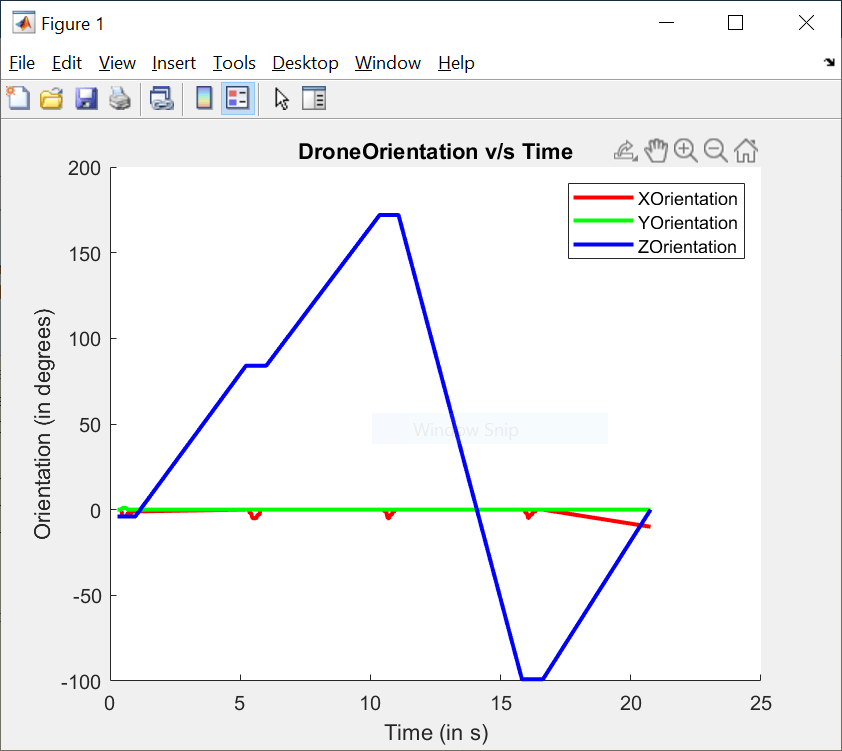

This task shows you how to generate an animated plot for the orientation data.

Use MATLAB animatedline function to plot the variation in drone orientation along the X, Y, and Z axes, separately.

Initialize the figure handle and create animated line instances hx, hy, and hz corresponding to the orientation along the X, Y, and Z axes respectively.

   f = figure;
   hx = animatedline('Color', 'r', 'LineWidth', 2);
   hy = animatedline('Color', 'g', 'LineWidth', 2);
   hz = animatedline('Color', 'b', 'LineWidth', 2);
   title('DroneOrientation v/s Time');
   xlabel('Time (in s)');
   ylabel('Orientation (in degrees)');
   legend('XOrientation', 'YOrientation', 'ZOrientation');

Task 4 - Plot Navigation Data During Drone Flight

Keep flying the drone along a square path and plot orientation data during this flight.

  edgeIndex = 1;
  distance = 0.5;
  speed = 0.5;
  tObj = tic;
  while(edgeIndex <= 4)
      % Move the drone unblocking the command line
      tplot = tic;
      moveforward(r, 'Distance', distance, 'Speed', speed, 'WaitUntilDone', false);
      % Plot orientation while drone is moving
      while(toc(tplot)<distance/speed)
         orientation = rad2deg(readOrientation(r));
         tStamp = toc(tObj);
         addpoints(hx, tStamp, orientation(2));
         addpoints(hy, tStamp, orientation(3));
         addpoints(hz, tStamp, orientation(1));
         drawnow;
      end
     % Turn the drone after it has traversed one side of the square path
     pause(2);
     turn(r, deg2rad(90));
     edgeIndex = edgeIndex+1;
  end

Task 5 - Land the Drone

Plot the final orientation and land the drone.

   orientation = rad2deg(readOrientation(r));
   tStamp = toc(tObj);
   addpoints(hx, tStamp, orientation(2));
   addpoints(hy, tStamp, orientation(3));
   addpoints(hz, tStamp, orientation(1));
   drawnow;
   land(r);

Task 6 - Clean up

When finished, clear the connection to the Ryze drone.

   clear r;
