Use Data Sets Views

You can use the Data Set view for these main functions:

  • Validating calibrations with experimental data

  • Filling tables by reference to a set of experimental data

  • Constructing operating point sets for running optimizations

  • Investigating optimization results and using them to fill tables

For worked examples about data sets, see:

    Data Sets consists of four views. These views display different aspects of the data set. Each view is accessible from the View menu or by clicking the appropriate button on the toolbar.

    Toolbar with four labeled actions: Factor Information, View Data, Fill Table from Data Set, and Plot Outputs.

    • Factor Information

      List of all available project expressions, which can be added to the data set for display and evaluation.

    • View Data

      Displays the data in a table. Individual entries can be altered. Columns of data can be assigned to CAGE expressions.

    • Plot Outputs

      Displays models and features evaluated at the data points (of the data set).

    • Fill Table from Data Set

      This mode allows you to fill lookup tables by reference to experimental data.

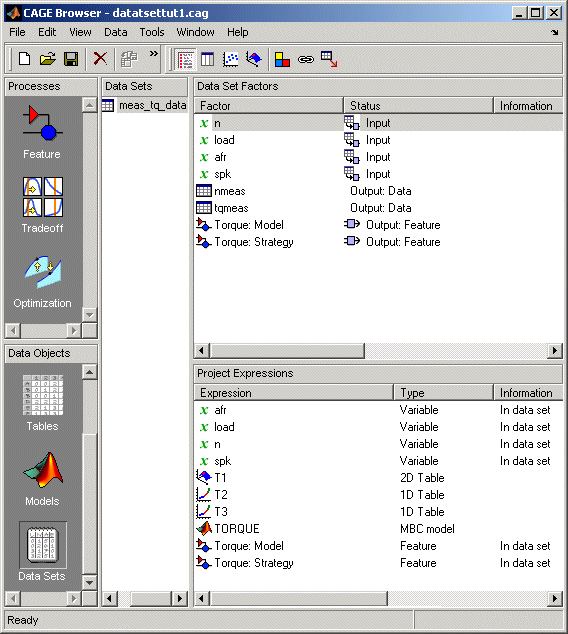

      CAGE Browser window showing data set factors and project expressions with inputs, outputs, and variables.
