Optimization
Use the msbOptimizer object to optimize device
parameters used in Cadence® and Simulink® simulation environments. You can then optimize the circuit
parameters to meet system specifications.
Objects
msbOptimizer | Optimize device parameters to set up simulation environment (Since R2024b) |
Featured Examples

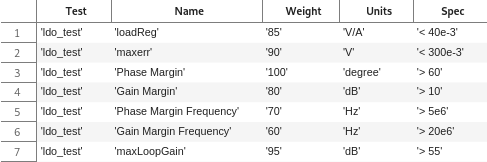

Optimize Transistor Sizes Of Low Dropout Regulator
Use msbOptimizer from Mixed-Signal Blockset™ to optimize transistor sizes of opamp and MOSFET of the Low Dropout Regulator (LDO) for given performance specification. LDOs are widely used in power supply systems and they track a reference voltage with varying load currents.
Optimize Eye Height in SerDes System Model
Optimize the performance metrics of a Simulink® model using the msbOptimizer object. The msbOptimizer uses a solver called surrogateopt from the Global Optimization Toolbox™ for optimization. You can optimize any Simulink model for best performance using the steps mentioned here. In this example, you will optimize the eye metrics of a SerDes system. Eye metrics are an indication of the signal quality and reliability and hence important parameters for serial communication.
