Phase-Shift Beamforming of Plane Wave Signal

This example uses:

Open Script

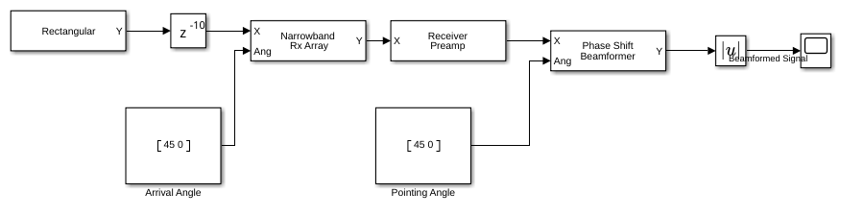

Beamform a plane wave arriving at a 10 element ULA of isotropic antenna elements. All the signals are delayed by 100 samples. The operating frequency of the array is 100 MHz.

model = 'PhaseShiftBeamformer1Example';
open_system(model);
sim(model);
