View Requirement Links from Generated Code

Open Script

View requirements linked to a model by using the Requirements Manager app and model object context menu.

Open Model

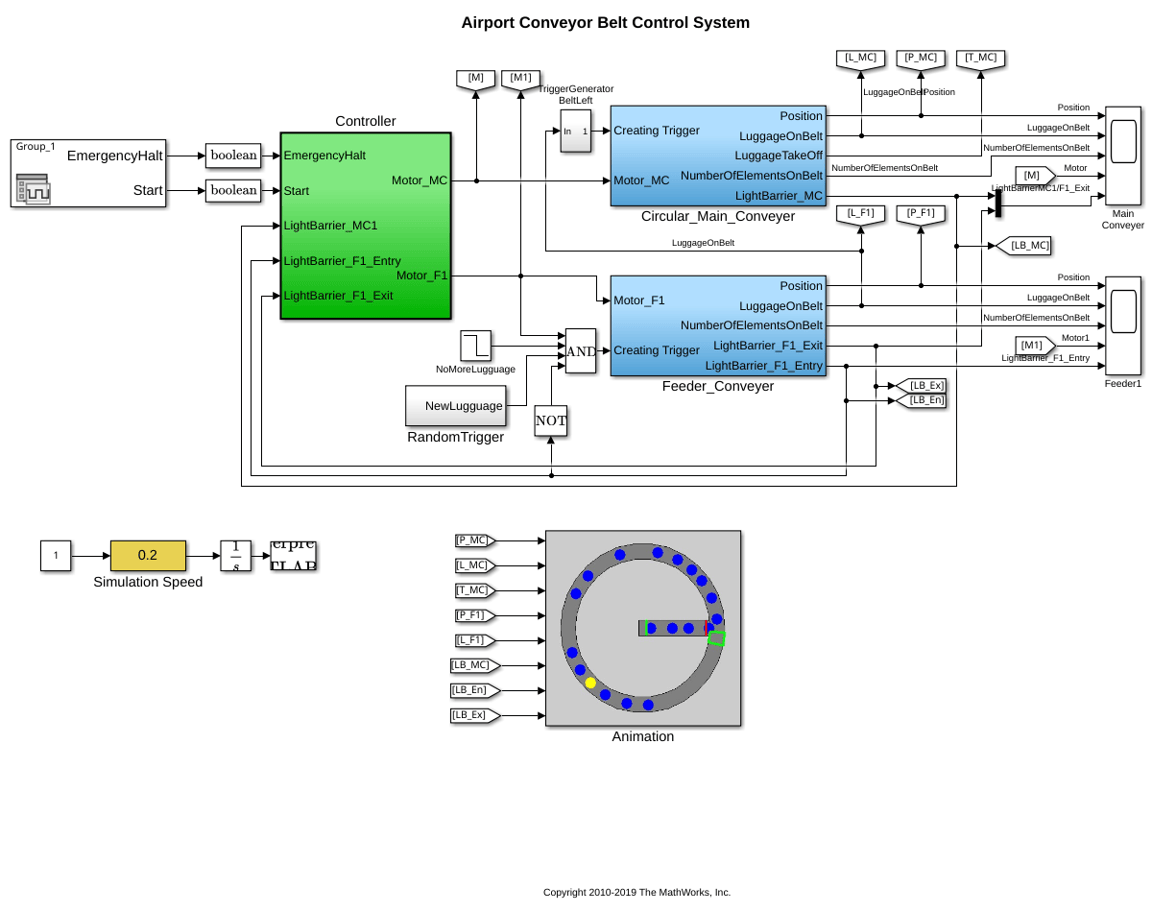

This model shows how to generate code for an airport conveyer belt controller. Open the Controller subsystem, then open the Stateflow® chart inside it. This chart implements the control logic for starting and stopping the conveyer belt motor, depending on sensor inputs.

open_system('plcdemo_airport_conveyor_requirements');

View Requirements

You can view requirements linked to the model by using the Requirements Manager app and by using the object context menu on specific model.

Requirements Manager App

Open the Requirements Manager app. Click a requirement in the Requirements Browser. The corresponding model element is highlighted.

  • Model Object Context Menu

To view the requirement for a model-specific object, right-click an element and in the Requirements Manager app section click on the linked requirements. For example, to view the requirements for the Controller subsystem block, right-click the Controller block and in the Requirements Manager app section, click Implement: R1 Controller Stateflow Chart Requirements.
