Calculate Coverage of Data Couplings and Control Couplings (DCCC) in C/C++ Code

Components

A component is a collection of functions in your source code. Before running DCCC analysis, you must partition the collection of all functions in your source code into disjoint components. To do this, create a component definition file in TOML format that provides the following information for each Component table element:

This specification assigns all functions defined in a source or header file to the component to which that file belongs. If you do not provide this TOML file, or if a subset of your source files do not match any of the glob patterns, Polyspace automatically creates a separate component for each uncategorized source file.

This is an example of a component definition file:

[[Component]]
Name = "Engine"
Spec = [ "**/engine.c", "**/engine.h" ]

[[Component]]
Name = "Controller"
Spec = [ "**/controller.c" ]

This file defines two components Engine and Controller. The ** wildcard recursively matches folders at any level in your file system. For more information on the supported patterns for file selection, see Select Files for Polyspace Project Using Pattern Matching.

Control Couplings

A control coupling is a function call whose call site and callee belong to different components. A test that exercises this function call covers the associated control coupling.

A call that happens via a function pointer or a virtual function (in C++) is referred to as an indirect call. If a test exercises an indirect function call, Polyspace reports the associated control coupling as potentially covered because the software cannot fully confirm the specific call target at run time. For such results, you must manually verify if the test actually exercises the intended call target at run time.

For example, consider an Engine component that defines the start_engine and stop_engine functions:

// COMPONENT: Engine
// FILE: engine.c
#include "engine.h"

rpm_t rpm = {0, 0};
int pressure = 0;

void start_engine(int initial_rpm, int initial_pressure) {
    rpm.value = initial_rpm; /* Data coupling: Write 'rpm.value' */
    rpm.threshold = RPM_THRESHOLD;
    pressure = initial_pressure;
}

void stop_engine(void) {
    rpm.value = 0;
    pressure = 0;
}

Next, consider a Controller component that contains a call to start_engine via a function pointer and a direct call to stop_engine:

// COMPONENT: Controller
// FILE: controller.c
#include "engine.h"

void run_controller(int initial_rpm, int initial_pressure) {
    void (*start_engine_fnptr)(int, int) = start_engine;
    start_engine_fnptr(initial_rpm, initial_pressure); /* Control coupling: Indirect call */

    rpm.value = rpm.value + pressure * 100; /* Data coupling: Read 'rpm.value' */

    if (rpm.value > rpm.threshold) {
        stop_engine(); /* Control coupling: Direct call */
    }
}

Suppose that your test test_controller exercises run_controller(600, 5), and therefore exercises both function calls. The DCCC report indicates that the indirect call is "potentially covered" and the direct call is "covered".

Data Couplings

Software components usually exchange data via shared memory locations. One component writes to a shared memory location and another component reads this location after the previous write operation (but before any subsequent rewrite operation).

For the purposes of calculating data coupling, Polyspace defines a shared memory location as a pair (G,F) where G is a global variable and F is a field associated with the global variable. For non-aggregate types, F is identical to G. For aggregate types like structs, F can be any field or data member of G. For example:

Polyspace defines a data coupling as a pair of memory operations that consist of:

A test that exercises both of these operations is considered to cover this data coupling.

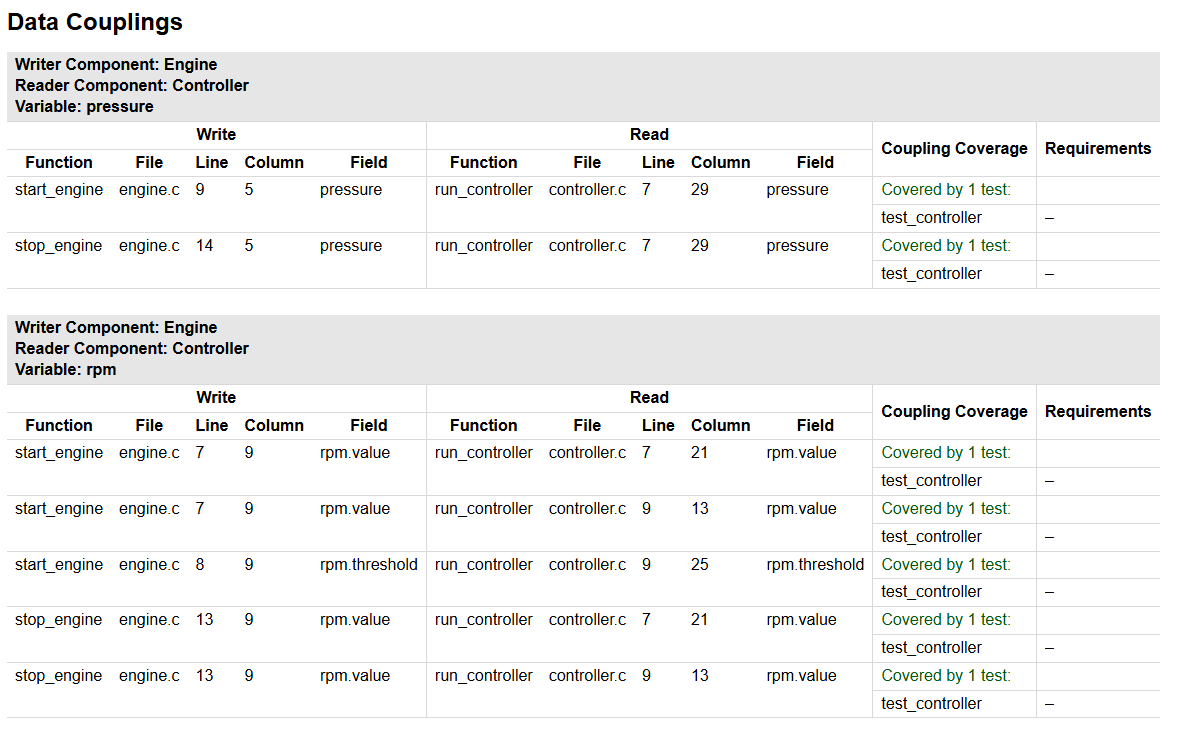

Here is an example data couplings coverage report for the code and test described in the previous section:
