Model Configuration Parameters for Radar Toolbox Support Package for Texas Instruments mmWave Radar Sensors

Hardware Implementation Pane Overview

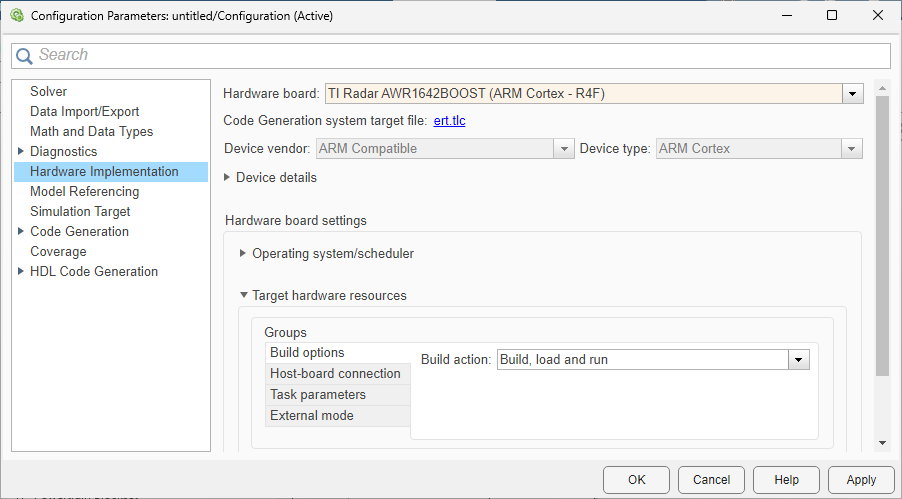

  1. In the Modeling tab of the Simulink® Editor, click Model Settings.

  2. In the Configuration Parameter dialog box, click Hardware Implementation.

  3. Set the Hardware board parameter to a value, such as TI Radar AWR1642BOOST (ARM Cortex - R4F).

  4. The parameter values under Hardware board settings are automatically populated to their default values.

    You can optionally adjust these parameters for your particular use case.

  5. Click Apply to apply the changes.

For more information on selecting a hardware support package and general configuration settings, see Hardware Implementation Pane (Simulink).

Build Options

ParameterDescriptionDefault Value
Build Action

Option to specify whether you want only build or build, load, and run actions during code generation.

Build, load, and run

Host-board connection

ParameterDescriptionDefault Value
Specify Config Port Automatically detect, manually select, or manually specify the COM port of your host computer to communicate with the TI mmWave radar board. Automatically
Baud rateSet baud rate of serial port.Depends on the selected radar board

Task parameters

ParameterDescriptionDefault Value
Stack size Stack size 16

External mode

ParameterDescriptionDefault Value
Communication Interface

Options that you can select for the serial communication.

XCP on Serial

Run external mode in a background thread Run external mode in a background thread. off
Verbose Option to view the External Mode execution progress and updates in the Diagnostic Viewer or in the MATLAB Command Window

on

Set logging buffer size automatically Automatically set the number of bytes to preallocate for the buffer in the hardware during simulation. on
Logging buffer size (in bytes)Specify the memory buffer size for XCP-based External mode simulation2048
