Joystick

Read the state of five-position Joystick

expand all in page
  • Joystick block

Libraries:
Raspberry Pi Blockset / Sense HAT

Description

Read the state of five-position Joystick. The block outputs a value between 0-5 based on the Joystick button pressed. The Joystick button positions are shown.

The positions on the Joystick that correspond to the five values of the block output are:

  • 0- when you have not pressed a button

  • 1- when you press the center button

  • 2- when you press the left button

  • 3- when you press the top button

  • 4- when you press the right button

  • 5- when you press the bottom button.

Note

To generate code C/C++ code for this block, you must have an Embedded Coder® license.

Ports

Output

expand all

This is the output port that returns the value of the button pressed on Joystick.

Data Types: uint8

Parameters

expand all

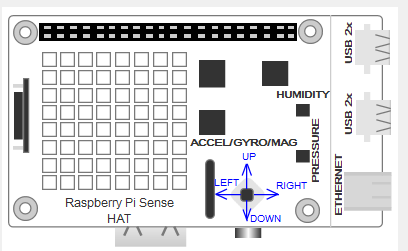

Click this button to know the position of the button pressed. The picture shows the positions of the Joystick button and the position of the other sensors on the SenseHAT board.

Specify how often this block reads the data from the pressure sensor.
