Operations with RF Circuit Objects
This example shows how to create and use RF Toolbox™ circuit objects. In this example, you create three circuit (rfckt
) objects: two transmission lines and an amplifier.
You visualize the amplifier data using RF Toolbox™ functions and retrieve the frequency data that was read from a file into the amplifier rfckt
object. Then you analyze the amplifier over a different frequency range and visualize the results. Next, you cascade the three circuits, analyze the cascaded network and visualize its S-parameters over the original frequency range of the amplifier. Finally, you plot the S11
, S22
, and S21
parameters, and noise figure of the cascaded network.
Create rfckt
Objects
Create three circuit objects: two transmission lines, and an amplifier using data from default.amp
data file.
FirstCkt = rfckt.txline; SecondCkt = rfckt.amplifier('IntpType','cubic'); read(SecondCkt,'default.amp'); ThirdCkt = rfckt.txline('LineLength',0.025,'PV',2.0e8);
View Properties of rfckt
Objects
You can use the get
function to view an object's properties. For example,
PropertiesOfFirstCkt = get(FirstCkt)
PropertiesOfFirstCkt = struct with fields:
LineLength: 0.0100
StubMode: 'NotAStub'
Termination: 'NotApplicable'
Freq: 1.0000e+09
Z0: 50.0000 + 0.0000i
PV: 299792458
Loss: 0
IntpType: 'Linear'
nPort: 2
AnalyzedResult: []
Name: 'Transmission Line'
PropertiesOfSecondCkt = get(SecondCkt)
PropertiesOfSecondCkt = struct with fields:
NoiseData: [1x1 rfdata.noise]
NonlinearData: [1x1 rfdata.power]
IntpType: 'Cubic'
NetworkData: [1x1 rfdata.network]
nPort: 2
AnalyzedResult: [1x1 rfdata.data]
Name: 'Amplifier'
PropertiesOfThirdCkt = get(ThirdCkt)
PropertiesOfThirdCkt = struct with fields:
LineLength: 0.0250
StubMode: 'NotAStub'
Termination: 'NotApplicable'
Freq: 1.0000e+09
Z0: 50.0000 + 0.0000i
PV: 200000000
Loss: 0
IntpType: 'Linear'
nPort: 2
AnalyzedResult: []
Name: 'Transmission Line'
List Methods of rfckt
Objects
You can use the methods
function to list an object's methods. For example,
MethodsOfThirdCkt = methods(ThirdCkt)
MethodsOfThirdCkt = 82x1 cell
{'addlistener' }
{'analyze' }
{'calcgroupdelay' }
{'calckl' }
{'calcpout' }
{'calculate' }
{'calczin' }
{'checkbool' }
{'checkchar' }
{'checkenum' }
{'checkenumexact' }
{'checkfrequency' }
{'checkproperty' }
{'checkproptype' }
{'checkreadonlyproperty'}
{'checkrealscalardouble'}
{'circle' }
{'convertfreq' }
{'copy' }
{'delete' }
{'destroy' }
{'disp' }
{'eq' }
{'extract' }
{'findimpedance' }
{'findobj' }
{'findprop' }
{'ge' }
{'get' }
{'getdata' }
⋮
Change Properties of rfckt
Objects
Use the get
function or Dot Notation to get the line length of the first transmission line.
DefaultLength = FirstCkt.LineLength;
Use the set
function or Dot notation to change the line length of the first transmission line.
FirstCkt.LineLength = .001; NewLength = FirstCkt.LineLength;

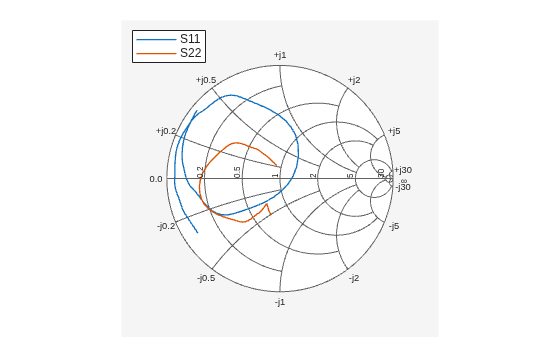

Plot Amplifier S11 and S22 Parameters
Use the smithplot
method of circuit object to plot the original S11
and S22
parameters of the amplifier (SecondCkt
) on a Z Smith chart. The original frequencies of the amplifier's S-parameters range from 1.0 GHz to 2.9 GHz.
figure smithplot(SecondCkt,[1 1;2 2]);

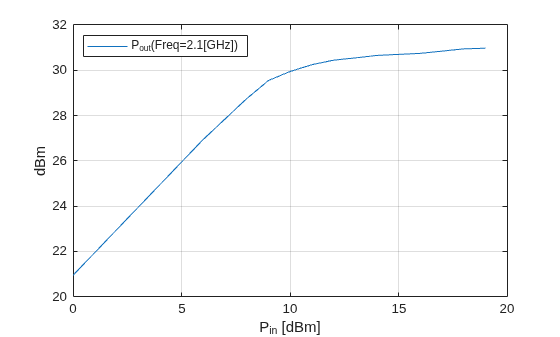

Plot Amplifier Pin-Pout Data
Use the plot
method of circuit object to plot the amplifier (SecondCkt
) Pin-Pout data, in dBm, at 2.1 GHz on an X-Y plane.
figure plot(SecondCkt,'Pout','dBm')
legend('show','Location','northwest');
Get Original Frequency Data and Result of Analyzing Amplifier over Original Frequencies
When the RF Toolbox reads data from default.amp into an amplifier object (SecondCkt
), it also analyzes the amplifier over the frequencies of network parameters in default.amp file and store the result at the property AnalyzedResult
. Here are the original amplifier frequency and analyzed result over it.
f = SecondCkt.AnalyzedResult.Freq; data = SecondCkt.AnalyzedResult
data = rfdata.data with properties: Freq: [191x1 double] S_Parameters: [2x2x191 double] GroupDelay: [191x1 double] NF: [191x1 double] OIP3: [191x1 double] Z0: 50.0000 + 0.0000i ZS: 50.0000 + 0.0000i ZL: 50.0000 + 0.0000i IntpType: 'Cubic' Name: 'Data object'

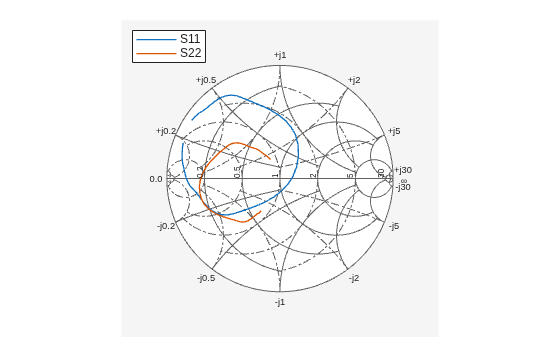

Analyze and Plot S11 and S22 of Amplifier Circuit with Different Frequencies
To visualize the S-parameters of a circuit over a different frequency range, you must first analyze it over the specified frequency range.
analyze(SecondCkt,1.85e9:1e7:2.55e9); smithplot(SecondCkt,[1 1;2 2],'GridType','ZY')
Create and Analyze Cascaded rfckt
Object
Cascade three circuit objects to create a cascaded circuit object, and then analyze it at the original amplifier frequencies which range from 1.0 GHz to 2.9 GHz.
CascadedCkt = rfckt.cascade('Ckts',{FirstCkt,SecondCkt,ThirdCkt});
analyze(CascadedCkt,f)
ans = rfckt.cascade with properties: Ckts: {[1x1 rfckt.txline] [1x1 rfckt.amplifier] [1x1 rfckt.txline]} nPort: 2 AnalyzedResult: [1x1 rfdata.data] Name: 'Cascaded Network'
Figure 1: The cascaded circuit.
Plot S11 and S22 Parameters of Cascaded Circuit

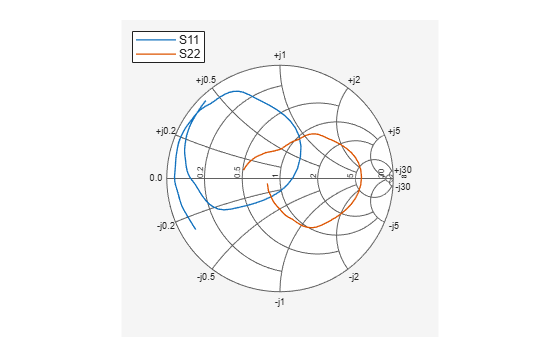

Use the smithplot
method of circuit object to plot S11
and S22
of the cascaded circuit (CascadedCkt
) on a Z Smith chart.
smithplot(CascadedCkt,[1 1;2 2],'GridType','Z')

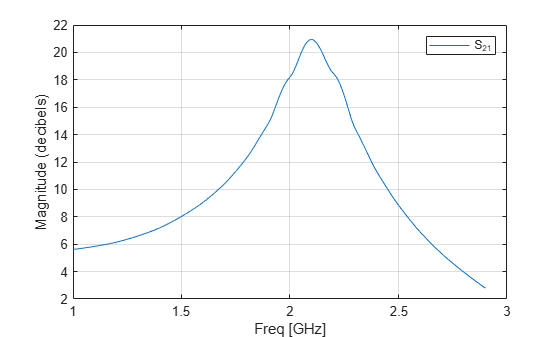

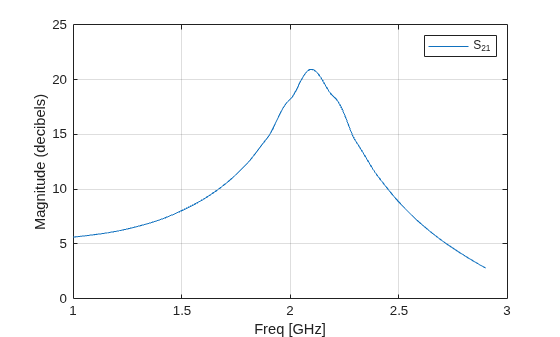

Plot S21 Parameters of Cascaded Circuit
Use the plot method of circuit object to plot S21
of the cascaded circuit (CascadedCkt
) on an X-Y plane.
plot(CascadedCkt,'S21','dB') legend show;

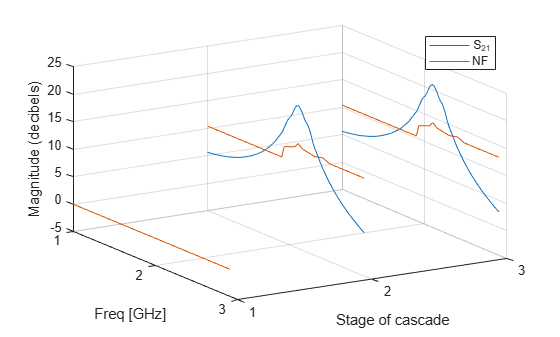

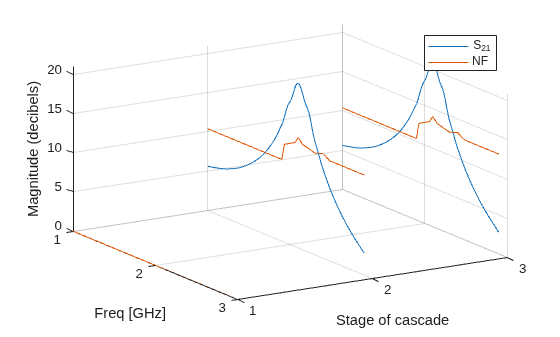

Plot Budget S21 Parameters and Noise Figure of Cascaded Circuit
Use the plot
method of circuit object to plot the budget S21
parameters and noise figure of the cascaded circuit (CascadedCkt
) on an X-Y plane.
plot(CascadedCkt,'budget','S21','NF') legend show;
