Loop Shaping Using the Glover-McFarlane Method

This example shows how to use ncfsyn to shape the open-loop response while enforcing stability and maximizing robustness. ncfsyn measures robustness in terms of the normalized coprime stability margin computed by ncfmargin.

Plant Model

The plant model is a lightly damped, second-order system.

P(s)=16s2+0.16s+16.

A Bode plot shows the resonant peak.

P = tf(16,[1 0.16 16]);
bode(P)

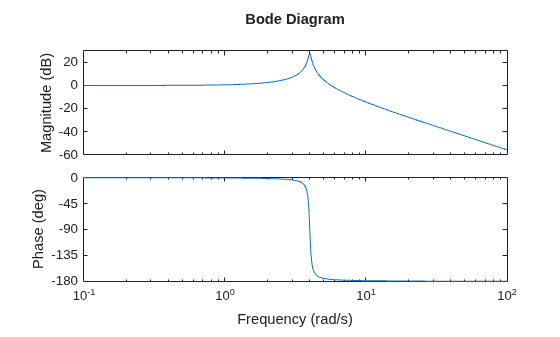

MATLAB figure

Design Objectives and Initial Compensator Design

The design objectives for the closed-loop are the following.

  • Insensitivity to noise, including 60dB/decade attenuation beyond 20 rad/sec

  • Integral action and a bandwidth of at least 0.5 rad/s

  • Gain crossover frequencies no larger than 7 rad/s

In loop-shaping control design, you translate these requirements into a desired shape for the open-loop gain and seek a compensator that enforces this shape. For example, a compensator consisting of a PI term in series with a high-frequency lag component achieves the desired loop shape.

K_PI = pid(1,0.8);
K_rolloff = tf(1,[1/20 1]);
Kprop = K_PI*K_rolloff;
bodemag(P*Kprop); grid

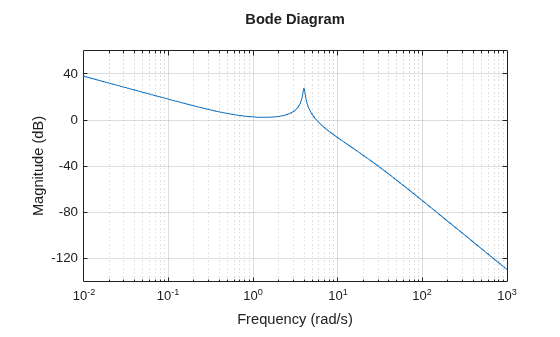

MATLAB figure

Unfortunately, the compensator Kprop does not stabilize the closed-loop system. Examining the closed-loop dynamics shows poles in the right half-plane.

pole(feedback(P*Kprop,1))
ans = 4×1 complex

 -20.6975 + 0.0000i
   0.4702 + 5.5210i
   0.4702 - 5.5210i
  -0.4029 + 0.0000i

Enforcing Stability and Robustness with ncfsyn

You can use ncfsyn to enforce stability and adequate stability margins without significantly altering the loop shape. Use the initial design Kprop as loop-shaping pre-filter. ncfsyn assumes a positive feedback control system (see ncfsyn), so flip the sign of Kprop and of the returned controller.

[K,~,gamma] = ncfsyn(P,-Kprop);
K = -K;   % flip sign back
gamma
gamma =
1.9903

A value of the performance gamma less than 3 indicates success (modest gain degradation along with acceptable robustness margins). The new compensator K stabilizes the plant and has good stability margins.

allmargin(P*K)
ans = struct with fields:
     GainMargin: [6.2984 10.9082]
    GMFrequency: [1.6108 15.0285]
    PhaseMargin: [79.9812 -99.6214 63.7590]
    PMFrequency: [0.4467 3.1469 5.2304]
    DelayMargin: [3.1253 1.4441 0.2128]
    DMFrequency: [0.4467 3.1469 5.2304]
         Stable: 1

With gamma approximately 2, the expect at most 20*log10(gamma) = 6dB gain reduction in the high-gain region and at most 6dB gain increase in the low-gain region. The Bode magnitude plot confirms this. Note that ncfsyn modifies the loop shape mostly around the gain crossover to achieve stability and robustness.

subplot(1,2,1)
bodemag(Kprop,'r',K,'g',{1e-2,1e4}); grid
legend('Initial design','NCFSYN design')
ans =
  Legend (Initial design, NCFSYN design) with properties:

         String: {'Initial design'  'NCFSYN design'}
       Location: 'northeast'
    Orientation: 'vertical'
       FontSize: 7.6500
       Position: [0.2564 0.8637 0.6869 0.0830]
          Units: 'normalized'

  Use GET to show all properties

title('Controller Gains')
subplot(1,2,2)
bodemag(P*Kprop,'r',P*K,'g',{1e-3,1e2}); grid
legend('Initial design','NCFSYN design')
ans =
  Legend (Initial design, NCFSYN design) with properties:

         String: {'Initial design'  'NCFSYN design'}
       Location: 'northeast'
    Orientation: 'vertical'
       FontSize: 8.1000
       Position: [0.2738 0.8583 0.6727 0.0884]
          Units: 'normalized'

  Use GET to show all properties

title('Open-Loop Gains')

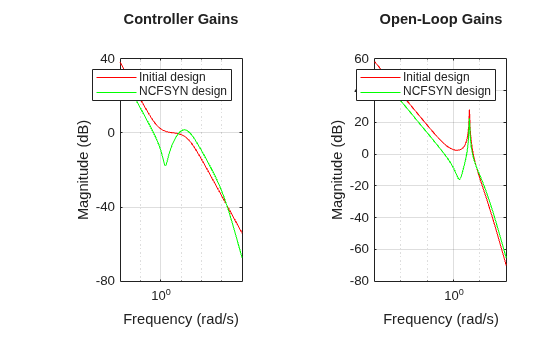

MATLAB figure

Figure 1: Compensator and open-loop gains.

Impulse Response

With the ncfsyn compensator, an impulse disturbance at the plant input is damped out in a few seconds. Compare this response to the uncompensated plant response.

subplot(1,2,1)
impulse(feedback(P,K),'b',P,'r',5);
legend('Closed loop','Open loop')

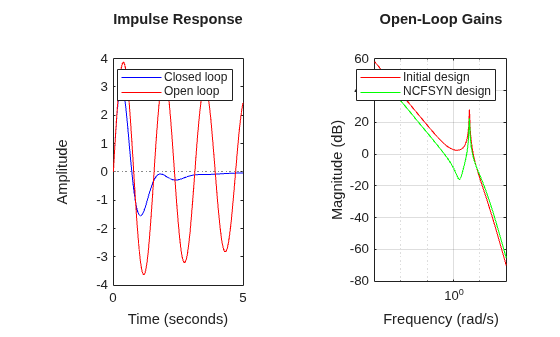

MATLAB figure

ans =
  Legend (Closed loop, Open loop) with properties:

         String: {'Closed loop'  'Open loop'}
       Location: 'northeast'
    Orientation: 'vertical'
       FontSize: 7.6500
       Position: [0.3555 0.8060 0.5010 0.0698]
          Units: 'normalized'

  Use GET to show all properties

subplot(1,2,2);
impulse(-feedback(K*P,1),'b',5)
title('Control action')

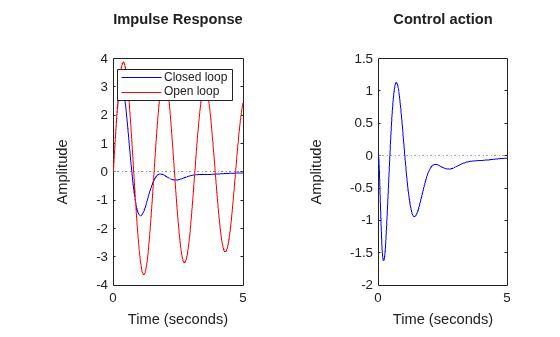

MATLAB figure

Figure 2: Response to impulse at plant input.

Sensitivity Functions

The closed-loop sensitivity and complementary sensitivity functions show the desired sensitivity reduction and high-frequency noise attenuation expressed in the closed-loop performance objectives.

S = feedback(1,P*K);
T = 1-S;
clf
bodemag(S,T,{1e-2,1e2}), grid
legend('S','T')

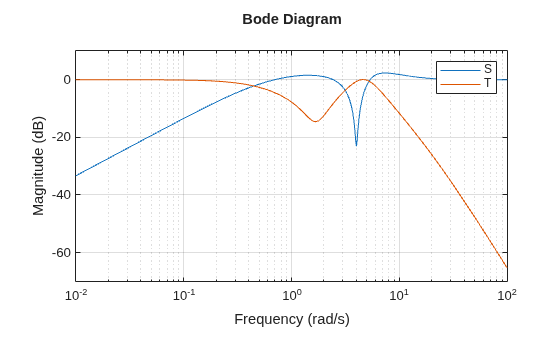

MATLAB figure

ans =
  Legend (S, T) with properties:

         String: {'S'  'T'}
       Location: 'northeast'
    Orientation: 'vertical'
       FontSize: 9
       Position: [0.8399 0.8528 0.1146 0.0938]
          Units: 'normalized'

  Use GET to show all properties

Conclusion

In this example, you used the function ncfsyn to adjust a hand-shaped compensator to achieve closed-loop stability while approximately preserving the desired loop shape.
