8-Speed

Clutch schedule for an eight-speed transmission

expand all in page
  • 8-Speed block

Libraries:
Simscape / Driveline / Transmissions

Description

The 8-Speed block consists of four planetary gear sets and five clutches. The base shaft connects to the:

  • Planet gear carrier of the second planetary gear

  • Other gears through three clutches that determine the power flow path.

The follower shaft connects to the planet gear carrier of the first and fourth planetary gears. The other two clutches serve as brakes, grounding various gears of planetary sets two and three to the transmission housing.

This diagram shows an eight-speed transmission. The labels for the gear components are superimposed on the input and output gears. The table lists the gear and clutch components that are labeled in the diagram.

LabelComponent
P.G.1–P.G.4Planetary gears, 1–4
R Ring gear
CPlanet gear carrier
SSun gear
C–EForward clutches that control the power flow path
A–BForward, braking clutches

Drive Ratios, Clutch Schedule, and Power Flow

The drive ratio between the transmission input and output shafts follows from the elementary gear ratios specified for the gear blocks. The elementary gear ratios are

gx=NRxNSx,

where:

  • NRx is the number of teeth in the planetary ring gear x, where x = 1, 2, 3, and 4.

  • NSx is the number of teeth in the planetary sun gear x, where x = 1, 2, 3, and 4.

The table shows the clutch schedule, drive-ratio expressions, drive-ratio default values, and the power-flow diagrams for each gear of the 8-Speed block. The schedule and gear ratios are based on the manufacturer data for the GM 8L90 eight-speed automatic transmission.

The letters in the clutch schedule columns denote the brakes and clutches. A value of 1 denotes a locked state and a value of 0 an unlocked state. The clutch schedule generates these signals based on the Gear port input signal. The signals are scaled through a Gain block and used as actuation inputs in the clutch blocks.

The power-flow diagrams show the power flow paths between input and output shafts for each gear setting. Power flow is shown in orange. Connections to the transmission housing (a mechanical ground) are shown in black.

GearClutch ScheduleDrive Ratio EquationDefault RatioPower Flow
 ABCDE
810011g21+g20.65

710110g2(1+g1)1+g2(1+g1)0.85

60011111

5011101+g3g4(1+g3+g4+g2g4(1+g1))1.27

4010111+g2+g31+g21.69

301101(1+g3)(1+g4)1+g3+g42.07

211001g2(g4+1)(1+g2)2.96

1111001+g44.55

R11010−g2(g1g4−1)(g2+1)-3.91

Examples

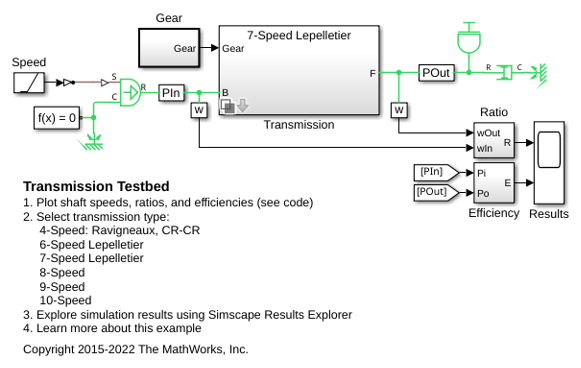

Transmission Testbed

Transmission Testbed

A testbed with interchangeable transmissions. The transmission models vary from classic four speed transmissions to modern seven, eight, nine, and ten speed configurations. The efficiency and drive ratio can be adjusted by varying the components in each individual transmission configuration. The transmission choices are held in a variant subsystem and are selected by either using the hyperlinks in the model or right-clicking the Transmission subsystem, selecting Variant -> Override using, and the desired variant.

Ports

Input

expand all

Specify -1 for reverse, 0 for neutral, and 1–8 for the forward gears.

Data Types: single | double

Conserving

expand all

Conserving port associated with the base shaft.

Conserving port associated with the follower shaft.

Parameters

expand all

Sets the initial engagement or disengagement of the clutches using the clutch schedule. When the transmission is in neutral, there is no power flow from the base shaft to the follower shaft.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2015a
