Air Spring

Sealed translational air spring

Since R2021a

expand all in page

Libraries:
Simscape / Driveline / Couplings & Drives

Description

The Air Spring block represents a generic sealed translational pneumatic spring that isolates equipment from shocks and vibrations. The compressibility of gas gives air springs desirable isolation performance. Air springs are common in automotive and industrial applications where low spring rate and low natural frequency are beneficial. Air springs can help you to:

  • Reduce wear and tear on the sprung mass.

  • Reduce the wear and tear that the unsprung mass deals to infrastructure.

  • Lighten suspension systems to allow for greater total mass.

  • Filter out specific unwanted frequencies.

Air springs consist of bellows that confine a column of compressed air or other gas. The air bears the force of the load, and the bellows hold the air. Sealed air springs maintain a constant mass of air, so the increasing load lowers the volume of air and the resulting spring rate. The reverse is also true. The natural frequency of a sealed air spring system also depends on this relationship. Due to the large amount of variability in air spring requirements and performance, manufacturers commonly provide pressure characteristic tables for each model.

Based on the data that you possess, you can set Parameterization to Load as a function of height or Stiffness as a function of height. The Air Spring block uses the information that you enter to create a lookup table. The lookup table allows the block to simulate the nonlinear force response of an arbitrary air spring. This is the effective force to achieve a given height, which is equivalent to the Load vector parameter or the element-wise product of the Stiffness vector parameter and the Height vector parameter. For more information about using lookup tables in Simscape™, see tablelookup.

The block takes the relative translational motion between port R and port C to evaluate the air spring height and velocity and uses this information to find the appropriate lookup table entry. The block computes the nonlinear effective force response ΣF(x(t),t), such that:

∑F(x(t),t)=−c(x(t))x˙(t)−k(x(t))x(t)+Fexternal,

where

  • x(t) is the height of the spring relative to the undisturbed position.

  • ẋ(t) is the velocity of the spring.

  • -c(x(t))ẋ(t) is the viscous damping force. The damping coefficient c varies with spring height.

  • -k(x(t))x(t) is the stiffness force. The spring coefficient k varies with spring height.

  • Fexternal is the force transmitted through the ports.

You can choose whether to implement hard stops in your model on the Hard Stops tab. When you set Hard stop at full extension or Hard stop at full compression to On, you can specify a boundary height, the stiffness and damping at that height, and the length of the transition region. The hard stops are equivalent to the Translational Hard Stop block.

Variables

Use the Variables tab to set the priority and initial target values for the block variables before simulating. For more information, see Set Priority and Initial Target for Block Variables.

The sign of the Force variable is negative when the load is positive.

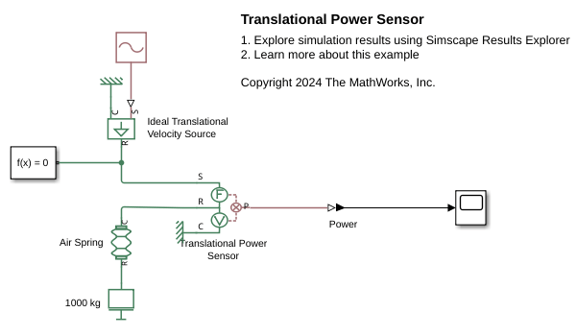

Ports

Conserving

expand all

Mechanical translational conserving port associated with the follower of the air spring. Positive physical signals travel from R to C.

Mechanical translational conserving port associated with the base end of the air spring. Positive physical signals travels from R to C.

Parameters

expand all

Spring

Option to parameterize by height or load. Obtain data for your air spring from manufacturer-supplied specifications or experimental results.

Vector of spring heights. These values correspond to either the load or stiffness values, depending on the way you choose to parameterize the spring. You must specify a vector that has at least three elements.

Vector of spring loads. This vector must be the same length as the Height vector parameter.

Dependencies

To enable this parameter, set Parameterization to Load as a function of height.

Vector of spring stiffness values. This vector must be the same length as the Height vector parameter.

Dependencies

To enable this parameter, set Parameterization to Stiffness as a function of height.

Vector of spring damping values. This vector must be the same length as the Height vector parameter.

Lookup table breakpoint interpolation. The block uses the tablelookup function to model nonlinearity by using array data to map input values to output values:

  • Linear — Select this option for the lowest computational cost.

  • Smooth — Select this option to produce a continuous curve with continuous first-order derivatives.

For more information, see tablelookup.

Lookup table breakpoint extrapolation. This method determines the output value when the input value is outside the range specified in the argument list. The block uses the tablelookup function to model nonlinearity by using array data to map input values to output values:

  • Linear — Select this option to produce a curve with continuous first-order derivatives in the extrapolation region and at the boundary with the interpolation region.

  • Nearest — Select this option to produce an extrapolation that does not go above the highest point in the data or below the lowest point in the data.

  • Error — Select this option to avoid extrapolating when you want your data to be within the table range. If the input signal is outside the range of the table, the simulation stops and generates an error.

For more information, see tablelookup.

Hard Stops

Option to enable a hard stop when the air spring is fully extended. The hard stop occurs as the spring reaches the value of the Maximum height parameter. For more information, see Translational Hard Stop.

Maximum spring height. This parameter determines the location of the full-extension hard stop.

Dependencies

To enable this parameter, set Hard stop at full extension to On.

Stiffness to apply as the spring reaches full extension.

Dependencies

To enable this parameter, set Hard stop at full extension to On.

Damping to apply as the spring reaches full extension.

Dependencies

To enable this parameter, set Hard stop at full extension to On.

Option to enable a hard stop when the air spring is fully extended. The hard stop occurs as the spring reaches the value of the Minimum height parameter. For more information, see Translational Hard Stop.

Minimum spring height. This parameter determines the location of the full-compression hard stop.

Dependencies

To enable this parameter, set Hard stop at full compression to On.

Stiffness to apply as the spring reaches full compression.

Dependencies

To enable this parameter, set Hard stop at full compression to On.

Damping to apply as the spring reaches full compression.

Dependencies

To enable this parameter, set Hard stop at full compression to On.

Stiffness and rebound options for the hard stop model. The block uses a composite implementation of the Translational Hard Stop block. You can choose from the following options:

  • Stiffness and damping applied smoothly through transition region, damped rebound

  • Full stiffness and damping applied at bounds, undamped rebound

  • Full stiffness and damping applied at bounds, damped rebound

  • Based on coefficient of restitution

Dependencies

To enable this parameter, set Hard stop at full extension or Hard stop at full compression to On.

Distance from full compression or full extension where the effects of stiffness and damping are partially applied. When you set Hard stop model to Stiffness and damping applied smoothly through transition region, damped rebound, the block will smoothly transition the onset of stiffness and damping as the spring approaches full extension or full compression.

Dependencies

To enable this parameter, set Hard stop at full extension or Hard stop at full compression to On, and set Hard stop model to Stiffness and damping applied smoothly through transition region, damped rebound.

Ratio of the final to the initial relative speed between the slider and the stop after the slider bounces.

Dependencies

To enable this parameter, set Hard stop at full extension or Hard stop at full compression to On, and set Hard stop model to Based on coefficient of restitution.

Threshold relative speed between the slider and the stop before collision. When the slider hits the case with speed less than the value of this parameter, they stay in contact. Otherwise, the slider bounces. To avoid modeling static contact between the slider and the case, set this parameter to 0.

Dependencies

To enable this parameter, set Hard stop at full extension or Hard stop at full compression to On, and set Hard stop model to Based on coefficient of restitution.

Minimum force needed to release the slider from a static contact mode.

Dependencies

To enable this parameter, set Hard stop at full extension or Hard stop at full compression to On, and set Hard stop model to Based on coefficient of restitution.

Version History

Introduced in R2021a
