Simple Rotational Mechanical System
This example shows a simple system in the Rotational Mechanical domain. You can connect this system to other domains. The Simple Gear block reduces the rotational velocity turn a Rotational Free End block. The Scope block visualizes the rotational velocity at the follower port of the Simple Gear block. The example contains different versions of the same model to demonstrate Simscape Driveline concepts.
Beginnging System

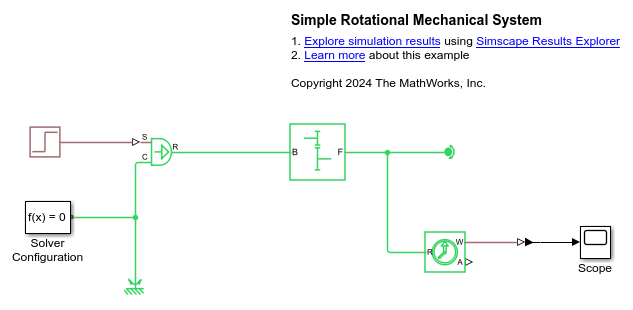

The base model uses an ideal source block to drive a Simple Gear block, which reduces the shaft output speed.
open_system('SimpleRotationalMechanicalSystem');
Dynamic System
The dynamic version of the model adds inertia to the system to demonstrate the effects of adding dynamic forces to a Simscape Driveline model.
open_system('SimpleRotationalMechanicalSystem_dynamic');
Translational System

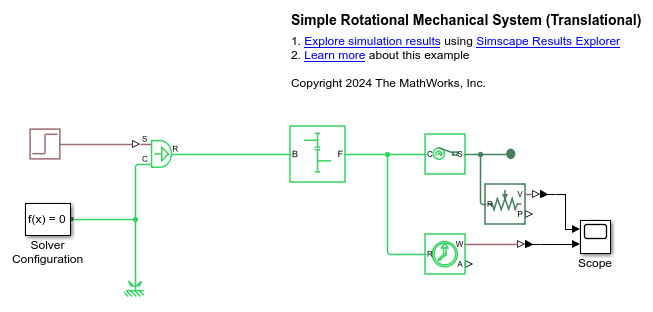

The translational version of the model converts the rotational motion of the base model into translational motion.
open_system('SimpleRotationalMechanicalSystem_translational');
Electrical System

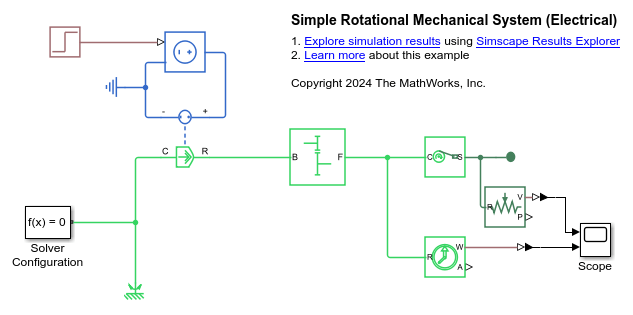

The electrical version of the model replaces the ideal source with an electrical driving source powered by an electrical circuit.
open_system('SimpleRotationalMechanicalSystem_electrical');
Translational System
The thermal version of the model tracks the heat flow out of the Simple Gear block when meshing losses are enabled.
open_system('SimpleRotationalMechanicalSystem_thermal');
