View and Run Generated Code by SimBiology Model Builder

Load Bioavailability Model

Enter the following command to load the bioavailability model in SimBiology Model Buidler.

openExample('simbio/CodeCaptureSimBiologyModelBuilderExample')

Generate Code for Updating Model Components and Graphical Block Properties

The next sets of instructions show you how to perform the following modeling actions and generate equivalent MATLAB code:

Open Code Capture Tool

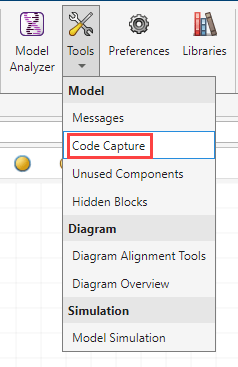

On the Home tab of the app, select Tools > Code Capture. The app shows the generated code in the Code tab of the Model Tools panel for your modeling actions.

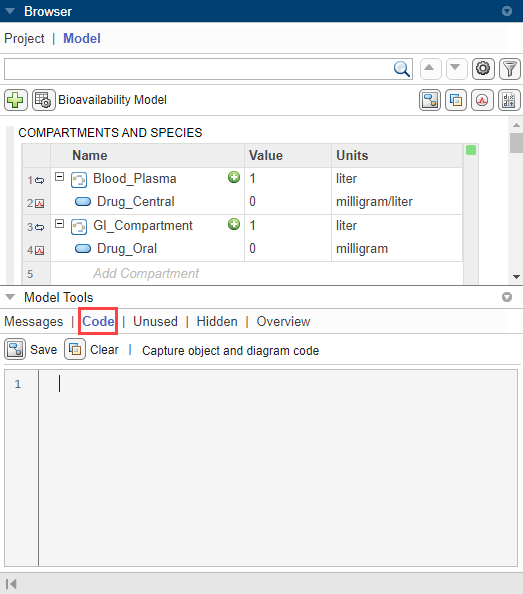

Alternatively, you can expand the Model Tools panel and click Code.

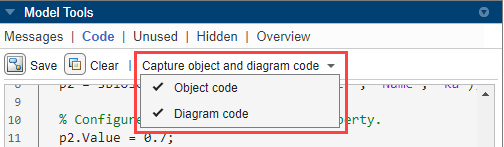

Tip:

Change Model Parameter Values

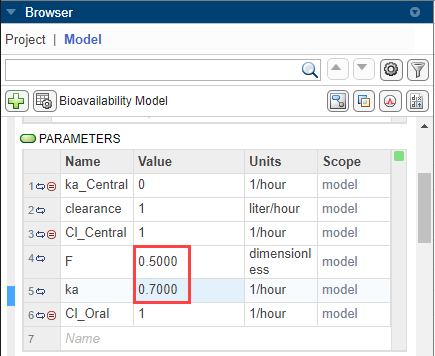

In the Browser panel, scroll down to the Parameters table. Change the values of parameters F (bioavailability of a drug) and ka (total rate of elimination) to 0.5 and 0.7, respectively.

The Code Capture tool shows the following code.

% Query object.
p1 = sbioselect(m1, 'Type', 'parameter', 'Name', 'F');
% Configure SimBiology component property.
p1.Value = 0.5;
% Query object.
p2 = sbioselect(m1, 'Type', 'parameter', 'Name', 'ka');
% Configure SimBiology component property.
p2.Value = 0.7;

Add New Compartment

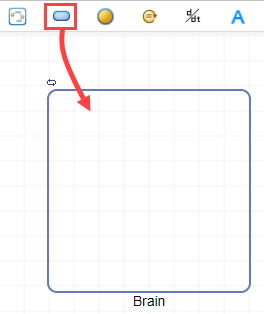

Drag and drop a compartment block into the diagram.

Double-click compartment_1 and rename to Brain. Drag and drop a species block into the Brain compartment.

Double-click species_1 and rename to Drug_Brain.

The Code Capture tool shows the following code.

% Add compartment to model.
c1 = addcompartment(m1, 'compartment_1');
% Rename SimBiology component.
rename(c1, 'Brain');
% Add species to compartment.
s1 = addspecies(c1, 'species_1');
% Rename SimBiology component.
rename(s1, 'Drug_Brain');

Change Color of Species Block

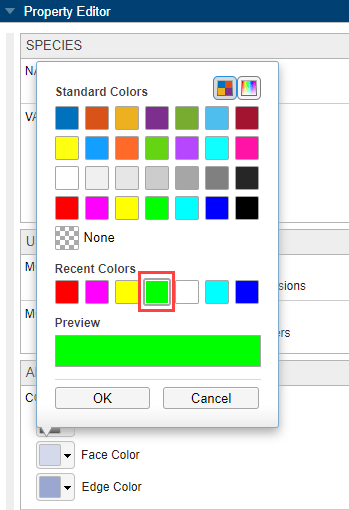

Click the species Drug_Brain in the diagram. In the Property Editor pane, under the Appearance section, click Face Color and select the green color. Click OK.

The Code Capture tool shows the following code.

% Configure SimBiology block property.
simbio.diagram.setBlock(s1, 'FaceColor', [0, 1, 0]);

Tip: For details about this function, see simbio.diagram.setBlock.

Save Generated Code

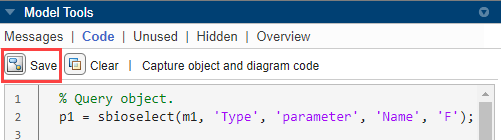

Click Save in the toolbar of the Code Capture tool.

The app then creates an untitled function file in the MATLAB editor with the generated code in it. Click Save and save the file to your local folder using runcode.m as the file name.

Modify Generated Code

For the purposes of this example, modify the code for the following changes:

In the runcode.m file, change the values of p1 (parameter F) and p2 (parameter ka).

p1.Value = 0.4;
p2.Value = 0.6;

To add a new compartment called Liver with a species named Drug_Liver, update two lines of code to rename the compartment c1 and species s1 as follows.

rename(c1, 'Liver');
rename(s1, 'Drug_Liver');

To change the color of all species to the green color, comment out the setBlock line of code and add two new lines of code as follows.

% simbio.diagram.setBlock(s1, 'FaceColor', [0, 1, 0]);
allSpecies = sbioselect(m1, 'Type', 'species');
simbio.diagram.setBlock(allSpecies, 'FaceColor', [0, 1, 0]);

Run Generated Code

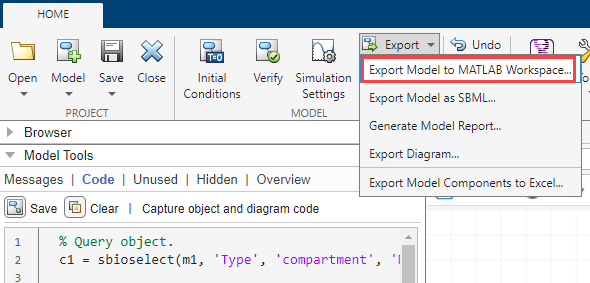

To run runcode.m at the command line, you first need to export the corresponding model from the app to the workspace. Go back to the Model Builder app. Select Export > Export Model to MATLAB Workspace. Specify the model name as m1, keep the overwrite check box selected, and click OK.

Keep the app open because the generated code contains graphical changes. Tip: If you have only model component (object) changes, you can optionally close the app after exporting the model to the workspace.

Next, change the current directory to where the runcode.m file is saved. One way to do this is to go back to the Editor window. Right-click the runcode.m tab and select Change Current Folder to.

At the command line, enter:

runcode(m1);

Go back to the Model Builder app to verify the changes you made.

Actions Not Captured

The Code Capture tool does not generate code for the following actions in the app.
