Transducer Gain Testbench

Measures transducer gain of system

expand all in page
  • Transducer Gain Testbench block

Libraries:
RF Blockset / Circuit Envelope / Testbenches

Description

Use the Transducer Gain Testbench to measure the transducer gain (GT) of an RF device under test (DUT).

Examples

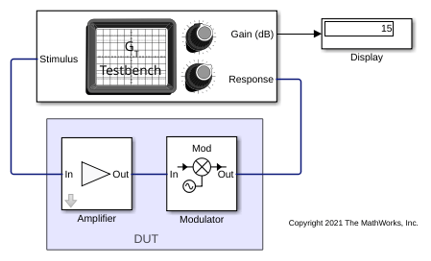

Measure Transducer Gain of Device Under Test

Measure Transducer Gain of Device Under Test

Example for Transducer Gain Testbench block.

Parameters

expand all

Parameters

Select to use testbench internal configuration block. Clear this parameter to specify your own configuration block.

Note

When using your own configuration block, parameters such as step size, fundamental tones, harmonic order, and simulate noise may affect the measured results.

Select to enable noise modeling in the stimulus signal entering the DUT and inside the DUT.

Dependencies

To enable this parameter, select Use internal Configuration block.

Input power to DUT, specified as a scalar in dBm. You can change the input power by entering the value in the text box or selecting a value using the knob. The specified input power represents the power available at the input ports of the DUT. The valid values are between -90 dBm and 60 dBm.

Carrier frequency of the DUT, specified as a scalar in Hz. Input frequency must be greater than baseband bandwidth.

Output frequency of DUT, specified as a scalar in Hz. Output frequency must be greater than baseband bandwidth.

Baseband bandwidth of input signal, specified as a scalar in Hz. The value must be greater than zero.

Source resistance to measure DUT, specified as a positive finite scalar in ohms.

Load resistance to measure DUT, specified as a positive finite scalar in ohms.

Select to view response spectrum using a spectrum scope during simulation.

Note

To view the response spectrum using a Spectrum Analyzer, you need a DSP System Toolbox™ license.

Select to internally ground and hide the negative terminals. Clear to expose the negative terminals. By exposing these terminals, you can connect them to other parts of your model.

References

[1] Razavi, Behzad. RF Microelectronics. Upper Saddle River, NJ: Prentice Hall, 2011.

[2] Grob, Siegfried and, Jurgen Lindner. “Polynomial Model Derivation of Nonlinear Amplifiers”. Department of Information Technology, University of Ulm, Germany.

Version History

Introduced in R2018a
