DQ0 组件
R2026b在旋转直轴 (D)、交轴 (Q) 和零序 (0) 参考系中对电气系统进行建模。使用基于 DQ0 的表示，可以简化平衡和非平衡三相系统的分析与控制设计，尤其适用于涉及同步电机、电力电子和控制环路的应用。
将 DQ0 端口连接到在传统 abc 坐标系中运行的组件时，请使用适当的变换以保持物理一致性。
Simscape 模块
 | Converter (Three-Phase, DQ0) | Three-phase bidirectional AC/DC converter in direct-quadrature-zero reference frame (自 R2026b 起) |
 | Hybrid Excitation PMSM (DQ0) | Direct-quadrature-zero representation of hybrid-excitation synchronous machine with three-phase wye-wound stator (自 R2026b 起) |
 | PMSM (DQ0) | Direct-quadrature-zero representation of permanent magnet synchronous machine (自 R2024b 起) |
 | Dynamic Load (Three-Phase, DQ0) | Balanced three-phase dynamic load in direct-quadrature-zero reference frame (自 R2026b 起) |
精选示例

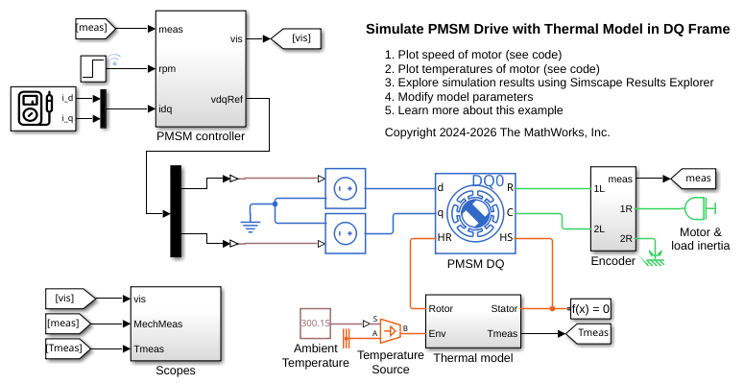

在 DQ 参考系中对包含热模型的三相 PMSM 驱动进行仿真
此示例展示了如何在直轴-交轴 (DQ) 参考系中对永磁同步电机 (PMSM) 进行仿真。该 PMSM 包含热模型和经验铁损。要设计 PMSM 控制器并实现所需性能，请选择模型的架构和增益。定子和转子的初始温度为 25 摄氏度。环境温度为 27 摄氏度。Scopes 子系统包含示波器，可用于查看仿真结果。

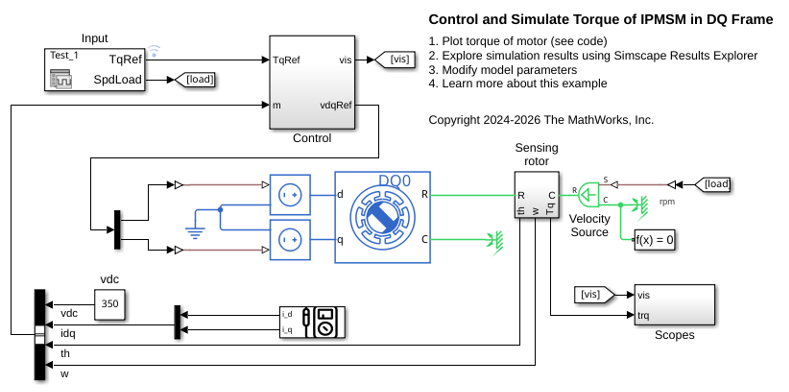

Control and Simulate Torque of IPMSM in DQ Frame
Control the torque in an automotive electrical traction drive of an interior permanent magnet synchronous machine (IPMSM). The example controls and simulates the torque in the rotor direct-quadrature (DQ) reference frame. You can use the DQ reference frame to design the controller and to speed up the simulation. The IPMSM operates in both motoring and generating modes according to the load. An ideal angular velocity source provides the load. The Control subsystem uses an open-loop approach to control the IPMSM torque and a closed-loop approach to control the current. The control algorithm converts the torque request to the relevant current references. The reference DQ voltages feed the IPMSM. The simulation involves several torque steps in both motor and generator modes.

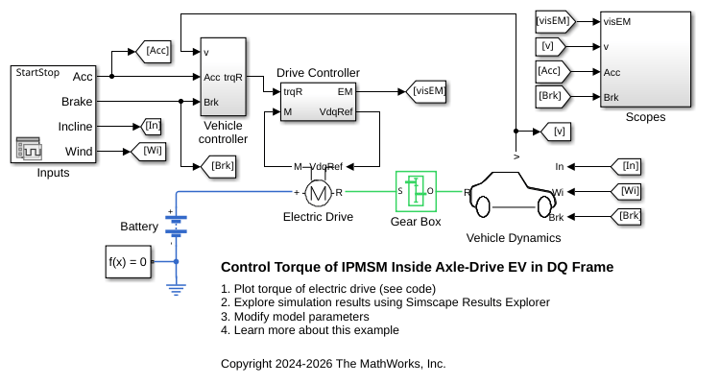

Control Torque of IPMSM Inside Axle-Drive EV in DQ Frame
Models an interior permanent magnet synchronous machine (IPMSM) propelling a simplified axle-drive electric vehicle. The example controls and simulates the torque in the rotor direct-quadrature (DQ) reference frame. The IPMSM operates in both motoring and generating modes. A fixed-ratio gear-reduction model implements the vehicle transmission and differential. The Vehicle Controller subsystem converts the driver inputs into a relevant torque command. The Drive Controller subsystem controls the torque of the IPMSM. The control algorithm is implemented in continuous time. To simulate this model faster, this example uses a variable-step solver. The Scopes subsystem contains scopes that allow you to see the simulation results.

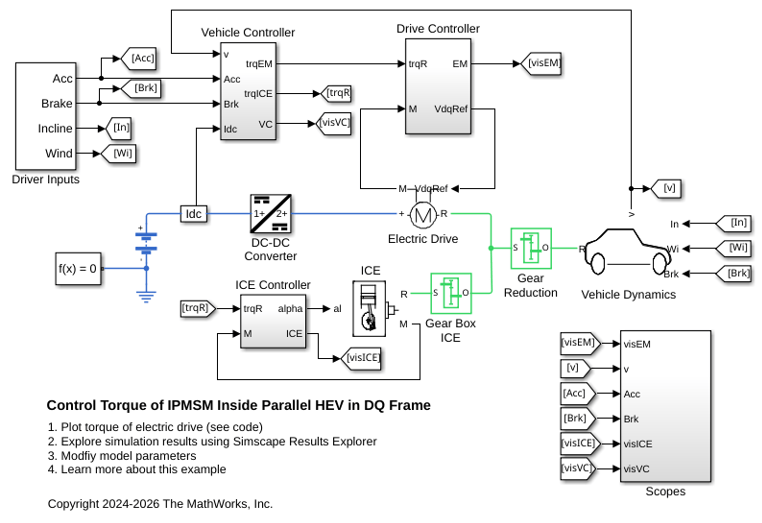

Control Torque of IPMSM Inside Parallel HEV in DQ Frame
Models a simplified parallel hybrid electric vehicle (HEV). An interior permanent magnet synchronous machine (IPMSM) and an internal combustion engine (ICE) provide the vehicle propulsion. This example controls and simulates the torque in the rotor direct-quadrature (DQ) reference frame. The IPMSM operates in both motoring and generating modes. A fixed-ratio gear-reduction model implements the vehicle transmission and differential. The Vehicle Controller subsystem converts the driver inputs into torque commands. A Stateflow® chart implements the vehicle control strategy. The ICE Controller subsystem controls the torque of the combustion engine. The EM Controller subsystem controls the torque of the IPMSM. To simulate this model faster, this example uses a variable-step solver. The Scopes subsystem contains scopes that allow you to see the simulation results.
