Negative Supply Rail
R2026bIdeal negative supply rail
Negative Supply Rail block
To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.
Libraries:
Simscape /
Electrical /
Sources
Description
The Negative Supply Rail block represents an ideal negative supply rail. Use this block instead of the Simscape™ DC Voltage Source block to define the output voltage relative to the Simscape Electrical Reference block that must appear in each model.
Note
Do not attach more than one Negative Supply Rail block to any connected line.
Examples

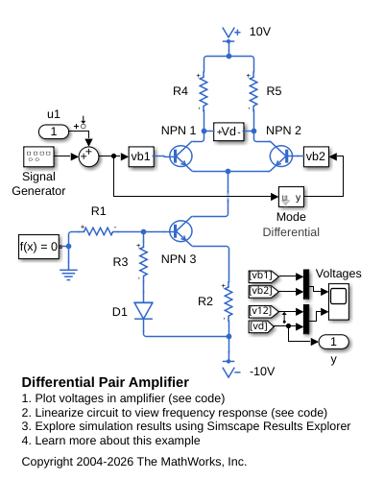

Differential Pair Amplifier
A differential pair amplifier circuit. The circuit can be used to explore the properties of a differential pair amplifier. The model can be tested using differential and common-mode inputs. The balanced output has zero gain in common-mode provided that the two transistors have identical properties.
Ports
Conserving
Parameters
Programmatic Use: Add Block
To add the block programmatically, use the add_block function with one of these library block paths as the source.
"ee_lib/Sources/Negative Supply Rail"
Example: add_block("ee_lib/Sources/Negative Supply Rail","myModel/myBlock",MakeNameUnique="on")
Extended Capabilities
Version History
Introduced in R2008a
