可再生能源
R2026a利用这些示例了解如何对光伏系统和风能系统及发电机进行建模。
精选示例
Model Doubly-Fed Induction Generator Wind Power System
Model a doubly-fed induction generator (DFIG)-based, three-phase, grid-connected wind power system. The DFIG-based, or type 3, electrical system is one of the most-used control schemes for extracting electrical energy from a wind turbine.
控制三相太阳能逆变器
此示例展示了如何使用 Solar PV Controller (Three-Phase) 模块控制三相单级太阳能光伏 (PV) 逆变器。在并网光伏电站中，光伏控制器从太阳能电池阵列中提取最大功率并将其馈送至电网。为了提取最大可用光伏功率，控制器采用最大功率点追踪 (MPPT) 算法。
使用简化发电机对风力发电系统进行建模
此示例展示了如何使用 Simplified Generator 模块对一个低保真度的三相并网风力发电系统进行建模。可使用此低保真度电气模型进行规划和变桨控制研究。
评估太阳能光伏电站构网型电池储能系统的性能
此示例展示了如何评估构网型 (GFM) 电池储能系统 (BESS) 在高太阳能光伏 (PV) 渗透率下维持电力系统稳定能力。您可以在正常运行或发生意外状况（例如光伏功率大幅下降、负载显著变化、电网断电和故障）期间评估电力系统。您可以在 MATLAB® 中下载此模型，或从 MATLAB Central File Exchange 和 GitHub® 访问此模型。
Energy Scavenger
How the performance of a rotational energy scavenger can be explored using a simple representative model. Electrical energy is produced from an off-center mass attached to the shaft of a DC motor. The mass, geometry, motor and electrical parameters must be matched to the expected mechanical excitation. The generated electrical power is less than the extracted mechanical power primarily due to motor winding losses and viscous damping for the rotor. This example is based on Nunna, K. "Constructive interconnection and damping assignment passivity-based control with applications", Imperial College London (2014). The model here is simplified in that the DC-DC converter is omitted.

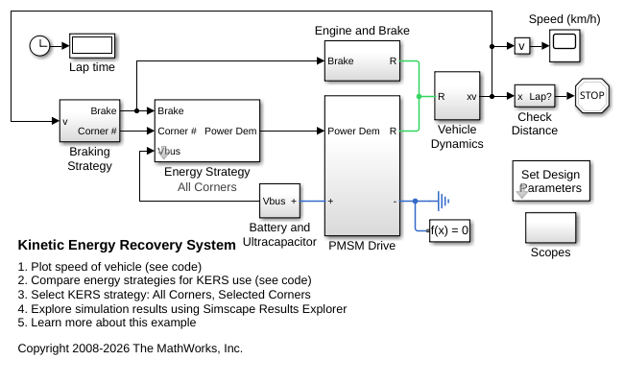

Kinetic Energy Recovery System
Operation of a Kinetic Energy Recovery System (KERS) on a Formula 1 car. The model permits the benefits to be explored. During braking, energy is stored in a lithium-ion battery and ultracapacitor combination. It is assumed that a maximum of 400KJ of energy is to be delivered in one lap at a maximum power of 60KW. Design parameters are the weight of the battery, ultracapacitor and motor-generator. If these parameters are all set to the very small value of 0.01kg, the lap time is 95.0 seconds, this corresponding to a car with no KERS. With default values set here, approximately 1/4 of a second is saved on the lap time when using any available electrical power when not braking. Applying KERS only to selected corners requires a larger ultracapacitor to show any significant benefit.

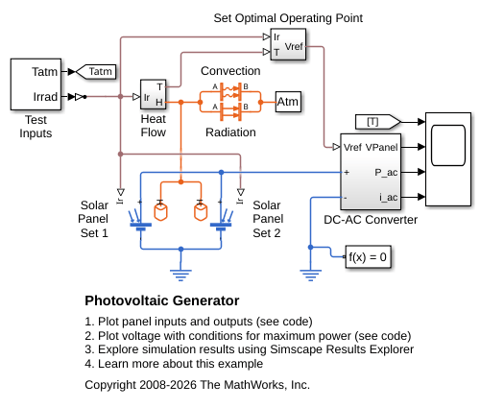

Photovoltaic Generator
Create system-level model of a photovoltaic generator that can be used to simulate performance using historical irradiance data. Here the model is tested by varying the irradiance which approximates the effect of varying cloud cover. Power generation steps immediately following the irradiance change. Environmental temperature also varies during the test. The DC-AC converter efficiency is assumed to be a fixed 97 percent, this value having been determined from the SolarPowerInverter example model.
太阳能电池功率曲线
此示例展示了如何生成太阳能电池阵列的功率-电压曲线。理解功率-电压曲线对于逆变器设计至关重要。理想情况下，在给定辐照度水平和电池板温度下，太阳能电池阵列应始终以峰值功率运行。

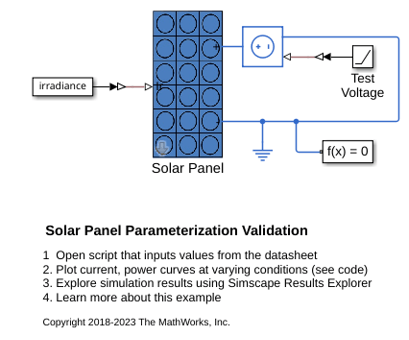

Solar Panel Parameterization Validation
Model a solar panel by using data from a manufacturer datasheet. This example uses the datasheet data to generate current-voltage and power-voltage curves for the solar panel. The power-voltage curve helps you identifying the peak power for a given irradiance level and panel cell temperature. This peak power is then useful when designing an inverter.
太阳能功率逆变器
确定单级太阳能逆变器的效率。
三相异步风力发电机
对用作风力发电机的感应电机建模。
三相同步电机调速器控制设计
此示例脚本展示了如何对 Simscape™ Electrical™ 模型进行线性化，以支持控制系统稳定性分析和设计。所使用的示例模型为 SMGovernorDesign。
Photovoltaic Thermal (PV/T) Hybrid Solar Panel
Model a multi-domain power cogeneration system using Simscape™, Simscape Electrical™, and Simscape Fluids™.

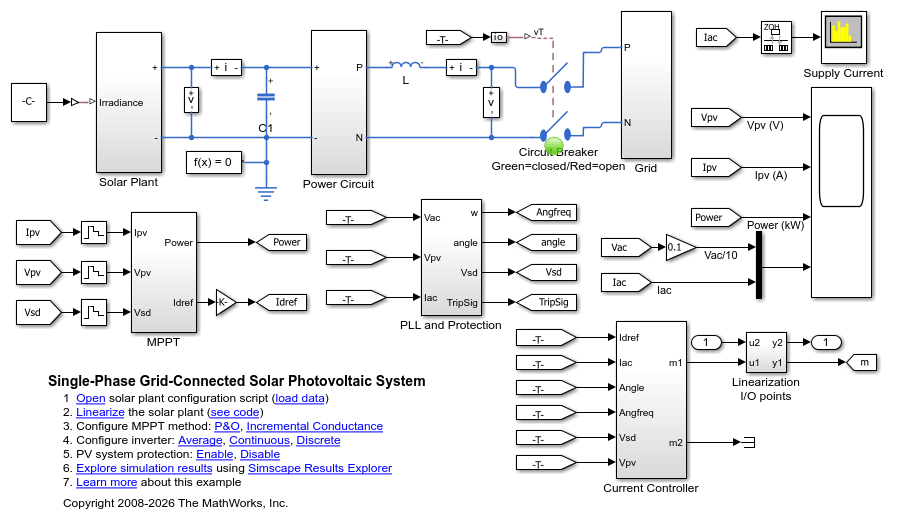

单相并网太阳能光伏系统
此示例展示如何对屋顶单相并网太阳能光伏 (PV) 系统进行建模。此示例可为确定所需电池板数量和连接拓扑以实现目标功率提供设计依据。该模型表示一个没有中间 DC-DC 转换器的并网屋顶太阳能光伏系统。为了对模型进行参数化，此示例使用了太阳能电池板制造商数据手册中的数据。太阳能以单位功率因子 (UPF) 注入电网。

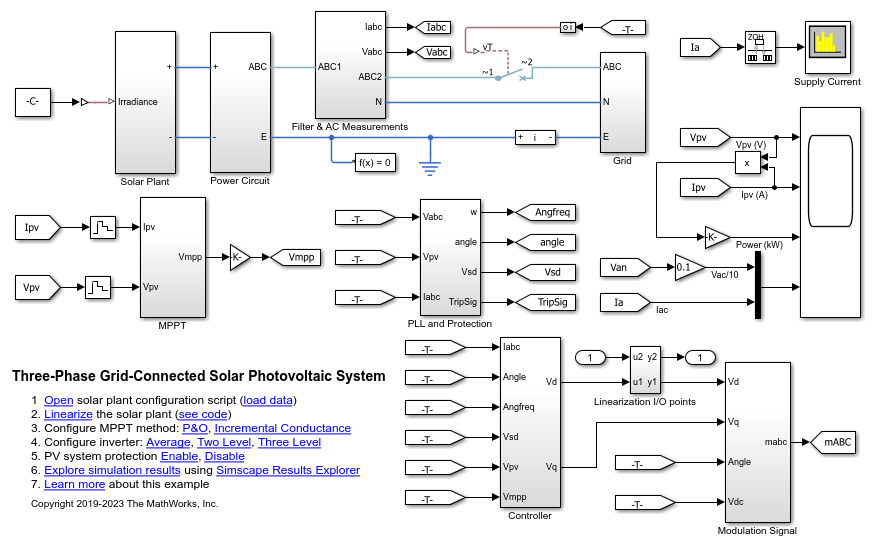

三相并网太阳能光伏系统
此示例展示如何对三相并网太阳能光伏 (PV) 系统进行建模。此示例可为确定所需电池板数量和连接拓扑以实现目标功率提供设计依据。该模型表示一个没有中间 DC-DC 转换器的并网屋顶太阳能光伏系统。为了对模型进行参数化，此示例使用了太阳能电池板制造商数据手册中的数据。太阳能以单位功率因子 (UPF) 注入电网。

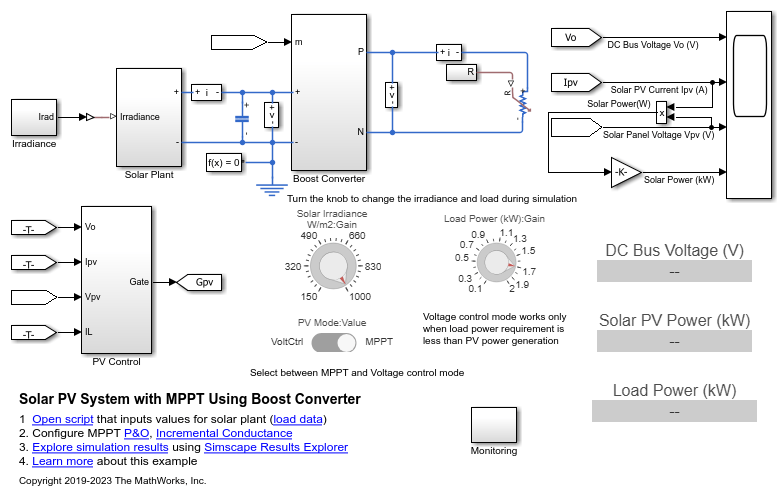

采用升压转换器的 MPPT 太阳能光伏系统
此示例展示了用于控制太阳能光伏 (PV) 系统功率输出的升压转换器的设计。在本示例中，您将学习如何：

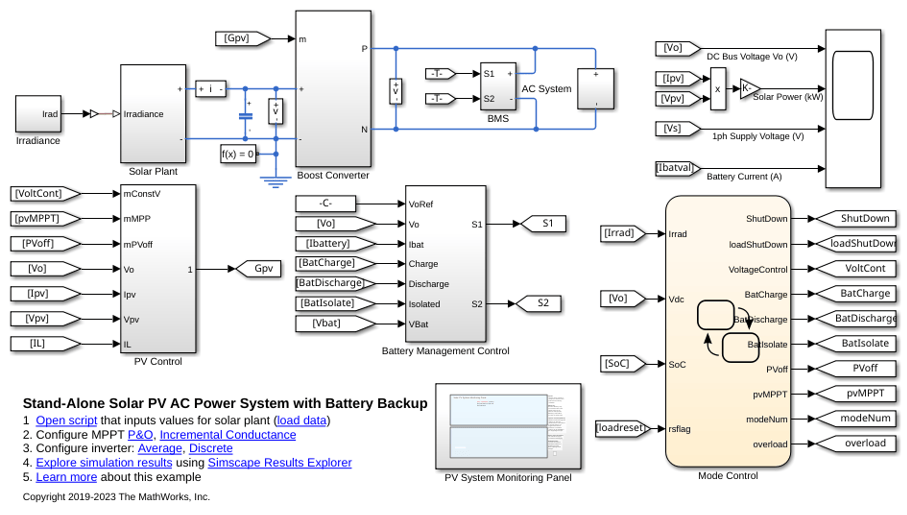

Stand-Alone Solar PV AC Power System with Battery Backup
The design of a stand-alone solar photovoltaic (PV) AC power system with battery backup. In this example, you learn how to:

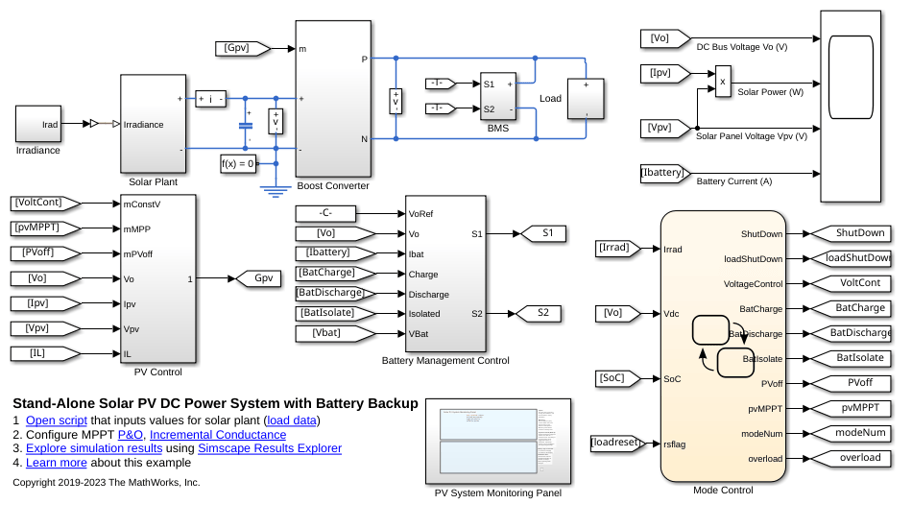

Stand-Alone Solar PV DC Power System with Battery Backup
The design of a stand-alone solar photovoltaic (PV) DC power system with battery backup. In this example, you learn how to:
Piezo Bender Energy Harvester
Model a device that harvests energy from a vibrating object by using a piezo bender. The device uses this energy to charge a battery and power a load. These devices are common in low-power applications that require energy autonomy, such as wearable devices or sensors in vehicles.

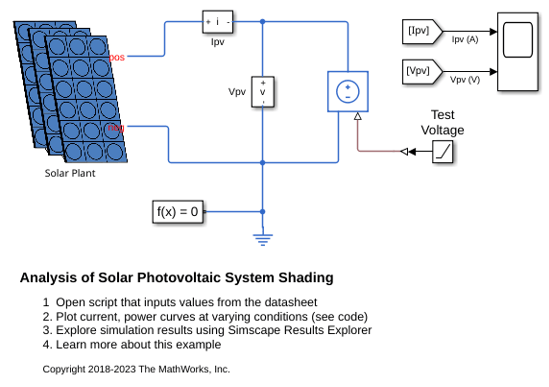

Analysis of Solar Photovoltaic System Shading
Implement shading effects in a solar photovoltaics (PV) plant or module. The solar plant block is created using Simscape™ language. Shading in a solar plant or module occurs when solar irradiance is not uniform across all solar PV modules or cells. You can use this example to study the effects of shading and PV cell junction temperature in a large interconnected solar plant or a single PV module. To improve the maximum power and to protect the solar panel from overheating, the Solar Plant block comprises bypass and blocking diodes. To define the shading, set the values of the Irradiance and Temperature parameters.
绿色氢能微网
此示例展示了一个 DC 孤岛微网，该微网利用太阳能电池阵列和储能系统为电解槽供电。您可以使用该模型评估在 7 天时间内，仅通过太阳能电池阵列供电，或通过太阳能电池阵列与储能系统组合供电来生产绿色氢能的运行特性。该模型包含电气域、热液体域和热气体域。
Wind Turbine
Model, parameterize, and test a wind turbine with a supervisory, pitch angle, MPPT (maximum power point tracking), and derating control. When you run the plot function, it generates a plot of the state transitions, normalized physical quantities such as the wind speed, wind turbine rotation speed, generator power, and pitch angle.
