建筑通风
此示例对建筑中的通风回路进行建模。建筑内部的空气体积被划分为四个区域。通风机组将冷空气吹入 Zone 1,并抽出 Zone 3 中的空气。抽出的空气可选择性地循环回 Zone 1。Zone 4 中的门可被打开,将空气排到大气中。
模型

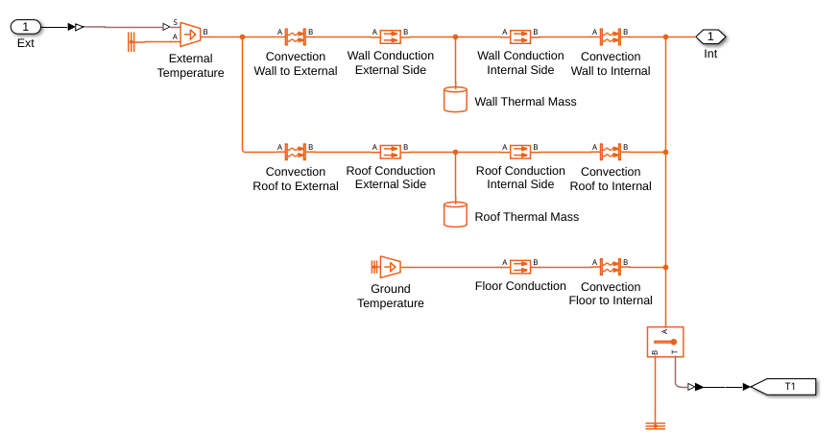

Thermal Resistance 1 子系统

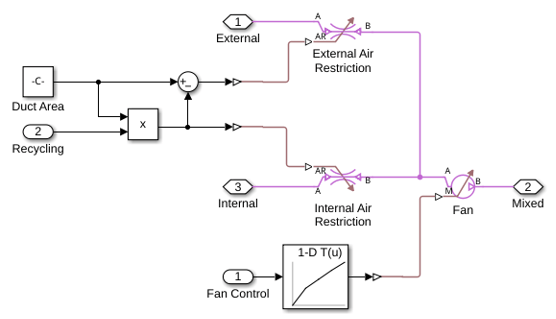

Ventilation Unit 子系统

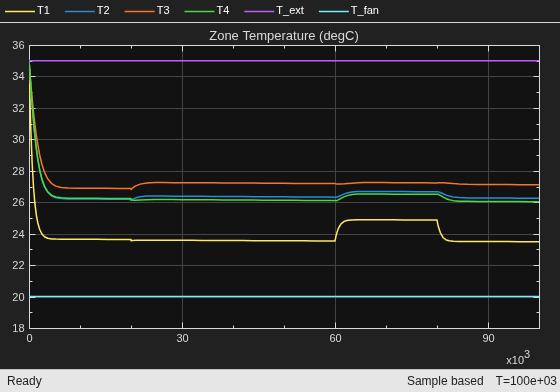

来自示波器的仿真结果

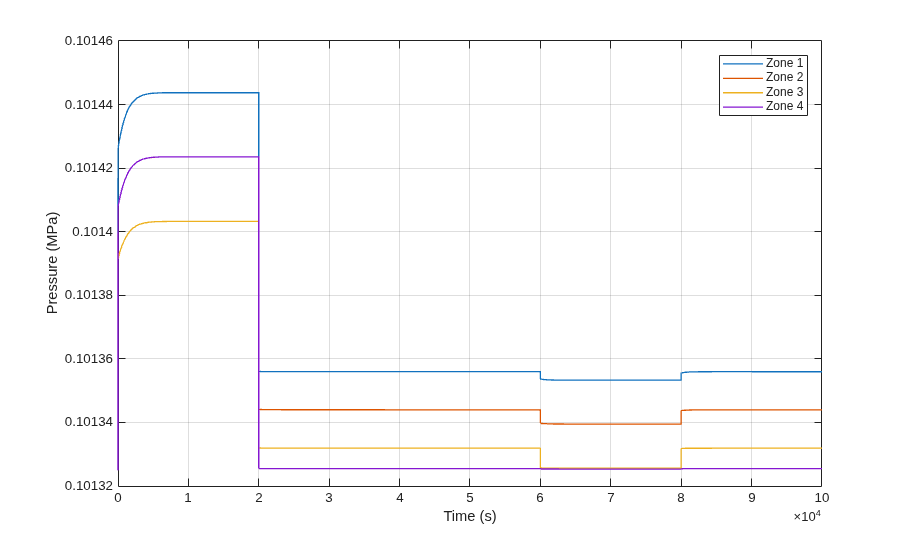

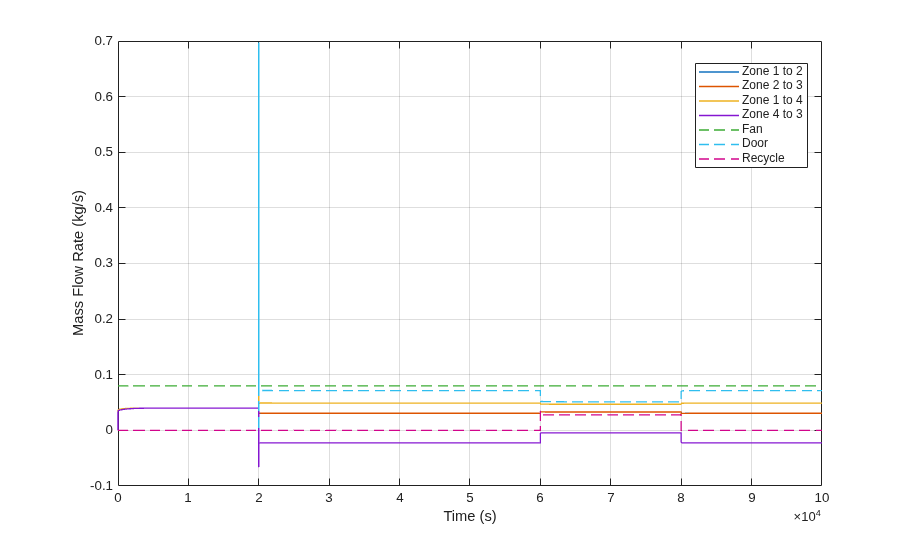

来自 Simscape 记录的仿真结果
