运算放大器电路 - 同相放大器
此模型显示了一个同相运算放大器电路。增益由 1+R2/R1 给出,当值设为 R1=1K Ohm 和 R2=10K Ohm 时,0.1V 的输入电压峰间值被放大到 1.1V 峰间值。由于运算放大器模块实现了一个理想的(即无限增益)设备,因此无论输入负载如何,都会获得此增益。
模型

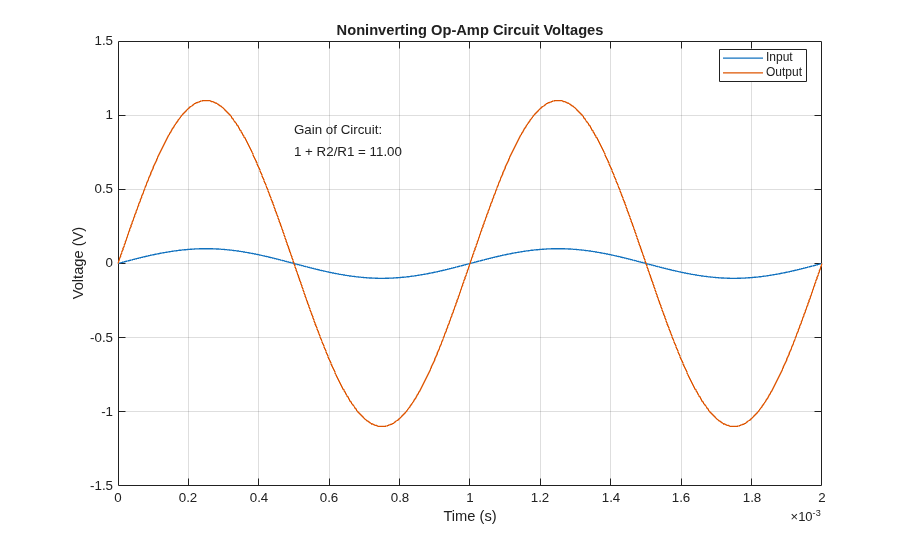

来自 Simscape 记录的仿真结果
MATLAB 命令
您点击的链接对应于以下 MATLAB 命令:
请在 MATLAB 命令行窗口中直接输入以执行命令。Web 浏览器不支持 MATLAB 命令。
