环境传感器
配置主要用于测量温度、气压、湿度等环境参数的传感器模块。
模块
| BME68x Gas Sensor | Measure barometric air pressure, relative humidity, ambient temperature, IAQ, eCO2, and bVOC from BME68x sensor (自 R2022b 起) |
| BMP280 Pressure Sensor | Measure barometric air pressure and ambient temperature from BMP280 sensor (自 R2022b 起) |
| CCS811 Air Quality Sensor | Measure equivalent CO2 (eCO2) and the equivalent total volatile organic compound concentration (eTVOC) (自 R2022a 起) |
| HTS221 Humidity Sensor | Measure relative humidity and temperature from HTS221 sensor (自 R2021a 起) |
| LPS22HB Pressure Sensor | Measure barometric air pressure and temperature from LPS22HB sensor (自 R2021a 起) |
精选示例

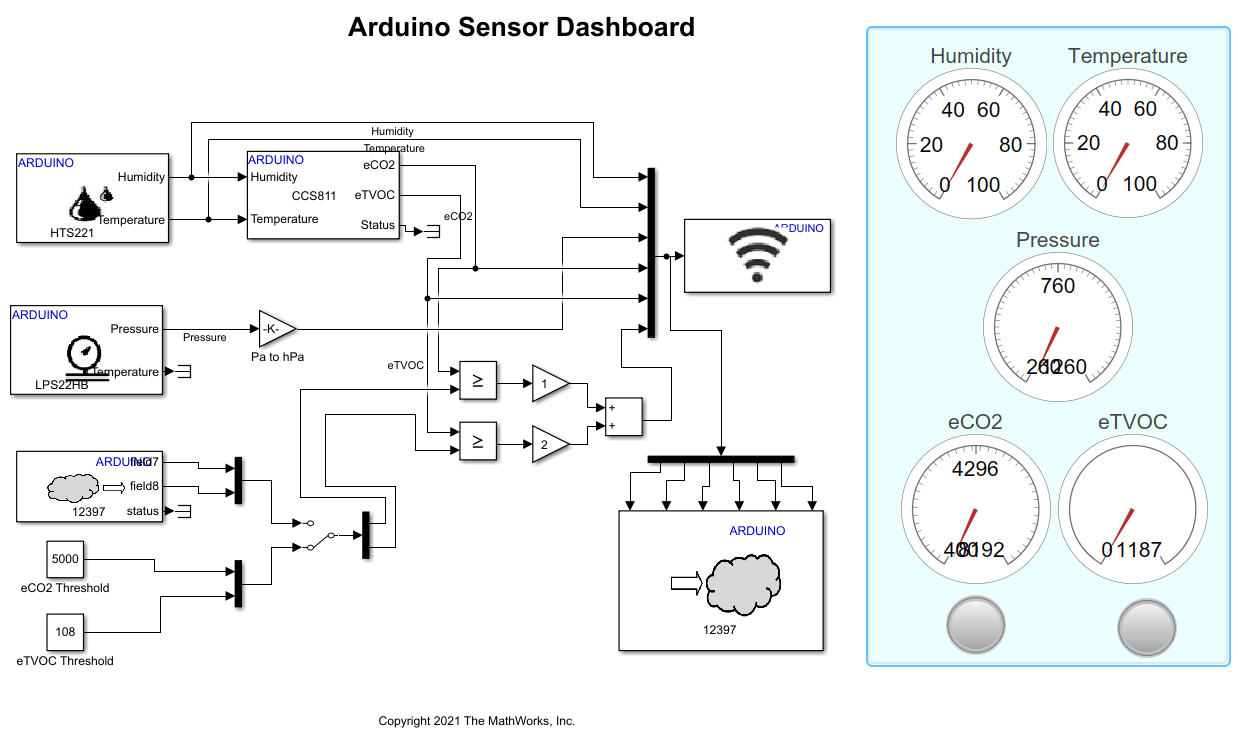

Develop Multi-Sensor Dashboard Using Arduino
Measure equivalent carbon dioxide (eCO2) concentration levels and equivalent total volatile organic compound (eTVOC) concentration levels using the CCS811 Air Quality Sensor block from the Simulink® Support Package for Arduino® Hardware. The model notifies you when the eCO2 and eTVOC levels cross the acceptable thresholds through an alarm lamp on the dashboard. You can publish the eCO2 and eTVOC concentration levels on a ThingSpeak™ channel. You can also display the sensor data on an Android® application using dashboard display. In the latter case, the Arduino hardware board acts as a host that sends the sensor data while the Android device acts as a client that accepts this data over the TCP/IP network and displays the data on the application dashboard.
