IO 设备编译器

为自定义或第三方 C/C++ 文件创建 Simulink 模块

Simulink® Support Package for Arduino® Hardware 中的 IO Device Builder 允许您为自定义或第三方源文件 (C/C++) 快速创建 System object™。您可以使用 System object 创建一个使用 MATLAB® System 模块的 Simulink 模块。

要使用 IO 设备编译器，请在 Simulink 工具条的硬件选项卡中，导航到准备 > 设计 > IO 设备编译器。您可以遵循一系列说明来完成创建 System object 和 Simulink 模块的过程。

主题

相关信息

精选示例

Create DHT11 Sensor Block to Measure Relative Humidity and Temperature Using IO Device Builder App

Create DHT11 Sensor Block to Measure Relative Humidity and Temperature Using IO Device Builder App

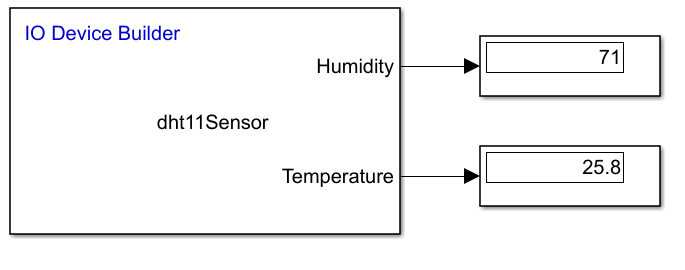

Use the IO Device Builder app to create DHT11 sensor for measuring relative humidity and temperature. In this example, the DHT11 sensor communicates with a microcontroller through a single-wire interface. The communication protocol is a proprietary one-wire protocol that uses a timing-based communication scheme. It detects water vapor by measuring the electrical resistance between two electrodes, and it measures temperature with a surface-mounted NTC temperature sensor (thermistor) built into the unit.

Create ADXL343 Sensor Block to Read Acceleration Using IO Device Builder App

Create ADXL343 Sensor Block to Read Acceleration Using IO Device Builder App

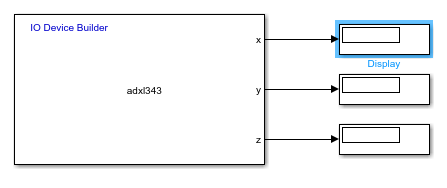

Use the IO Device Builder app to create ADXL343 sensor to measure acceleration. In this example, the ADXL343 sensor values are retrieved by using the SPI bus requiring four wires (SCL, SDA, SDO and CS).

Create OLED Display Block to Display Acceleration Using IO Device Builder App

Create OLED Display Block to Display Acceleration Using IO Device Builder App

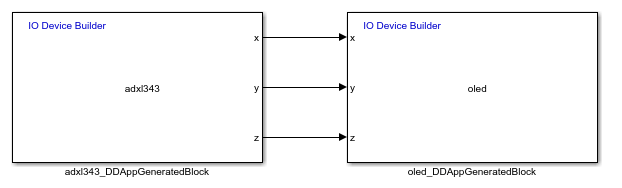

Use the IO Device Builder app to create ADXL343 sensor to measure acceleration and display the same in SH1106 OLED (Organic Light Emitting Diodes) display module.

Create OLED Display Block to Display Acceleration and Tap Count Using IO Device Builder App

Create OLED Display Block to Display Acceleration and Tap Count Using IO Device Builder App

Use the IO Device Builder app to create OLED Display block to measure acceleration, tap count and then display the same in OLED (Organic Light Emitting Diodes) display module.

Create OLED Display Block to Display Acceleration and Tap Count Using Arduino External Interrupt Block and IO Device Builder App

Create OLED Display Block to Display Acceleration and Tap Count Using Arduino External Interrupt Block and IO Device Builder App

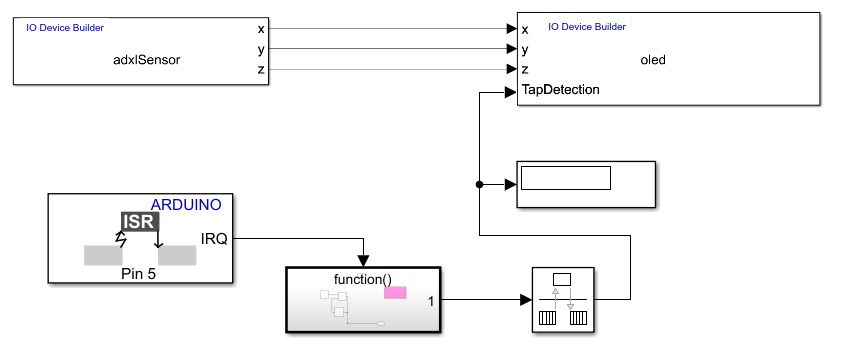

Use the IO Device Builder app to create OLED Display block to display acceleration and tap count using Arduino External Interrupt block.
