Neighborhood

Control block for Neighborhood Processing Subsystem

Since R2022b

expand all in page
  • Neighborhood block

Description

The Neighborhood block serves as a control block for the Neighborhood Processing Subsystem block. The Neighborhood Processing Subsystem block iterates over an input matrix. At each iteration, the inport inside the subsystem receives a small matrix representing a configurable window of elements around one element of the input matrix. Use the Neighborhood block parameters to configure the behavior of the Neighborhood Processing Subsystem block, such as the window dimensions, the size of the output matrix, and the region of interest (ROI) over which to iterate.

Examples

Calculate Optical Flow by Using Neighborhood Processing Subsystem Blocks

Calculate Optical Flow by Using Neighborhood Processing Subsystem Blocks

Use Neighborhood Processing Subsystem blocks to calculate the apparent motion of objects in a video.

Perform Edge Detection by Using a Neighborhood Processing Subsystem Block

Perform Edge Detection by Using a Neighborhood Processing Subsystem Block

Use a Neighborhood Processing Subsystem block to detect edges in an image.

Perform Corner Detection by Using Neighborhood Processing Subsystem Blocks

Perform Corner Detection by Using Neighborhood Processing Subsystem Blocks

Use Neighborhood Processing Subsystem blocks to detect corners in an image.

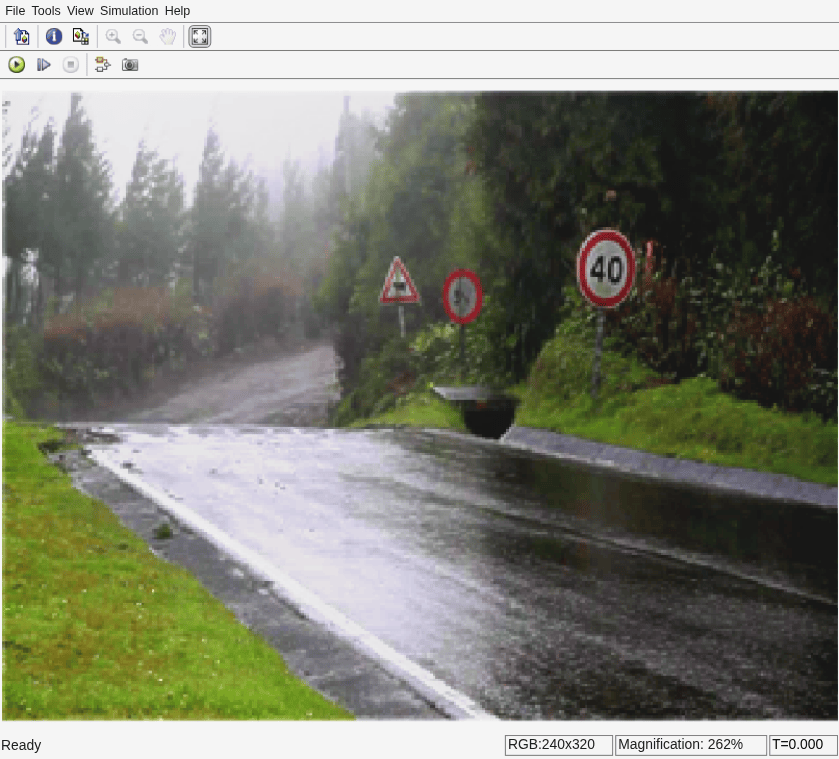

Perform Fog Rectification by Using Neighborhood Processing Subsystem Blocks

Perform Fog Rectification by Using Neighborhood Processing Subsystem Blocks

Use Neighborhood Processing Subsystem blocks to remove fog from an image.

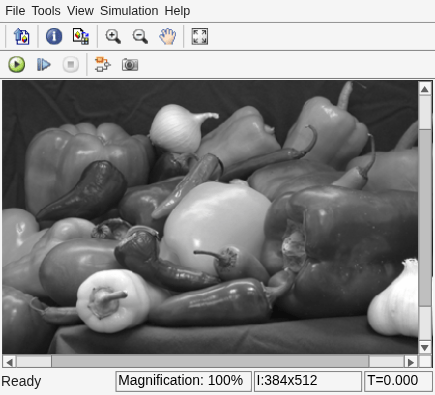

Convert RGB Image to Grayscale by Using a Pixel Processing Subsystem Block

Convert RGB Image to Grayscale by Using a Pixel Processing Subsystem Block

Use a Neighborhood Processing Subsystem block to convert a color image to grayscale.

Parameters

expand all

Configure the dimensions of the neighborhood window that the subsystem receives at each iteration. The dimensions of the neighborhood cannot exceed the dimensions of the region of interest that you specify with the Processing width and Processing offset parameters.

For example, consider this input matrix:

[12345678910111213141516171819202122232425].

.

If you set Neighborhood size to [3 3], then on the seventh iteration, the Neighborhood Processing Subsystem block receives this 3-by-3 window that surrounds the seventh element:

[123678111213].

.

Programmatic Use

Block Parameter: NeighborhoodSize
Type: array
Values: [3 3] | '<array>'
Default: [3 3]

Configure the Neighborhood Processing Subsystem block to skip a number of elements in the input matrix between each iteration. For example, the value [1 2] configures the subsystem to iterate over alternating columns from the input matrix and the value [3 1] configures the subsystem to iterate over every third row from the input matrix. Larger Stride values produce smaller output matrices because the Neighborhood Processing Subsystem block processes fewer elements.

See the difference between the Stride parameter values of [1 1] and [2 3].

Model that passes a constant through two Neighborhood Processing Subsystem blocks, each of which outputs to a Display block. The constant is a 5-by-5 matrix containing the values from 1 to 25. Each Neighborhood Processing Subsystem block uses a 1-by-1 neighborhood and feeds its Inport directly to its Outport. One Neighborhood Processing Subsystem block uses a Stride parameter value of [1 1] and returns the input matrix unchanged. The other Neighborhood Processing Subsystem block uses a Stride parameter value of [2 3] and returns a 3-by-2 subsection of the input matrix containing the values from every third column and every alternating row in the input matrix.

Programmatic Use

Block Parameter: Stride
Type: array
Values: [1 1] | '<array>'
Default: [1 1]

Configure a distance by which to offset each iteration of the algorithm. This distance defines the top left boundary the ROI within the input matrix.

For example, consider this input matrix:

[12345678910111213141516171819202122232425].

.

If you use the default Processing offset parameter value of [0 0], then the first iteration uses a neighborhood around the element 1, the second iteration centers around element 2, and so on. If you set the Processing offset parameter value to [1 2], then the Neighborhood Processing Subsystem block offsets the center of each iteration by 1 along the vertical axis and 2 along the horizontal axis. The first iteration centers on element 8, the second iteration centers on element 9, and so on. Because the region of interest cannot extend outside the input matrix, the output matrix is smaller than the input matrix.

Model that passes a constant through two Neighborhood Processing Subsystem blocks, each of which outputs to a Display block. The constant is a 5-by-5 matrix containing the values from 1 to 25. Each Neighborhood Processing Subsystem block uses a 1-by-1 neighborhood and feeds its Inport directly to its Outport. One Neighborhood Processing Subsystem block uses a Processing offset parameter value of -1 and returns the input matrix unchanged. The other Neighborhood Processing Subsystem block uses a Processing offset parameter value of [1 2] and returns a subsection of the input matrix spanning from the 8th element to the 25th.

Use the Processing offset and Processing width parameters together to process only a subsection of an input matrix. For an example, see Specify Region of Interest for Neighborhood Processing.

Programmatic Use

Block Parameter: ProcessingOffset
Type: array
Values: [0 0] | '<array>'
Default: [0 0]

Configure the dimensions of the ROI of the input matrix to process. The dimensions of the Processing width parameter cannot exceed the dimensions of the input matrix.

For example, consider this input matrix:

[12345678910111213141516171819202122232425].

.

If you use the default Processing width parameter value of -1 , then the Neighborhood Processing Subsystem block iterates over the entire input matrix. In this example, this behavior is equivalent to a Processing width parameter value of [5 5]. If you use a Processing width parameter value of [3 4], then the Neighborhood Processing Subsystem block iterates over only the top left 3-by-4 region of the input matrix.

You can use the value -1 within a Processing width parameter vector value to configure the Neighborhood Processing Subsystem block to iterate over the full length of a particular dimension. In the preceding example, if you use a Processing width parameter value of [2 -1], then the Neighborhood Processing Subsystem block iterates over the top 2-by-5 region of the input matrix.

Model that passes a constant through two Neighborhood Processing Subsystem blocks, each of which outputs to a Display block. The constant is a 5-by-5 matrix containing the values from 1 to 25. Each Neighborhood Processing Subsystem block uses a 1-by-1 neighborhood and feeds its Inport directly to its Outport. One Neighborhood Processing Subsystem block uses a Processing width parameter value of -1 and returns the input matrix unchanged. The other Neighborhood Processing Subsystem block uses a Processing offset parameter value of [3 4] and returns the top left 3-by-4 subsection of the input matrix.

Use the Processing offset and Processing width parameters together to define the top left and bottom right boundaries of a region of interest. For an example, see Specify Region of Interest for Neighborhood Processing.

Programmatic Use

Block Parameter: ProcessingWidth
Type: array
Values: -1 | '<array>'
Default: -1

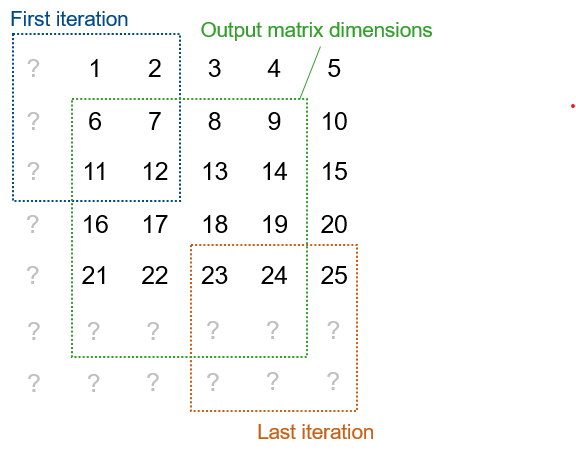

Configure which ROI elements you want the Neighborhood Processing Subsystem block to iterate over by selecting the value Same, Full, or Valid. This determines the dimensions of the output matrix.

Each example graphic shows a 5-by-5 region of interest with three highlighted subsections.

  • The blue top left subsection represents the neighborhood that the Neighborhood Processing Subsystem block processes in the first iteration.

  • The orange bottom right subsection represents the neighborhood of the last iteration.

  • The green center subsection represents the dimensions of the output matrix, which spans the centers of the first and last iterations.

For settings that use padded values, the example graphics denote padded values as ?.

Each example graphic assumes a Neighborhood size parameter value of [3 3], which defines a 3-by-3 neighborhood. Because each example graphic assumes the default value of [0 0] for the Processing offset parameter and the default value of -1 for the Processing width parameter, the region of interest is the full input matrix. For information about how the Neighborhood Processing Subsystem block pads values when you configure a region of interest, see Use Neighborhood Processing Subsystem Block Padding Options with Region of Interest.

  • Same –– The output matrix has the same dimensions as the region of interest. For elements near the edges, the neighborhood extends beyond the input matrix. Use the Padding option parameter to configure how to pad elements outside the input matrix.

    5-by-5 matrix containing the values from 1 to 25, surrounded by a layer of gray question marks. A blue 3-by-3 box labelled "First iteration" surrounds the first element, extending into the layer of question marks upward and to the left. An orange 3-by-3 box labelled "Last iteration" surrounds the last element, extending into the layer of question marks downward and to the right. A green 5-by-5 box surrounds the original 5-by-5 matrix.

  • Full –– The output matrix is larger than the region of interest. The matrix includes an element for every neighborhood that includes at least one element from the region of interest, even if the neighborhood center is outside the region of interest. Use the Padding option parameter to configure how to pad elements outside the input matrix.

    5-by-5 matrix containing the values from 1 to 25, surrounded by two layers of gray question marks. A blue 3-by-3 box labelled "First iteration" surrounds the top left 3-by-3 window, including eight question marks and the value 1. An orange 3-by-3 box labelled "Last iteration" surrounds the bottom right 3-by-3 window, including the value 25 and eight question marks. A green 7-by-7 box surrounds the original 5-by-5 matrix and the inner layer of question marks.

  • Valid –– The output matrix is smaller than the region of interest. The output matrix includes only the elements whose neighborhoods fall entirely within the region of interest.

    5-by-5 matrix containing the values from 1 to 25. A blue 3-by-3 box labelled "First iteration" surrounds the top left 3-by-3 window, centered on the element 7. An orange 3-by-3 box labelled "Last iteration" surrounds the bottom right 3-by-3 window, centered on the element 19. A green 3-by-3 box surrounds the center 3-by-3 window, centered on the element 13.

Programmatic Use

Block Parameter: OutputSize
Type: character vector
Values: 'Same' | 'Full' | 'Valid'
Default: 'Same'

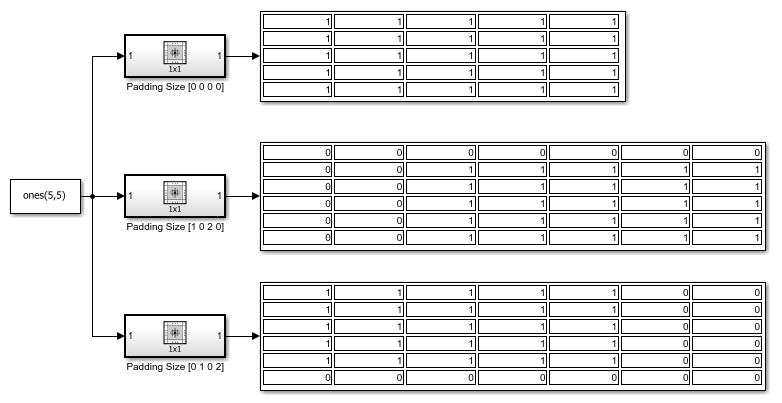

Configure how to pad values outside the input matrix. When you select the value Full or Same for the Output size parameter, some neighborhoods extend beyond the input matrix and use padded matrix element values.

To fully illustrate the logic of each padding option, each example graphic shows the 5-by-5 input matrix padded with 5-by-5 matrices. In practice, not every padded value is necessarily part of a neighborhood, depending on the Neighborhood size and Output size parameters. For example, if you set Neighborhood size to [3 3] and Output size to Same, the subsystem uses only the innermost layer of padded values.

  • Constant –– Use a configurable constant value for elements outside the input matrix. For example, this matrix uses a constant value of 0.

    5-by-5 matrix containing the integers from 1 to 25. The values outside the matrix are each set to 0..

  • Replicate –– Extend the values of the edge parameters.

    5-by-5 matrix containing the integers from 1 to 25. The values outside the matrix are each set to the nearest value from the input matrix..

  • Symmetric –– Mirror the input matrix.

    5-by-5 matrix containing the integers from 1 to 25. The values outside the matrix mirror those from the input matrix..

  • Circular –– Repeat the input matrix in a tiled pattern.

    5-by-5 matrix containing the integers from 1 to 25. The values outside the matrix repeat the pattern from the input matrix..

    For information about how the Padding option parameter interacts with the Processing offset and Processing width parameters, see Use Neighborhood Processing Subsystem Block Padding Options with Region of Interest.

Programmatic Use

Block Parameter: PaddingOption
Type: character vector
Values: 'Constant' | 'Replicate' | 'Symmetric' | 'Circular'
Default: 'Constant'

Dependencies

To enable this parameter, set Output size to Same or Full.

Configure the value to use for the Constant padding option.

Dependencies

To enable this parameter, set Padding option to Constant.

Programmatic Use

Block Parameter: PaddingConstant
Type: scalar
Values: 0 | '<scalar>'
Default: 0
