Persistent Memory Within Legacy Functions

Providing the Legacy Function Specification

Functions provided with the Legacy Code Tool take a specific data structure or array of structures as the argument. The data structure is initialized by calling the function legacy_code() using 'initialize' as the first input. After initializing the structure, you have to assign its properties to values corresponding to the legacy code being integrated. The prototype of the legacy functions being called in this example are:

void memory_bus_init(COUNTERBUS *mem, int32_T upper_sat, int32_T lower_sat);

void memory_bus_step(COUNTERBUS *input, COUNTERBUS *mem, COUNTERBUS *output);

where mem is an instance-specific persistent memory for applying a one integration step delay. COUNTERBUS is a struct typedef defined in counterbus.h and implemented with a Simulink.Bus object in the base workspace. The legacy source code is found in the files memory_bus.h and memory_bus.c.

evalin('base','load sldemo_lct_data.mat')

% sldemo_sfun_work
def = legacy_code('initialize');
def.SFunctionName = 'sldemo_sfun_work';
def.InitializeConditionsFcnSpec = 'void memory_bus_init(COUNTERBUS work1[1], int32 p1, int32 p2)';
def.OutputFcnSpec = 'void memory_bus_step(COUNTERBUS u1[1], COUNTERBUS work1[1], COUNTERBUS y1[1])';
def.HeaderFiles   = {'memory_bus.h'};
def.SourceFiles   = {'memory_bus.c'};
def.IncPaths      = {'sldemo_lct_src'};
def.SrcPaths      = {'sldemo_lct_src'};

Generating and Compiling an S-Function for Use During Simulation

The function legacy_code() is called again with the first input set to 'generate_for_sim' in order to automatically generate and compile the C-MEX S-function according to the description provided by the input argument 'def'. This S-function is used to call the legacy functions in simulation. The source code for the S-function is found in the file sldemo_sfun_work.c.

legacy_code('generate_for_sim', def);

### Start Compiling sldemo_sfun_work
    mex('-I/tmp/Bdoc24b_2725827_2542211/tp61fd10c4/simulink_features-ex40483229/sldemo_lct_src', '-I/tmp/Bdoc24b_2725827_2542211/tp61fd10c4/simulink_features-ex40483229', '-c', '-outdir', '/tmp/Bdoc24b_2725827_2542211/tp70ae3ade_f6a4_4583_8609_51604b586b0b', '/tmp/Bdoc24b_2725827_2542211/tp61fd10c4/simulink_features-ex40483229/sldemo_lct_src/memory_bus.c')
Building with 'gcc'.
MEX completed successfully.
    mex('sldemo_sfun_work.c', '-I/tmp/Bdoc24b_2725827_2542211/tp61fd10c4/simulink_features-ex40483229/sldemo_lct_src', '-I/tmp/Bdoc24b_2725827_2542211/tp61fd10c4/simulink_features-ex40483229', '/tmp/Bdoc24b_2725827_2542211/tp70ae3ade_f6a4_4583_8609_51604b586b0b/memory_bus.o')
Building with 'gcc'.
MEX completed successfully.
### Finish Compiling sldemo_sfun_work
### Exit

Generating an rtwmakecfg.m File for Code Generation

After the TLC block file is created, the function legacy_code() can be called again with the first input set to 'rtwmakecfg_generate' in order to generate an rtwmakecfg.m file to support code generation through Simulink® Coder™. Generate the rtwmakecfg.m file if the required source and header files for the S-functions are not in the same directory as the S-functions, and you want to add these dependencies in the makefile produced during code generation.

Note: Complete this step only if you are going to simulate the model in accelerated mode.

legacy_code('rtwmakecfg_generate', def);

Generating a Masked S-Function Block for Calling the Generated S-Function

After the C-MEX S-function source is compiled, the function legacy_code() can be called again with the first input set to 'slblock_generate' in order to generate a masked S-function block that is configured to call that S-function. The block is placed in a new model and can be copied to an existing model.

% legacy_code('slblock_generate', def);

Integrate the Legacy Code

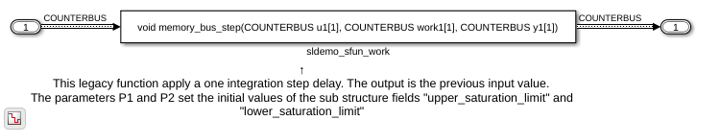

The model sldemo_lct_work shows integration with the legacy code. The subsystem memory_bus serves as a harness for the call to the legacy C function.

open_system('sldemo_lct_work')
open_system('sldemo_lct_work/memory_bus')
sim('sldemo_lct_work')

ans =

  Simulink.SimulationOutput:
             ScopeDataA: [11x3 double]
                   tout: [11x1 double]

     SimulationMetadata: [1x1 Simulink.SimulationMetadata]
           ErrorMessage: [0x0 char]
