ModelAdvisor.FormatTemplate

用于格式化模型顾问分析结果的模板

全页展开

说明

使用 ModelAdvisor.FormatTemplate 类在模型顾问的分析结果窗格中设置检查结果的格式，以便在您创建的检查之间保持一致的外观。可以将分析结果格式化为表格或列表。

创建对象

语法

obj = ModelAdvisor.FormatTemplate(type)

描述

obj = ModelAdvisor.FormatTemplate(type) 创建 ModelAdvisor.FormatTemplate 类的对象。type 是标识模板格式类型（列表或表格）的字符向量。

您必须将结果对象返回给模型顾问，才能在分析结果窗格中显示格式化的结果。

注意

在检查回调中使用 ModelAdvisor.FormatTemplate 类。

输入参量

全部展开

`type` — 模板类型
`ListTemplate` | `TableTemplate`

ModelAdvisor.FormatTemplate 的类型。

对象函数

`addRow`	向模型顾问分析结果中添加表行
`setCheckText`	Add description of check to result
`setColTitles`	在模型顾问分析结果中添加表列标题
`setInformation`	Add description of subcheck to result
`setListObj`	向模型对象添加超链接的列表
`setRecAction`	Add Recommended Action section and text
`setRefLink`	Add See Also section and links
`setSubBar`	在子检查结果之间添加行
`setSubResultStatus`	Add status to the check or subcheck result
`setSubResultStatusText`	Add text below status in result
`setSubTitle`	为结果中的子检查添加标题
`setTableInfo`	Add data to table
`setTableTitle`	在模型顾问分析结果中向表添加标题

示例

全部折叠

格式化模型顾问结果

下列 sl_customization 文件包含的代码可以创建 ft1 和 ft2 两个对象并使用它们来设置在表格和列表中运行检查的结果的格式。结果标识模型中的模块。

function sl_customization(cm)

% register custom checks
cm.addModelAdvisorCheckFcn(@defineModelAdvisorChecks);

end


% -----------------------------
% defines Model Advisor Checks
% -----------------------------
function defineModelAdvisorChecks

% Define and register a sample check
rec = ModelAdvisor.Check('mathworks.example.SampleDetailStyle');
rec.Title = 'Sample check for Model Advisor using the ModelAdvisor.FormatTemplate';
setCallbackFcn(rec, @SampleDetailStyleCallback,'None','DetailStyle');

mdladvRoot = ModelAdvisor.Root;
mdladvRoot.publish(rec, 'My_Demo');

end


% -----------------------------
% Sample Check With Subchecks Callback Function
% -----------------------------
function [ResultDescription] = SampleDetailStyleCallback(system, CheckObj)

% Initialize variables
ElementResults = ModelAdvisor.ResultDetail.empty();

% Perform the check actions
allBlocks = find_system(system);
[ResultDescription] = getFormattedTemplate(allBlocks);

% Perform the subcheck actions - Result Details - Table
if length(allBlocks) == 1
    % Add result details for detailed style check
    ElementResults(end + 1) = ModelAdvisor.ResultDetail;
    ElementResults(end).ViolationType = 'warn';
    ElementResults(end).Description =  ['Find and report all blocks in a table. '...
        '(setInformation method - Description of what the subcheck reviews)'];
    ElementResults(end).Status =  ['The model does not contain blocks. '...
        '(setSubResultStatusText method - Description of result status)'];
else
    for i=1:numel(allBlocks)
        ElementResults(end+1) = ModelAdvisor.ResultDetail;
        ElementResults(end).ViolationType = 'pass';
        ElementResults(end).Format = 'Table';
        ModelAdvisor.ResultDetail.setData(ElementResults(end),'SID',allBlocks{i});
        ElementResults(end).Description =  ['Find and report all blocks in a table. '...
            '(setInformation method - Description of what the subcheck reviews)'];
        ElementResults(end).Status = ['The model contains blocks. '...
            '(setSubResultStatusText method - Description of result status)'];
    end
end

% Perform the subcheck actions  - Result Details - List
if length(allBlocks) == 1
     ElementResults(end+1) = ModelAdvisor.ResultDetail;
     ElementResults(end).ViolationType = 'warn';
     ElementResults(end).Description =  ['Find and report all blocks in a table. '...
        '(setInformation method - Description of what the subcheck reviews)'];
     ElementResults(end).Status =  ['The model does not contain blocks. '...
        '(setSubResultStatusText method - Description of result status)'];
else
    for i= 1:numel(allBlocks)
        ElementResults(end+1) = ModelAdvisor.ResultDetail;
        ElementResults(end).ViolationType = 'pass';
        ModelAdvisor.ResultDetail.setData(ElementResults(end),'SID',allBlocks{i});
        ElementResults(end).Description =  ['Find and report all blocks in a list. '...
            '(setInformation method - Description of what the subcheck reviews)'];
        ElementResults(end).Status = ['The model contains blocks. '...
            '(setSubResultStatusText method - Description of result status)'];
    end
end

%Set check result details
CheckObj.setResultDetails(ElementResults);

end

function [ResultDescription] = getFormattedTemplate(allBlocks)
ResultDescription={};

% Create FormatTemplate object for first subcheck, specify table format
ft1 = ModelAdvisor.FormatTemplate('TableTemplate');

% Add information describing the overall check
setCheckText(ft1, ['Find and report all blocks in the model. '...
    '(setCheckText method - Description of what the check reviews)']);

% Add information describing the subcheck
setSubTitle(ft1, 'Table of Blocks (setSubTitle method - Title of the subcheck)');
setInformation(ft1, ['Find and report all blocks in a table. '...
    '(setInformation method - Description of what the subcheck reviews)']);

% Add See Also section for references to standards
setRefLink(ft1, {{'Standard 1 reference (setRefLink method)'},
    {'Standard 2 reference (setRefLink method)'}});

% Add information to the table
setTableTitle(ft1, {'Blocks in the Model (setTableTitle method)'});
setColTitles(ft1, {'Index (setColTitles method)',
    'Block Name (setColTitles method)'});


if length(allBlocks) == 1
    % Add status for subcheck
    setSubResultStatus(ft1, 'Warn');
    setSubResultStatusText(ft1, ['The model does not contain blocks. '...
        '(setSubResultStatusText method - Description of result status)']);
    setRecAction(ft1, {'Add blocks to the model. '...
        '(setRecAction method - Description of how to fix the problem)'});
else
    % Add status for subcheck
    setSubResultStatus(ft1, 'Pass');
    setSubResultStatusText(ft1, ['The model contains blocks. '...
        '(setSubResultStatusText method - Description of result status)']);
    for inx = 2 : length(allBlocks)
        % Add information to the table
        addRow(ft1, {inx-1,allBlocks(inx)});
    end
end

% Pass table template object for subcheck to Model Advisor
ResultDescription{end+1} = ft1;

% Create FormatTemplate object for second subcheck, specify list format
ft2 = ModelAdvisor.FormatTemplate('ListTemplate');

% Add information describing the subcheck
setSubTitle(ft2, 'List of Blocks (setSubTitle method - Title of the subcheck)');
setInformation(ft2, ['Find and report all blocks in a list. '...
    '(setInformation method - Description of what the subcheck reviews)']);

% Add See Also section for references to standards
setRefLink(ft2, {{'Standard 1 reference (setRefLink method)'},
    {'Standard 2 reference (setRefLink method)'}});

% Last subcheck, suppress line
setSubBar(ft2, false);

% Perform the subcheck actions
if length(allBlocks) == 1
    % Add status for subcheck
    setSubResultStatus(ft2, 'Warn');
    setSubResultStatusText(ft2, ['The model does not contain blocks. '...
        '(setSubResultStatusText method - Description of result status)']);
    setRecAction(ft2, {'Add blocks to the model. '...
        '(setRecAction method - Description of how to fix the problem)'});

else
    % Add status for subcheck
    setSubResultStatus(ft2, 'Pass');
    setSubResultStatusText(ft2, ['The model contains blocks. '...
        '(setSubResultStatusText method - Description of result status)']);
    % Add information to the list
    setListObj(ft2, allBlocks);
end

% Pass list template object for the subcheck to Model Advisor
ResultDescription{end+1} = ft2;

end

将 sl_customization 文件保存到您的工作目录中。
在 MATLAB 命令行窗口中，输入：
```
Advisor.Manager.refresh_customizations
```
打开一个模型。
在建模选项卡中，选择模型顾问。
在按产品 > My_Demo文件夹中，选择 Sample check for Model Advisor using ModelAdvisor.FormatTemplate。
点击运行此检查。

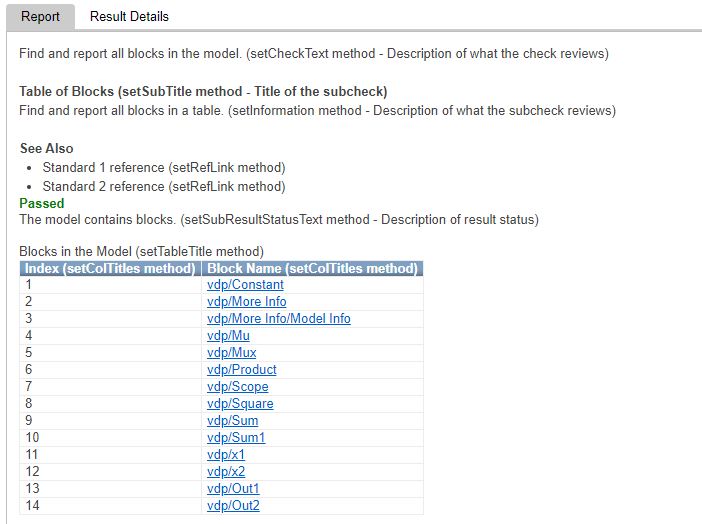

下图显示了检查通过时模型顾问中显示的输出。

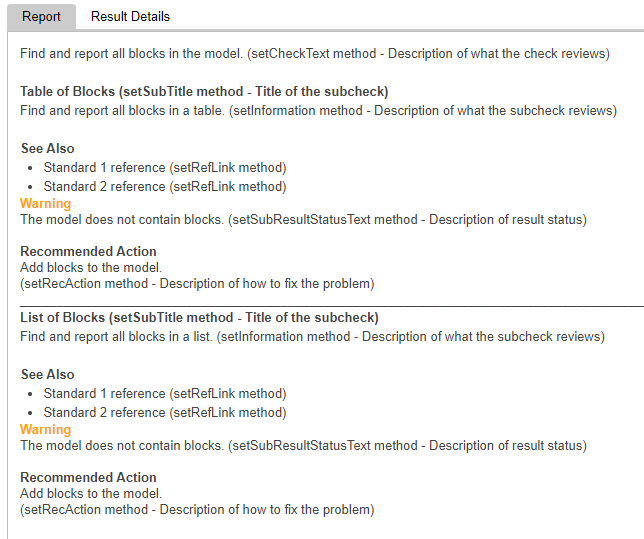

下图显示了检查发出警告时模型顾问中显示的输出。

备选方法

当您定义 ModelAdvisor.Check 对象时，对于 CallbackStyle 属性，如果指定 DetailStyle，则不必使用 ModelAdvisor.FormatTemplate API 或其他格式 API 来格式化模型顾问报告中显示的结果。DetailStyle 还允许您按模块、子系统或建议的操作来查看结果。

如果默认格式不符合您的需要，请使用 ModelAdvisor.FormatTemplate API 或其他格式 API。ModelAdvisor.FormatTemplate 类在您创建的检查之间提供一致的外观。
