Run Custom Model Advisor Checks on Architecture Models

Following is an example to identify the exceeded limit of Inports and Outports of a component in an Architecture model.

1. On the MATLAB command window, run Advisor.Manager.refresh_customizations. This step is necessary to publish the custom checks to the Model Advisor.

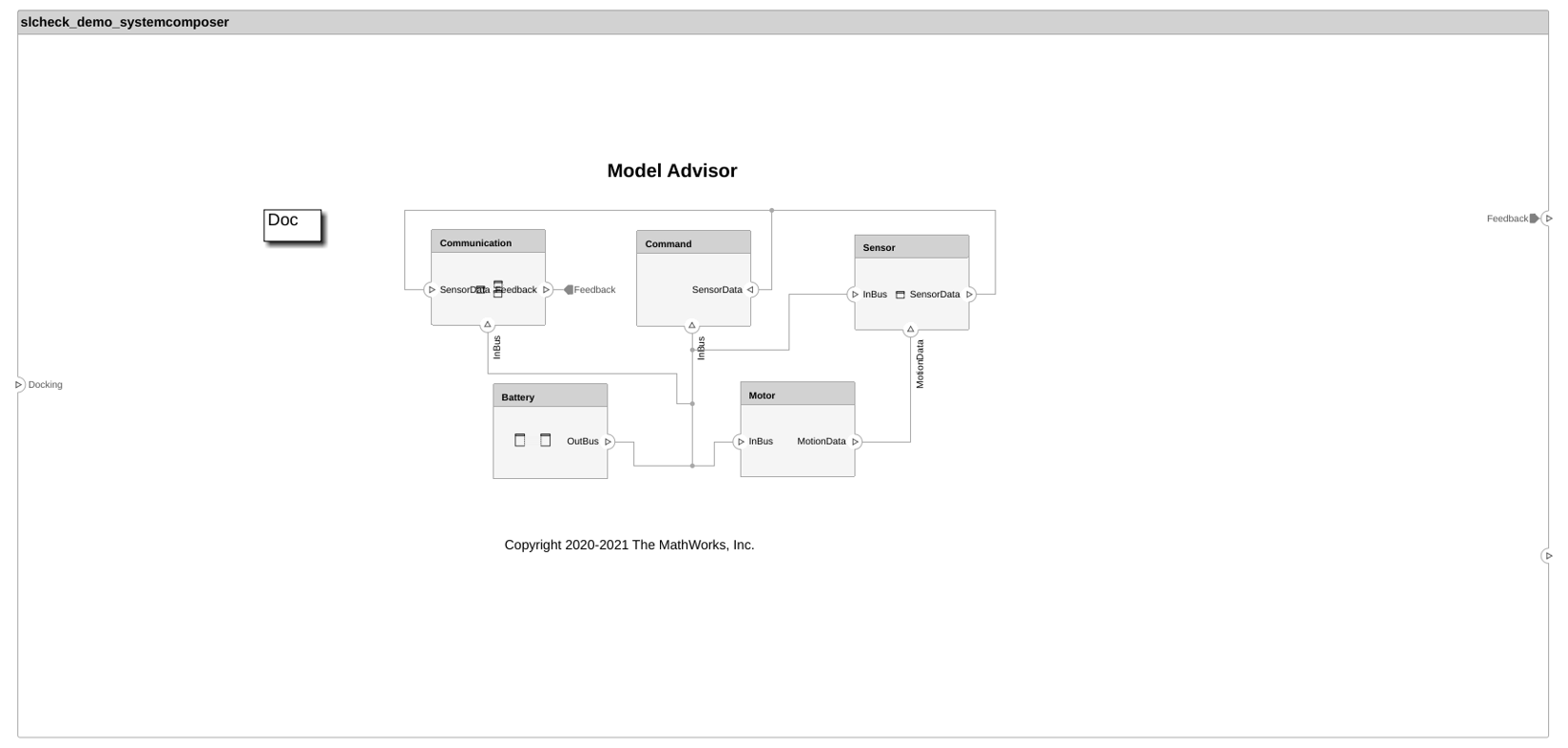

2. Open the architecture model.

open_system('slcheck_demo_systemcomposer.slx');
copyfile sl_customization_orig.m sl_customization.m f

3. From the Modeling tab, open Model Advisor. You can also open the Model Advisor by typing this command at the MATLAB command prompt:

modeladvisor('slcheck_demo_systemcomposer.slx');

Updating Model Advisor cache...
Model Advisor cache updated. For new customizations, to update the cache, use the Advisor.Manager.refresh_customizations method.

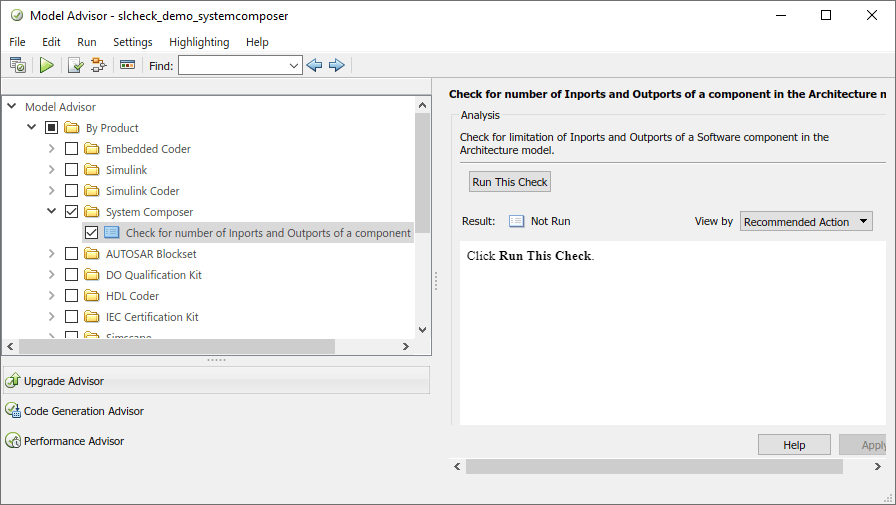

4. On the Model Advisor window, click By Product > System Composer and Select Check number of Inports and Outports of a component check.

5. Right-click the check and select Run This Check. Model Advisor runs the selected check on the architecture model and displays the results.

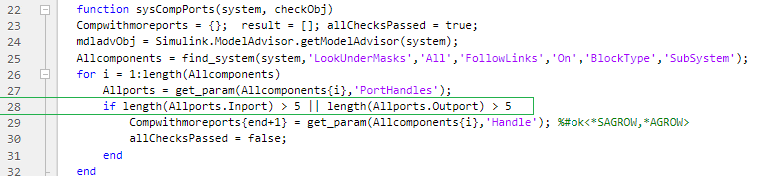

6. Open the sl_customization file to view the demo source code.

edit sl_customization.m

7. Change the hardcoded threshold value for Inports and Outports to any desired values.

8. Re-run the check to verify the updated results.
