Get Started with Simulink Coverage

Simulink^® Coverage™ performs model and code coverage analysis that measures testing completeness in models and generated code. It applies industry-standard metrics such as decision, condition, modified condition/decision coverage (MCDC), and relational boundary coverage to assess the effectiveness of simulation testing in models, software-in-the-loop (SIL), and processor-in-the-loop (PIL). You can use missing coverage data to find gaps in testing, missing requirements, or unintended functionality.

Simulink Coverage produces interactive reports showing how much of your model, C/C++ S-functions, MATLAB^® functions, and code generated by Embedded Coder^® has been exercised. You can highlight coverage results in blocks and subsystems to visualize gaps in testing. To assess testing completeness, you can accumulate coverage data from multiple test runs, as well as view coverage achieved through unit and system tests. Coverage outcomes can be traced to requirements and tests. You can apply filters to exclude blocks from coverage and justify missing coverage in reports.

Support for industry standards is available through DO Qualification Kit and IEC Certification Kit.

Tutorials

• Structural Coverage Metrics


  Learn some basic terminology related to model coverage.

Use Simulink Coverage to Analyze Your Model

Learn the basic Simulink Coverage workflow.

• STEP 1: Enable Coverage and Select Metrics
• STEP 2: Analyze Coverage and View Results
• STEP 3: Address Missing Coverage
• STEP 4: Create and Archive Reports
• Analyze Model Coverage by Using the Test Manager in Simulink Test


  Learn the workflow for collecting coverage in the test manager.

Featured Examples

Basic Operation of the Model Coverage Tool

Use the Configuration Parameters dialog to enable coverage for a Simulink® model and adjust the type of information that is reported.

• Open Model

Cumulative Coverage Analysis

Illustrates the use of the Coverage Results Explorer to simplify the generation of cumulative coverage data and reports spanning a set of multiple coverage runs.

• Open Script

Software-in-the-Loop Code Coverage

Collect code coverage metrics from a model reference using software-in-the-loop (SIL) mode.

• Open Model

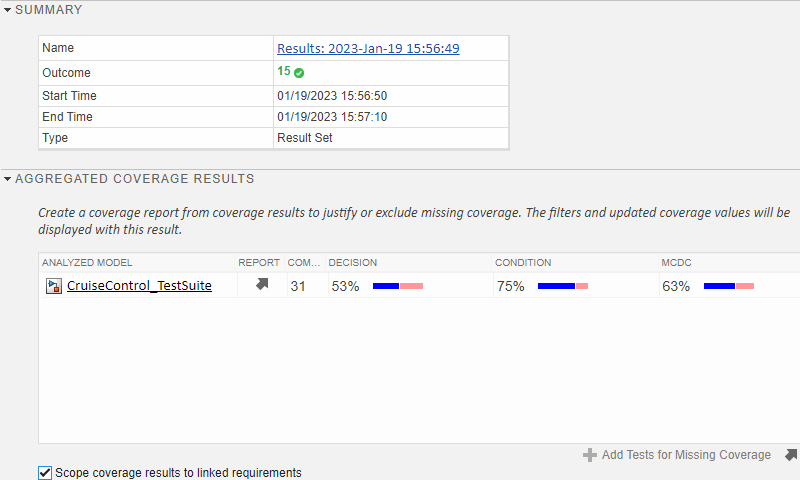

Run a Test Suite and Resolve Missing Model Coverage

Run a test suite, collect coverage, and generate test cases to satisfy missing model coverage.

• Open Live Script

Videos

What is Simulink Coverage?
Learn the fundamental concepts of Simulink Coverage.

Requirements-Based Testing Workflow Example
Learn how to get started with requirements-based testing using Simulink Coverage, Requirements Toolbox™, Simulink Test™, and Simulink Design Verifier™
