Adaptive Lookup Tables

Estimate time-varying data during simulation using adaptive lookup tables

Lookup tables are one way to capture the dynamic behavior of a physical (mechanical, electronic, software) system. Static lookup tables establish a permanent mapping of the input-output behavior of a physical system. However, the behavior of actual physical systems often varies with time due to wear, environmental conditions, and manufacturing tolerances. Adaptive lookup tables incorporate the time-varying behavior of physical plants into generation and maintenance of the lookup table. For details, see What Are Adaptive Lookup Tables?

Blocks

Adaptive Lookup Table (1D Stair-Fit)	One-dimensional adaptive table lookup
Adaptive Lookup Table (2D Stair-Fit)	Two-dimensional adaptive table lookup
Adaptive Lookup Table (nD Stair-Fit)	Adaptive lookup table of arbitrary dimension

Topics

What Are Adaptive Lookup Tables?
Difference between static and adaptive lookup tables.
Building Models Using Adaptive Lookup Table Blocks
Simulink^® Design Optimization™ software provides blocks for modeling systems as adaptive lookup tables.
Model Engine Using n-D Adaptive Lookup Table
Modeling a system using Adaptive Lookup Table.
Selecting an Adaptation Method
Details about the Sample Mean and Sample Mean with Forgetting adaptation methods.
Using Adaptive Lookup Tables in Real-Time Environment
Application of adaptive lookup tables in real-time.

Featured Examples

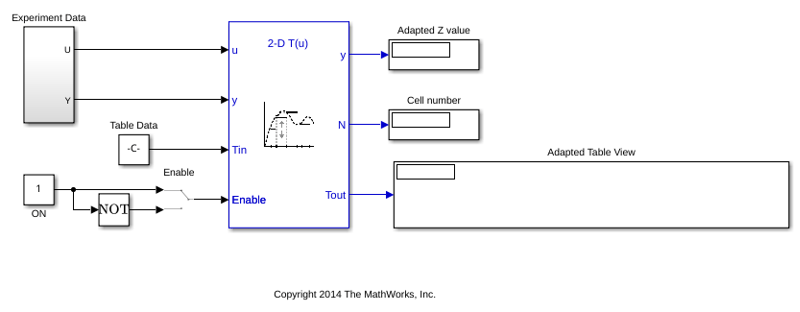

2-D Adaptive Lookup Table Generation

Create a 2-D lookup table from experimental data.

Open Script

Engine Volumetric Efficiency Surface Matching

Generate a lookup table to approximate an engine volumetric efficiency surface using experimental data.

Open Script
