Engine Idle Speed Model

Open the nonlinear idle speed model of an automotive engine.

open_system('engine_idle_speed.slx')

Create Experiment

Before you specify estimation data, create an experiment. In the Simulink^® model window, open the Parameter Estimator by selecting Apps > Parameter Estimator.

In the Parameter Estimator, on the Parameter Estimation tab, click New Experiment.

This action creates an experiment called Exp in the Experiments section of the data browser and opens the experiment editor.

To change the name of the experiment, click and type the new name.

Edit Experiment Data

To edit an experiment, open the experiment editor by right-clicking on the experiment name and selecting Edit from the list.

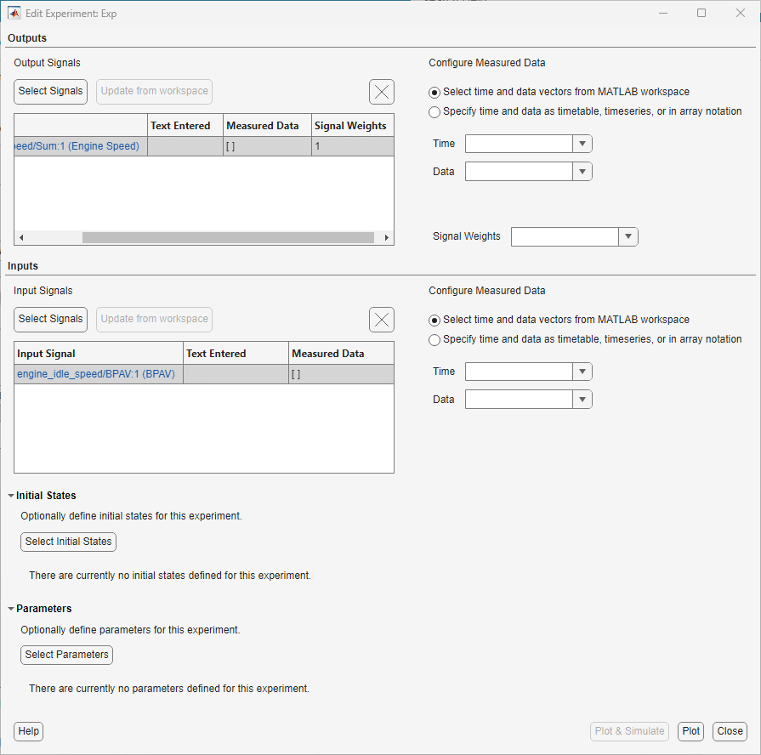

The experiment editor has four panels. You select output signals and import output data in the Outputs panel. You select input signals and import input data in the Inputs panel. You can specify model initial states in the Initial States section. You can specify parameters to estimate in the Parameters section.

The rows in the Inputs section of the editor correspond to Inport block BPAV in the engine_idle_speed model. See Import Data for Parameter Estimation.

The rows in the Outputs section correspond to Outport block Engine Speed. You can import signal data from files or the MATLAB^® workspace.

The idle-speed model of an automotive engine contains the measured data stored in the iodata array in the workspace. The array contains two columns: the first for input data, and the second for output data. The time data is in the time array in the workspace.

To import the input data, in the Inputs section, select Specify time and data as timetable, timeseries, or in array notation. Then type [time,iodata(:,1)] in the text box.

Similarly, to import the output data, in the Outputs section, select Specify time and data as timetable, timeseries, or in array notation. Then type [time,iodata(:,2)] in the text box.
