Fuel Cell System

Open Model

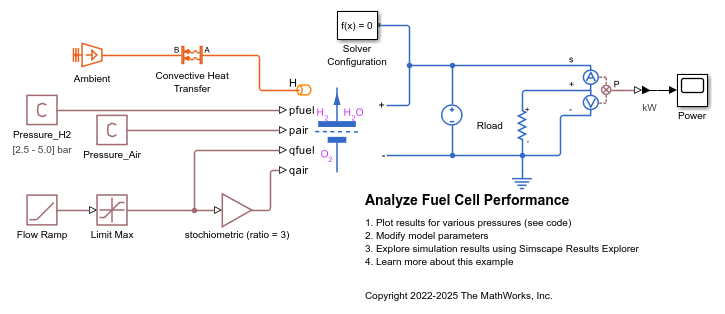

This example shows a Fuel Cell system that operates at stochiometric conditions and nominal parameters. The power delivered varies as a function of the hydrogen pressure.

Model

Simulation Results from Simscape Logging

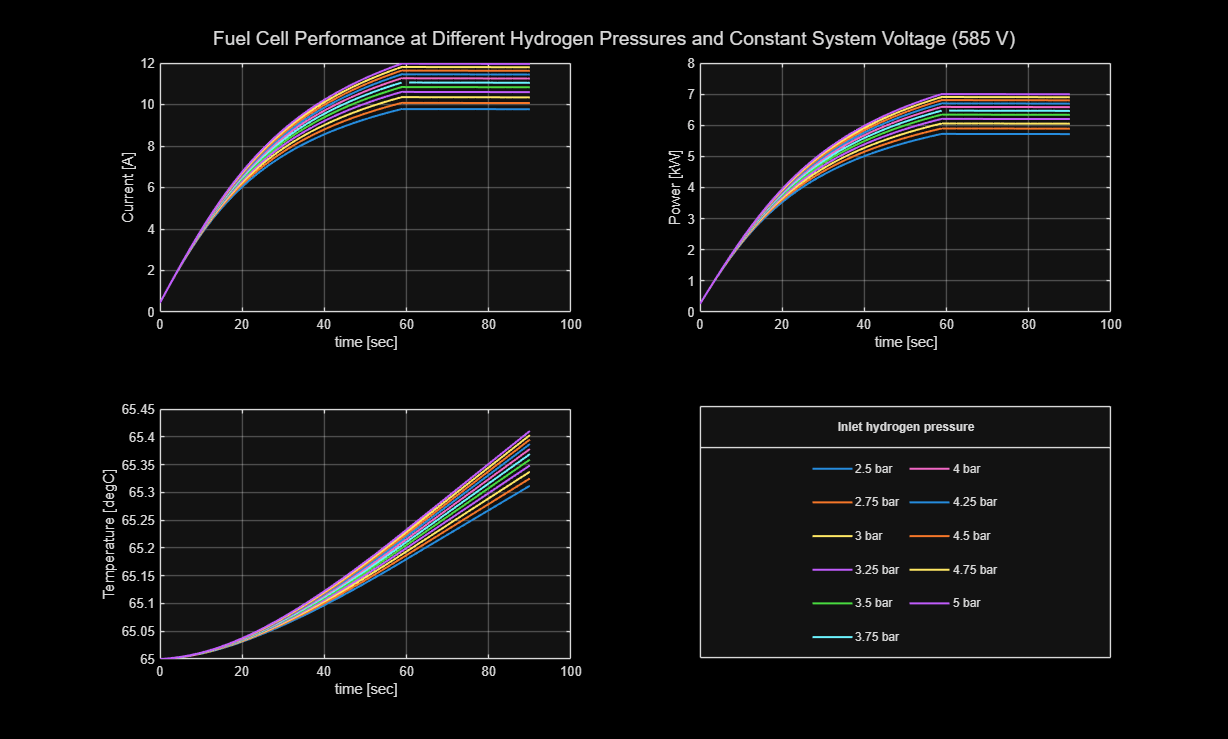

The plot below shows the time evolution of the current, voltage, power, and temperature for pressures between 2.5 and 5 bar.

Results from Real-Time Simulation

This example has been tested on a Speedgoat Performance real-time target machine with an Intel® 3.5 GHz i7 multi-core CPU. This model can run in real time with a step size of 50 microseconds.
