Multivariate Wavelet Denoising

Loading a Multivariate Signal

To load the multivariate signal, type the following code at the MATLAB® prompt:

 load ex4mwden
 whos

  Name           Size            Bytes  Class     Attributes

  covar          4x4               128  double
  x           1024x4             32768  double
  x_orig      1024x4             32768  double

Usually, only the matrix of data x is available. Here, we also have the true noise covariance matrix covar and the original signals x_orig. These signals are noisy versions of simple combinations of the two original signals. The first signal is "Blocks" which is irregular, and the second one is "HeavySine" which is regular, except around time 750. The other two signals are the sum and the difference of the two original signals, respectively. Multivariate Gaussian white noise exhibiting strong spatial correlation is added to the resulting four signals, which produces the observed data stored in x.

Displaying the Original and Observed Signals

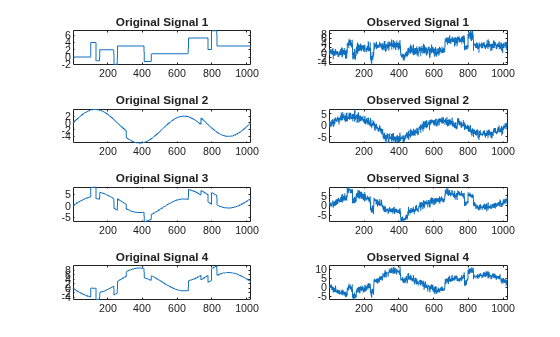

To display the original and observed signals, type:

kp = 0;
for i = 1:4
    subplot(4,2,kp+1), plot(x_orig(:,i)); axis tight;
    title(['Original signal ',num2str(i)])
    subplot(4,2,kp+2), plot(x(:,i)); axis tight;
    title(['Observed signal ',num2str(i)])
    kp = kp + 2;
end

The true noise covariance matrix is given by:

covar

covar = 4×4

    1.0000    0.8000    0.6000    0.7000
    0.8000    1.0000    0.5000    0.6000
    0.6000    0.5000    1.0000    0.7000
    0.7000    0.6000    0.7000    1.0000

Removing Noise by Simple Multivariate Thresholding

The denoising strategy combines univariate wavelet denoising in the basis, where the estimated noise covariance matrix is diagonal with noncentered Principal Component Analysis (PCA) on approximations in the wavelet domain or with final PCA.

First, perform univariate denoising by typing the following lines to set the denoising parameters:

level = 5;
wname = 'sym4';
tptr  = 'sqtwolog';
sorh  = 's';

Then, set the PCA parameters by retaining all the principal components:

npc_app = 4;
npc_fin = 4;

Finally, perform multivariate denoising by typing:

x_den = wmulden(x, level, wname, npc_app, npc_fin, tptr, sorh);

Displaying the Original and Denoised Signals

To display the original and denoised signals type the following:

clf
kp = 0;
for i = 1:4
    subplot(4,3,kp+1), plot(x_orig(:,i)); axis tight;
    title(['Original signal ',num2str(i)])
    subplot(4,3,kp+2), plot(x(:,i)); axis tight;
    title(['Observed signal ',num2str(i)])
    subplot(4,3,kp+3), plot(x_den(:,i)); axis tight;
    title(['Denoised signal ',num2str(i)])
    kp = kp + 3;
end

Improving the First Result by Retaining Fewer Principal Components

We can see that, overall, the results are satisfactory. Focusing on the two first signals, note that they are correctly recovered, but we can improve the result by taking advantage of the relationships between the signals, leading to an additional denoising effect.

To automatically select the numbers of retained principal components using Kaiser's rule, which retains components associated with eigenvalues exceeding the mean of all eigenvalues, type:

npc_app = 'kais';
npc_fin = 'kais';

Perform multivariate denoising again by typing:

[x_den, npc, nestco] = wmulden(x, level, wname, npc_app, ...
     npc_fin, tptr, sorh);

Displaying the Number of Retained Principal Components

The second output argument npc is the number of retained principal components for PCA for approximations and for final PCA.

npc

npc = 1×2

     2     2

As expected, because the signals are combinations of two original signals, Kaiser's rule automatically detects that only two principal components are of interest.

Displaying the Estimated Noise Covariance Matrix

The third output argument nestco contains the estimated noise covariance matrix:

nestco

nestco = 4×4

    1.0784    0.8333    0.6878    0.8141
    0.8333    1.0025    0.5275    0.6814
    0.6878    0.5275    1.0501    0.7734
    0.8141    0.6814    0.7734    1.0967

As it can be seen by comparing it with the true matrix covar given previously, the estimation is satisfactory.

Displaying the Original and Final Denoised Signals

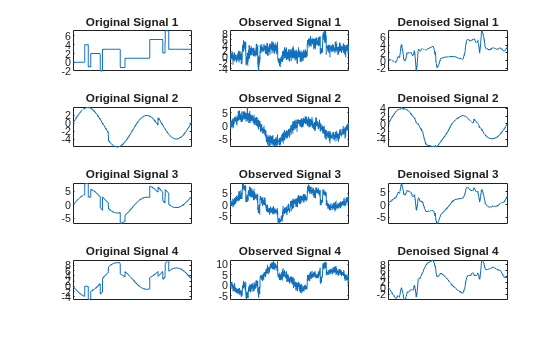

To display the original and final denoised signals type:

kp = 0;
for i = 1:4
    subplot(4,3,kp+1), plot(x_orig(:,i)); axis tight;
    title(['Original signal ',num2str(i)])
    subplot(4,3,kp+2), plot(x(:,i)); axis tight;
    title(['Observed signal ',num2str(i)])
    subplot(4,3,kp+3), plot(x_den(:,i)); axis tight;
    title(['Denoised signal ',num2str(i)])
    kp = kp + 3;
end

These results are better than those previously obtained. The first signal, which is irregular, is still correctly recovered, while the second signal, which is more regular, is better denoised after this second stage of PCA.

Learning More About Multivariate Denoising

You can find more information about multivariate denoising, including some theory, simulations, and real examples, in the following reference:

M. Aminghafari, N. Cheze and J-M. Poggi (2006), "Multivariate denoising using wavelets and principal component analysis," Computational Statistics & Data Analysis, 50, pp. 2381-2398.
