Chapter 2

Using AI to Design and Deploy Embedded Algorithms

Using a traditional approach to algorithm development, you’d write a program that processes input to produce a desired output. But sometimes the equations are too complex to derive from first principles, too computationally intensive to be deployed, or a desired measurement is impossible or too costly to make physically.

In these cases, consider creating an AI model instead. Embedded AI algorithms can support:

Create an AI Virtual Sensor: Battery State-of-Charge Estimation Example

Lithium-ion batteries are everywhere today, from wearable electronics, mobile phones, and laptops to electric vehicles and smart grids. Battery management systems (BMS) ensure safe and efficient operation of these batteries. A key task of the BMS is to estimate the state of charge (SoC).

A tempting choice is to estimate SoC using an extended Kalman filter (EKF). An EKF can be extremely accurate, but it requires having a nonlinear mathematical model of a battery, which is not always available or feasible to create. A Kalman filter can also be computationally expensive and, if an initial state is wrong or of the model is not correct, it can produce inaccurate results.

An alternative is to develop a virtual sensor using AI. AI might be able to generalize better than a Kalman filter and provide accurate results if it is trained with the right data.

To create an AI-based virtual sensor, you’ll need data to train your AI model. By collecting battery readings in a controlled environment in the lab, you can accurately compute SoC values by integrating the currents (a technique called Coulomb counting).

This method is also simple and computationally cheap. Why not use it in your BMS to estimate SoC? But it is error-prone if it is not performed in a laboratory environment, where current can be measured accurately, so it is not a good choice for use in your BMS to estimate SoC. It is, however, an effective way to get the data needed to build a robust virtual sensor.

Once you have collected your precisely obtained input/output data, you can use that data set to train an AI-based virtual sensor model that can be deployed as part of the battery management system.

There are three options for creating and integrating an AI model into Simulink:

The AI model has the advantage that it is trained directly on measured data. The training data captures the complex relationships between the state of charge and inputs such as current, voltage, temperature, and the moving average of current and temperature, baking the intelligence into the model.

As a result, the AI model could be both faster and more accurate than a first principles–based mathematical model.

Once you have made an investment in the creation of a high-quality training data set, you can use MATLAB^® or other tools to create several AI models using different machine learning or deep learning techniques. You can find out which of the models performs best by integrating them into Simulink and evaluating them side by side.

A note on obtaining data

Collecting good training data is a very hard task. In the field of AI, publicly available data sets have boosted AI research. By using the same data sets, researchers can easily make comparisons and perform benchmarks on different AI techniques. Shared data sets and models are facilitating reproducibility and building trust in AI.

In industry, however, data often comes from carefully curated data sets, sometimes produced by specialized real-world test beds or complex high-fidelity simulations based on first principles. These experiments can be costly and time-consuming, but the value of a well-trained AI model can be worth the upfront investment. Engineers with domain expertise can add value during AI model creation by designing experiments that produce high-quality training data.

Simulate and test the AI-based virtual sensor

Once you have trained your AI models, you can integrate them into Simulink and test them. Using Simulink, you can find out which AI model performs the best and determine if it outperforms other alternatives, such as the non-AI-based EKF approach. As noted earlier, the Kalman filter requires having an internal battery model, which might not be available.

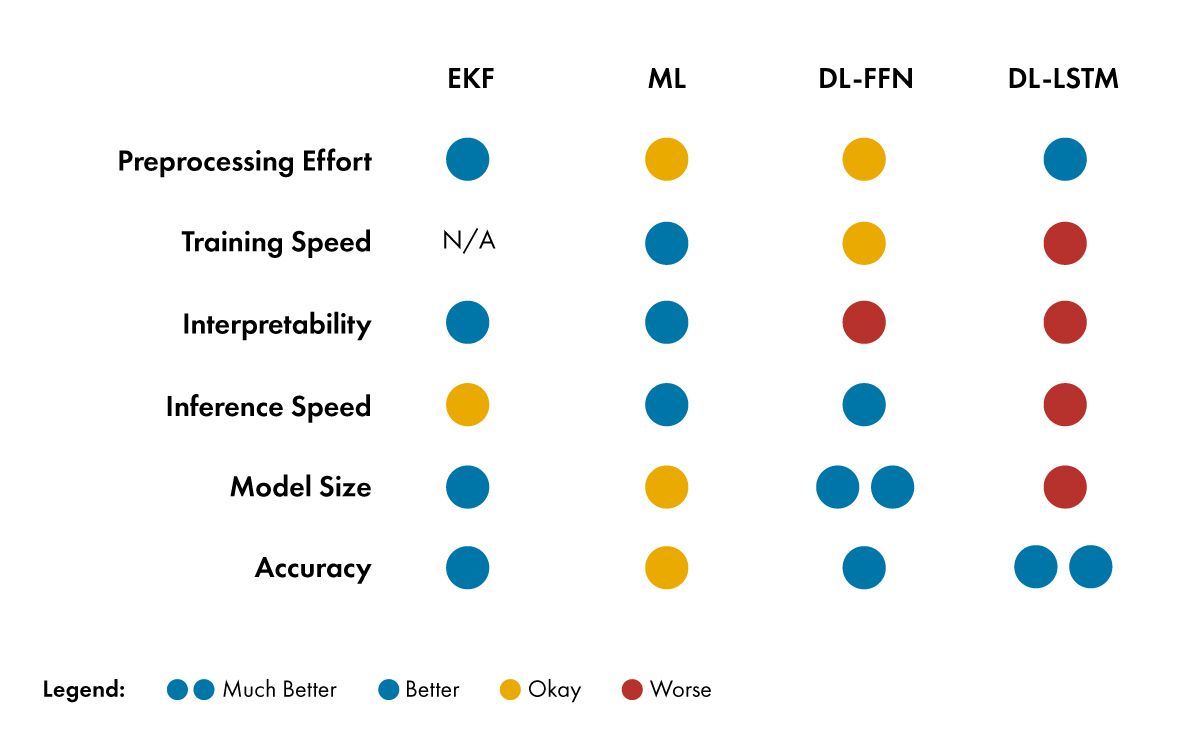

This example includes an EKF plus three AI models, all trained with the same data but using different AI approaches:

The next step is testing your AI model on the hardware it will eventually be deployed on. During this step, you can complete a real-world evaluation of model performance.

Use MATLAB and Simulink code generation tools to generate library-free C/C++ code for deep learning networks or machine learning models. Deploy that code onto your processor to test its operation as part of a processor-in-the-loop (PIL) test where the processor is interconnected with the simulated plant (developed with Simscape™ and Simscape Electrical™ components), which in this case is the simulated battery dynamics.

After passing PIL testing, the model is ready to be deployed to production hardware. That hardware will run the battery management system in the vehicle.

PIL testing reveals performance tradeoffs that will be relevant to your real-world system. For instance, while the fine regression tree model adds interpretability that might aid in troubleshooting, its size and accuracy might not be within the scope of the project requirements. In that case, a feed-forward network might be a better option.

Other relevant attributes are:

• Inference speed, which is the time it takes for the AI model to compute a prediction
• Training speed, which is the time it takes to train the AI model using your training data
• Preprocessing effort, as certain models require computing additional features, such as moving averages, to obtain predictor information about the past

Model compression is a tradeoff that requires analysis, understanding, iteration, and optimization. But for embedded software engineers, it is often a necessity because in some cases, an AI model will have a footprint that exceeds the memory constraints of the hardware.

Engineers are exploring ways to reduce model footprints with techniques like pruning, quantization, and fixed-point conversion techniques.

A novel method for reducing model size in Deep Learning Toolbox™ compresses a deep learning network using projection. This technique allows us to make a tradeoff between model size, inference speed, and accuracy. For this example, there was no significant loss in accuracy. Compression using projected layers reduced the memory footprint by 91% and doubled the inference speed.

One company, Gotion, which focuses on next-generation energy storage technology, wanted to create a neural network model for estimating state of charge during electric vehicle charging. The model needed to be accurate within a margin of 3% and have a small enough footprint to be feasible for production deployment. The model also needed to be verified in an onboard vehicle test.

Deep Learning Toolbox provided the team with a low-code approach to training a neural network using historical cell-charging data. They used an iterative workflow to simulate, improve, and validate the model. With Simulink, the engineers integrated and tested the model with the rest of the system. They used Simulink Test™ to validate that the model met accuracy requirements during simulation.

When satisfied with the model’s performance, they automatically generated code for HIL testing and onboard vehicle testing.

Engineers noted these key benefits of using MATLAB and Simulink:

• Integration of AI into their existing verification and validation workflow using Requirements Toolbox, Deep Learning Toolbox, Simulink, Embedded Coder, and Simulink Test
• Performance of complete workflow from requirements capture to model development, system integration, model deployment, and production hardware
• Confidence through simulation and HIL testing that the model would meet accuracy requirements before deployment
• Automatically generated code from the neural network with a small footprint (<2 KB ROM, <100 B RAM)
