generatePatches

Class: Aero.Body
Namespace: Aero

Generate patches for body with loaded face, vertex, and color data

Syntax

generatePatches(h,ax)

generatePatches(h,ax) generates patches for the animation body object h using the loaded face, vertex, and color data in axes object, ax.

Aerospace body object, specified as an Aero.Body object.

Axes object.

Generate patches for the body object b using the axes, ax.

b=Aero.Body;
b.load('pa24-250_orange.ac','Ac3d');
f = figure;
ax = axes;
b.generatePatches(ax);

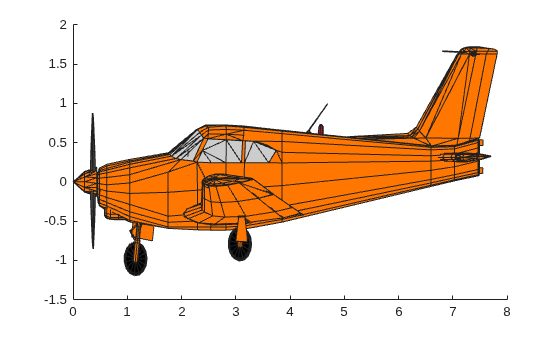

Figure contains an axes object. The axes object contains 97 objects of type patch.

Introduced in R2007a
