createAntenna

Create dual-reflector antenna for full-wave analysis

Since R2026a

collapse all in page

    Syntax

    ant = createAntenna(obj,freq)

    Description

    ant = createAntenna(obj,freq) creates a customDualReflectors antenna object from the parabolic reflector, operating at the specified frequency.

    example

    Examples

    collapse all

    Open Live Script

    Design a horn-fed offset parabolic reflector antenna with a diameter of 1 m, focal length 0.9 m, clearance height 0.1 m, radiator aperture 68 mm, and surface error 1 mm.

    ant = reflectorCalculator(Diameter=1,FocalLength=0.9,ClearanceHeight=0.1, ...
    RadiatorAperture=0.068,SurfaceError=1e-3)
    ant =
  reflectorCalculator with properties:

            Diameter: 1
         FocalLength: 0.9000
     ClearanceHeight: 0.1000
            FeedType: 'singlefed'
    RadiatingElement: 'horn'
    RadiatorAperture: 0.0680
           ScanAngle: 1
        SurfaceError: 1.0000e-03
            FeedLoss: 0

    Create a customDualReflectors object for the full-wave analysis.

    cd = createAntenna(ant,10e9)
    cd =
  customDualReflectors with properties:

             Exciter: [1×1 horn]
       MainReflector: [166×3 triangulation]
        SubReflector: []
     ReflectorOffset: [0 0 0]
          FeedOffset: [0.9710 0 -0.0679]
       ReflectorTilt: 0
    RemeshReflectors: 1
                Tilt: 0
            TiltAxis: [1 0 0]
                Load: [1×1 lumpedElement]
          SolverType: 'MoM-PO'

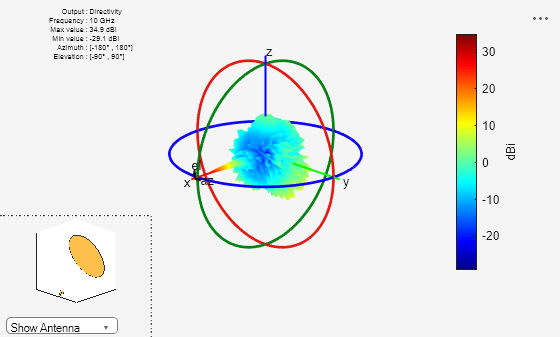

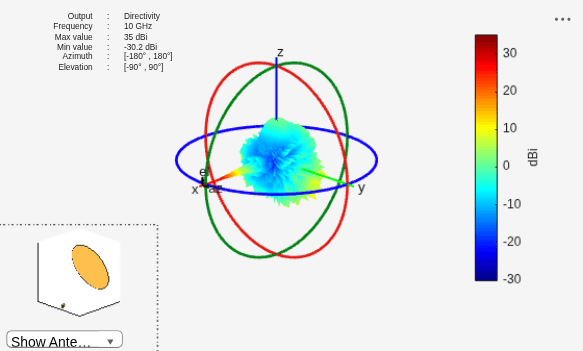

    Plot its radiation pattern at 10 GHz.

    figure
pattern(cd,10e9)

    Figure contains 2 axes objects and other objects of type uicontrol. Axes object 1 contains 5 objects of type patch, surface. Hidden axes object 2 contains 18 objects of type surface, line, text, patch.

    Input Arguments

    collapse all

    Parabolic reflector antenna, specified as a reflectorCalculator object.

    Example: reflectorCalculator

    Operating frequency of the dual-reflector antenna, specified as a positive scalar.

    Example: 10e9

    Data Types: double

    Output Arguments

    collapse all

    Dual-reflector antenna, returned as a customDualReflectors object.

    Version History

    Introduced in R2026a
