showFaces

Show face numbers of box

Since R2023b

collapse all in page

    Syntax

    showFaces(shape)

    Description

    showFaces(shape) shows the face number on box faces.

    example

    Examples

    collapse all

    Open Live Script

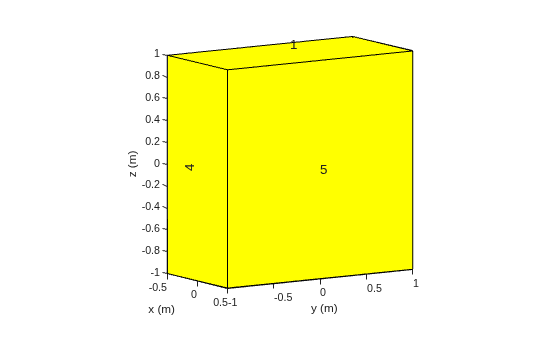

    Create a Box and visualize the face numbers.

    sh = shape.Box;
showFaces(sh);

    Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 8 objects of type patch, text.

    Input Arguments

    collapse all

    Box to show face numbers, specified as a shape.Box object.

    Example: shape.Box

    Version History

    Introduced in R2023b
