Analyze Electromagnetic Interference from Shielding Enclosures

This example shows how to model shielding enclosures and analyze electromagnetic interference from slots or apertures in the enclosure excited by the interior sources. Enclosure and the interior source is modeled using custom 3-D shapes and performance is evaluated at a particular distance away from the setup. The integrity of shielding enclosures for high-speed digital designs is compromised by slots and apertures for heat dissipation, CD-ROMs, input/output (I/O) cable penetration, and plate-covered unused connector ports among other possibilities. An understanding of energy coupling mechanisms to and from the enclosure as well as an experimentally demonstrated modeling approach is essential in minimizing the EMI and susceptibility risk in a new design.[1]

Define Enclosure and Slot Dimensions

Define the enclosure and slot dimensions in meters.

enclosureLength = 220e-3;
enclosureWidth = 300e-3;
enclosureHeight = 140e-3;
slotLength = 2e-3;
slotWidth = 120e-3;

Create Shielding Enclosure

Create a box with shape.Box shape using the defined enclosure dimensions.

box = shape.Box(Length=enclosureLength, Width=enclosureWidth, Height=enclosureHeight);

Create another box with slot dimensions. Subtract the slot shape from the enclosure box shape to get the final shielding enclosure shape.

slot = shape.Box(Length=enclosureLength/2, Width=slotWidth, Height=slotLength, Color="r");
box.Transparency = 0.3;
[~] = translate(slot,[enclosureLength/2 0 -50e-3]);
boxEnclosure = box - slot;
[~] = translate(boxEnclosure,[0 0 40e-3]);
show(boxEnclosure);

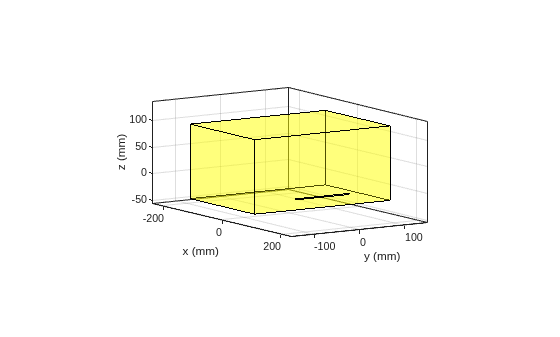

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch.

Create Source Feed-Probe

Create a circular feed-probe using shape.Circle and performing extrude operation on the box enclosure. It spans from top of the box where the feed is attached to the slot.

feed = shape.Circle(Radius=0.8e-3, Center=[0.05 0], NumPoints=20, Color="r");
[~] = translate(feed,[0 0 -0.11]);
[~] = rotateY(boxEnclosure,180);
antShape = extrude(boxEnclosure,feed,Height=0.12);
[~] = rotateY(antShape,180);
show(antShape)

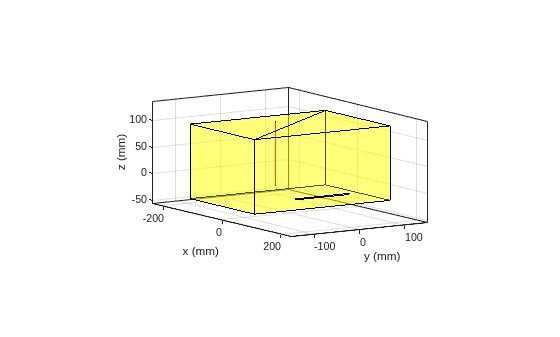

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 3 objects of type patch.

Create a custom antenna with the enclosure shape and visualize it.

ant = customAntenna(Shape=antShape);
[~] = createFeed(ant,[-0.05 0 0.11],20);
show(ant);

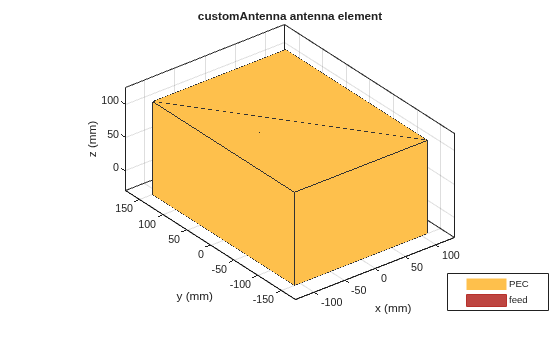

Figure contains an axes object. The axes object with title customAntenna antenna element, xlabel x (mm), ylabel y (mm) contains 3 objects of type patch, surface. These objects represent PEC, feed.

Analyze Enclosure Setup

Calculate E-H fields at a distance of 3m along the x-axis from the enclosure setup.

[E,H] = EHfields(ant,linspace(0.7e9,1.6e9,100),[3 0 0]');

Calculate the E-field magnitude.

Et = abs(E);
Et = sqrt(Et(1,:).^2+Et(2,:).^2+Et(3,:).^2);

Plot the E-field magnitude against 700 MHz to 1.6 GHz frequency range.

plot(linspace(0.7e9,1.6e9,100),10*log10(Et./1e-6));
xlabel("Frequency(Hz)");
ylabel("|E|dBuV/m");

Figure contains an axes object. The axes object with xlabel Frequency(Hz), ylabel |E|dBuV/m contains an object of type line.

Conclusion

As seen from the E-field magnitude plot across the 700 MHz to 1.6 GHz frequency range, electromagnetic interference is significant when the larger dimension of the slot is comparable to half-wavelength at the respective frequency.

References

[1] Min Li, J. Nuebel, J.L. Drewniak, R.E. DuBroff, T.H. Hubing, and T.P. Van Doren. “EMI from Cavity Modes of Shielding Enclosures-FDTD Modeling and Measurements.” IEEE Transactions on Electromagnetic Compatibility 42, no. 1 (February 2000): 29–38. https://doi.org/10.1109/15.831702.
